Assist Level Selection; Switching The Lighting On/Off; Power Indication; Error Code Indication - Key-Disp KD68C User Manual

◆Assist Level options
Press the UP/DOWN to increase or decrease until the desired assistance level
is displayed. The default power ranges from level "1" to level "3". Level "1" is the
minimum power. Level "3" is the maximum power. The default value is level "1".

◆Switching the Lighting On/Off

To switch on the display backlight and headlight of the E-bike, hold the UP button
for 2s.
In the same way to hold the UP button for 2s again, the backlight and the headlight
will be switched off.

◆Power indication

Through the display can know the
figure below, each grid represents the power of 60W.

◆Error Code Indication

If there are errors about the electronic control system, the error code will appear
automatically. The messages of the error code refer to Attached list 1 .

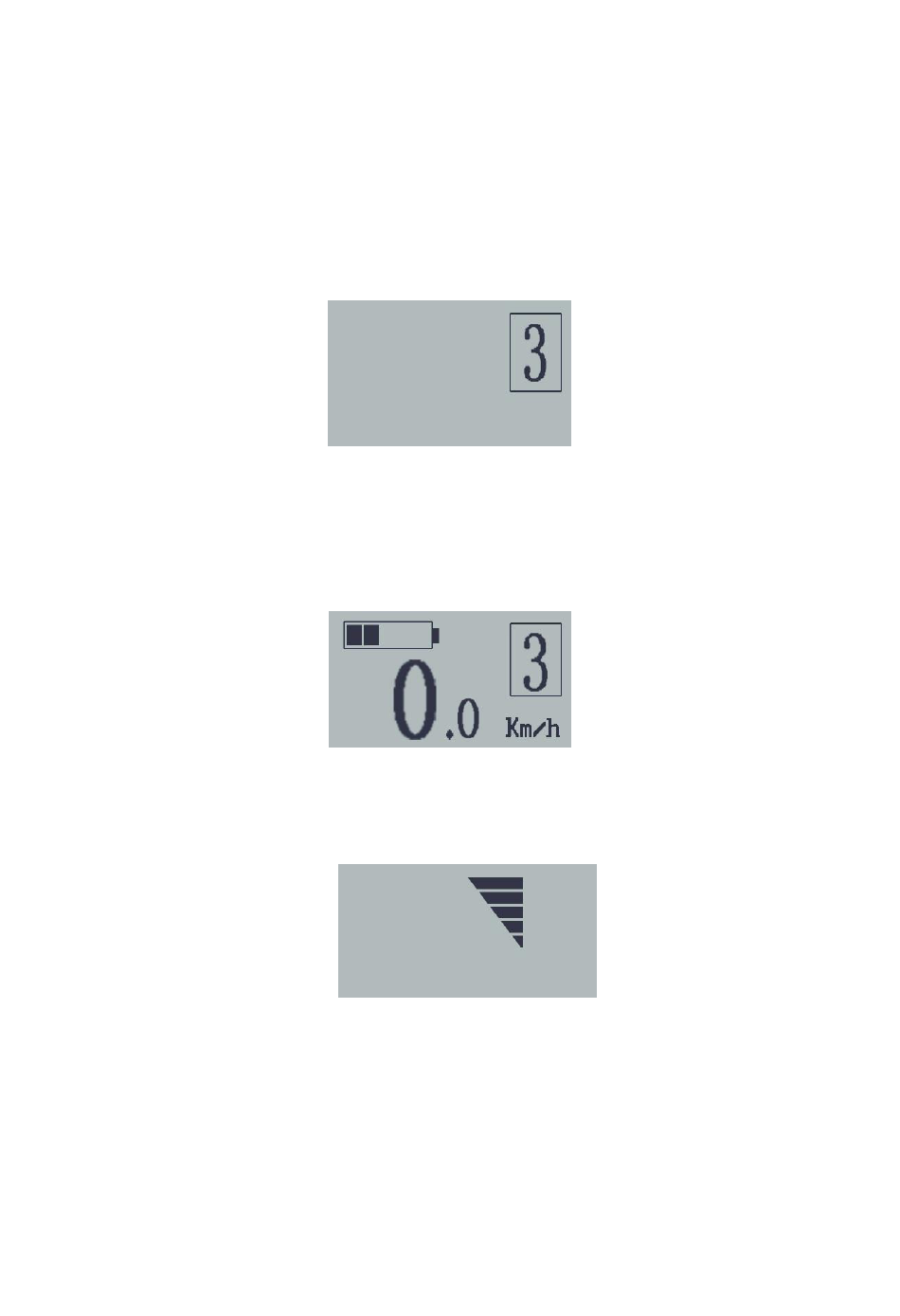

Assist Level "3"
Switch On/Off the Lighting
power of the motor. The display is shown in the
Power of the motor
4
