◆Power Assistant Level Settings
Power Assistant Level Mode option(*this function is not applicable to a scooter)
Power Set represents power assist level settings. In assistance level settings, there
are 8 modes for your options: 0-3, 1-3, 0-5, 1-5, 0-7, 1-7, 0-9, 1-9. The default mode is 1-
3.
To select the mode of power assist level, press UP/DOWN to increase or decrease
the values until the desired mode is displayed.
To store a changed setting and access the PAS ratio settings page, press ON/OFF
button.
PAS Ratio Settings( *this function is not suitable for scooter)
PAS ratio setting matches the different requirements. For example, the range is "45-
55 percent" for level 1, ratio value can be changed and the default ratio is 50 percent.
Press UP or DOWN button to increase or decrease the number. Press ON/OFF
button to confirm and move to the next PAS level ratio settings. Level 9 is the maximum.
After all PAS ratios are input, press ON/OFF button to confirm and return to personalized
parameter settings interface. For PAS ratio default values, please refer to Attached list 2.

◆Controller Over-Current Cut Settings

Current Set represents controller over-current cut settings. It can be changed from
7.0A to 25.0A. The default value is 15A.

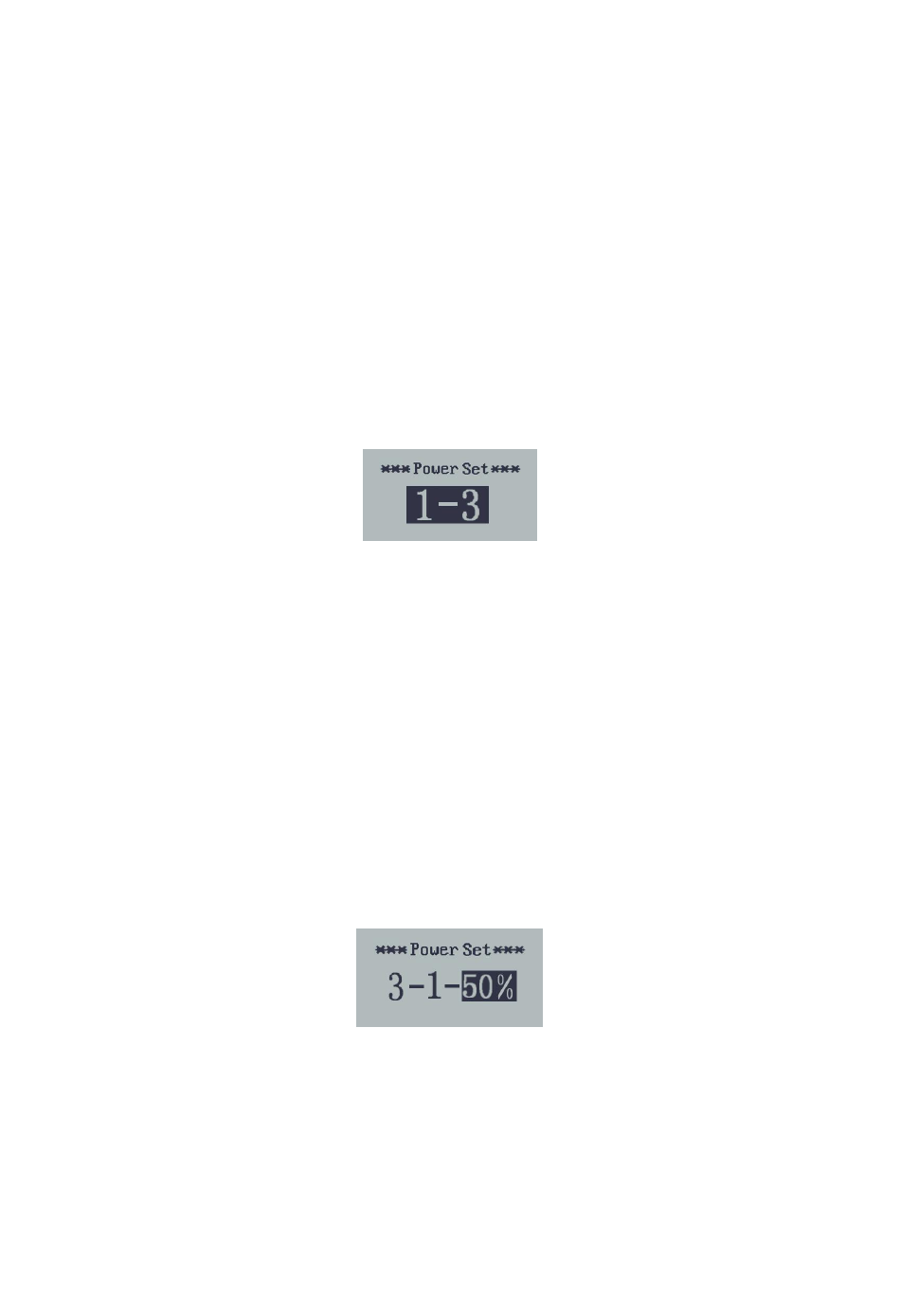

PAS mode option Interface
PAS Ratio Interface
