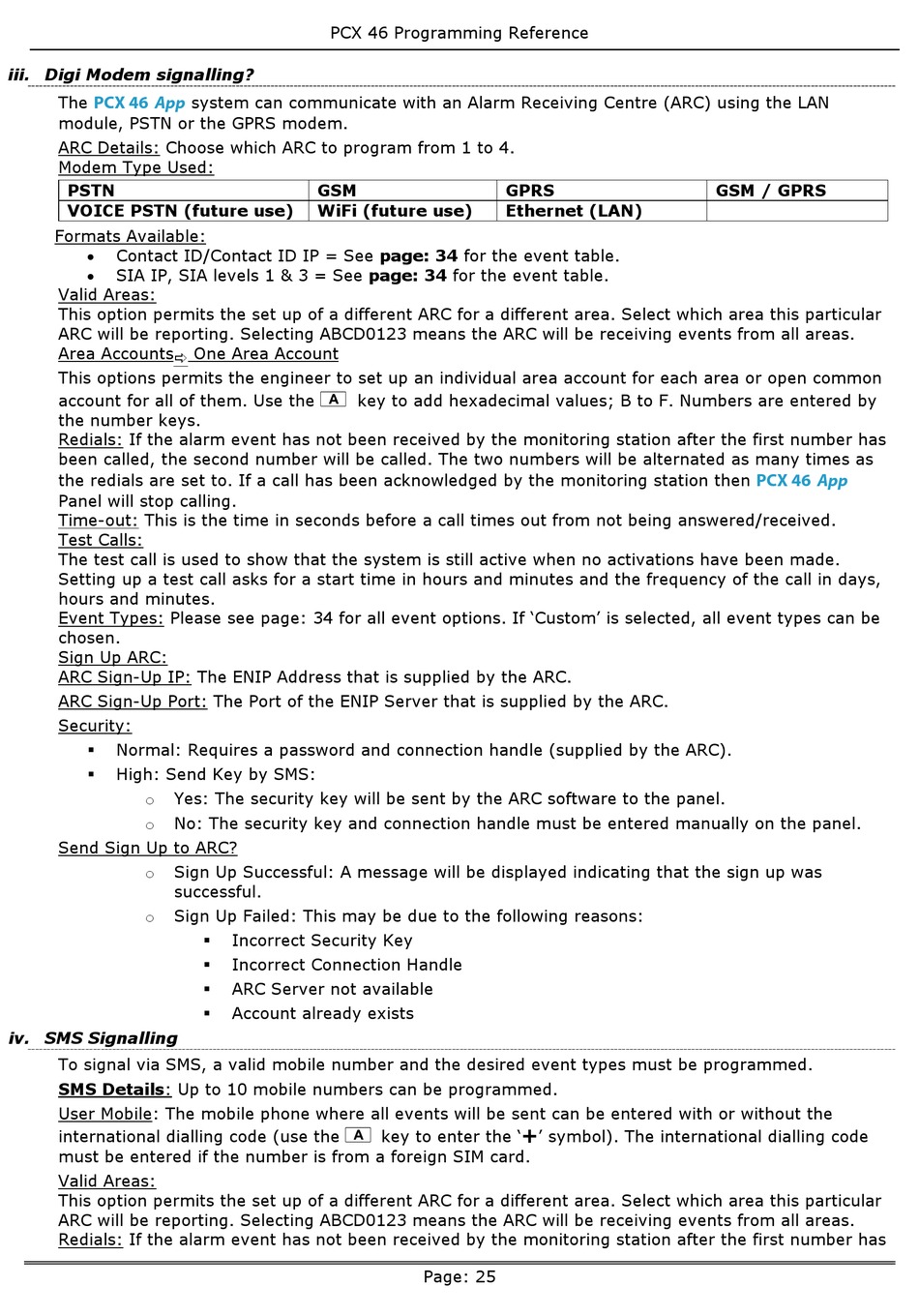

Pyronix PCX 46 App Programming Reference Manual page 25

iii. Digi Modem signalling?
The
PCX 46 App
module, PSTN or the GPRS modem.
ARC Details: Choose which ARC to program from 1 to 4.
Modem Type Used:
PSTN
VOICE PSTN (future use)
Formats Available:
 Contact ID/Contact ID IP = See page: 34 for the event table.
 SIA IP, SIA levels 1 & 3 = See page: 34 for the event table.
Valid Areas:
This option permits the set up of a different ARC for a different area. Select which area this particular
ARC will be reporting. Selecting ABCD0123 means the ARC will be receiving events from all areas.
Area Accounts  One Area Account
This options permits the engineer to set up an individual area account for each area or open common
account for all of them. Use the a key to add hexadecimal values; B to F. Numbers are entered by
the number keys.
Redials: If the alarm event has not been received by the monitoring station after the first number has
been called, the second number will be called. The two numbers will be alternated as many times as
the redials are set to. If a call has been acknowledged by the monitoring station then
Panel will stop calling.
Time-out: This is the time in seconds before a call times out from not being answered/received.
Test Calls:
The test call is used to show that the system is still active when no activations have been made.
Setting up a test call asks for a start time in hours and minutes and the frequency of the call in days,
hours and minutes.
Event Types: Please see page: 34 for all event options. If 'Custom' is selected, all event types can be
chosen.
Sign Up ARC:
ARC Sign-Up IP: The ENIP Address that is supplied by the ARC.
ARC Sign-Up Port: The Port of the ENIP Server that is supplied by the ARC.
Security:
Normal: Requires a password and connection handle (supplied by the ARC).

High: Send Key by SMS:

Yes: The security key will be sent by the ARC software to the panel.
o
No: The security key and connection handle must be entered manually on the panel.
o
Send Sign Up to ARC?
Sign Up Successful: A message will be displayed indicating that the sign up was
o
successful.
Sign Up Failed: This may be due to the following reasons:
o
iv. SMS Signalling
To signal via SMS, a valid mobile number and the desired event types must be programmed.
SMS Details: Up to 10 mobile numbers can be programmed.
User Mobile: The mobile phone where all events will be sent can be entered with or without the
international dialling code (use the akey to enter the '
must be entered if the number is from a foreign SIM card.
Valid Areas:
This option permits the set up of a different ARC for a different area. Select which area this particular
ARC will be reporting. Selecting ABCD0123 means the ARC will be receiving events from all areas.
Redials: If the alarm event has not been received by the monitoring station after the first number has
PCX 46 Programming Reference
system can communicate with an Alarm Receiving Centre (ARC) using the LAN
GSM
WiFi (future use)
Incorrect Security Key

Incorrect Connection Handle

ARC Server not available

Account already exists

GPRS
Ethernet (LAN)
+
' symbol). The international dialling code
Page: 25
