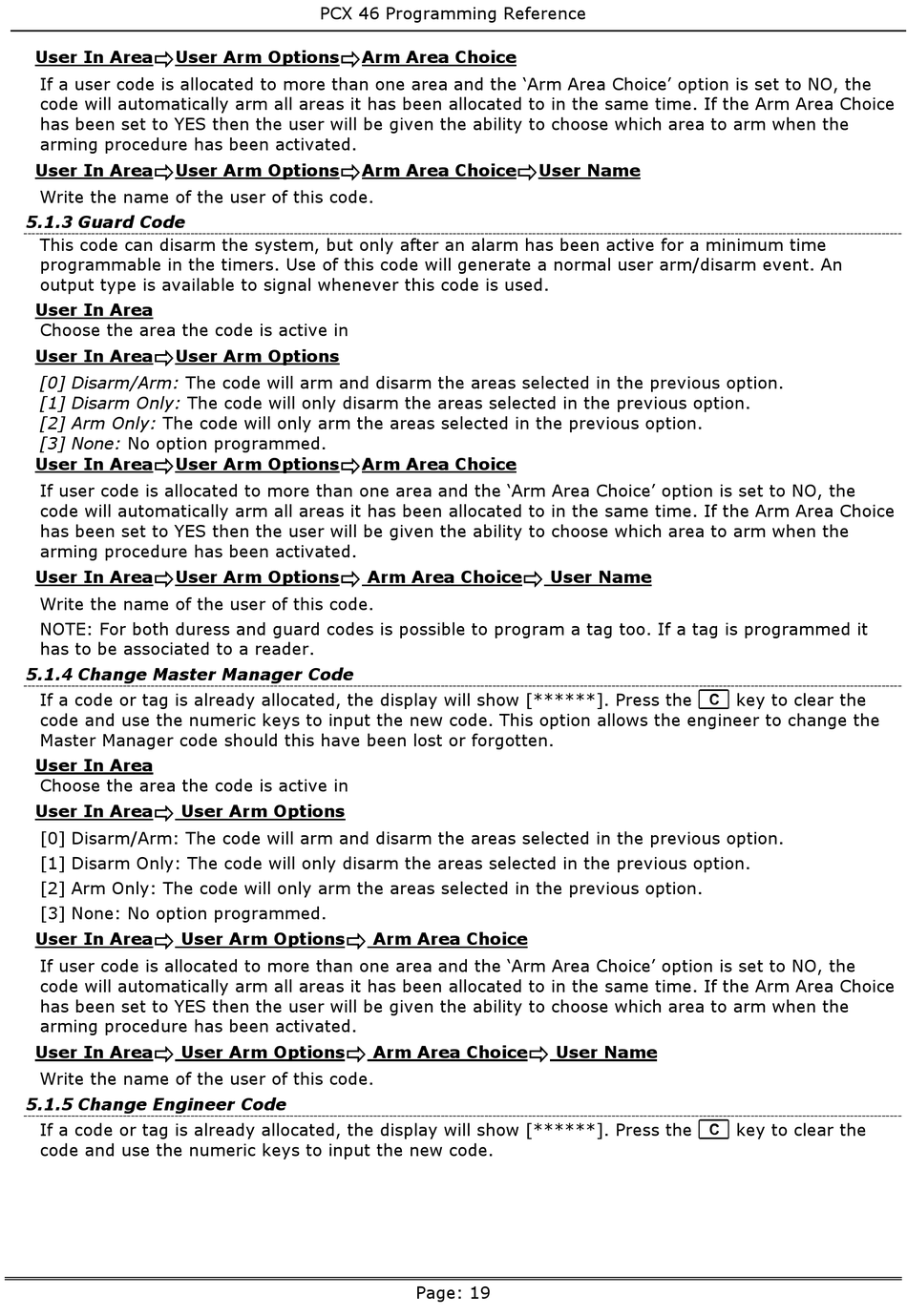

Pyronix PCX 46 App Programming Reference Manual page 19

User In Area  User Arm Options
If a user code is allocated to more than one area and the 'Arm Area Choice' option is set to NO, the
code will automatically arm all areas it has been allocated to in the same time. If the Arm Area Choice
has been set to YES then the user will be given the ability to choose which area to arm when the
arming procedure has been activated.

User In Area User Arm Options
Write the name of the user of this code.
5.1.3 Guard Code
This code can disarm the system, but only after an alarm has been active for a minimum time
programmable in the timers. Use of this code will generate a normal user arm/disarm event. An
output type is available to signal whenever this code is used.
User In Area
Choose the area the code is active in

User In Area User Arm Options
[0] Disarm/Arm: The code will arm and disarm the areas selected in the previous option.
[1] Disarm Only: The code will only disarm the areas selected in the previous option.
[2] Arm Only: The code will only arm the areas selected in the previous option.
[3] None: No option programmed.

User In Area User Arm Options
If user code is allocated to more than one area and the 'Arm Area Choice' option is set to NO, the
code will automatically arm all areas it has been allocated to in the same time. If the Arm Area Choice
has been set to YES then the user will be given the ability to choose which area to arm when the
arming procedure has been activated.

User In Area User Arm Options
Write the name of the user of this code.
NOTE: For both duress and guard codes is possible to program a tag too. If a tag is programmed it
has to be associated to a reader.
5.1.4 Change Master Manager Code
If a code or tag is already allocated, the display will show [******]. Press the  key to clear the
code and use the numeric keys to input the new code. This option allows the engineer to change the
Master Manager code should this have been lost or forgotten.
User In Area
Choose the area the code is active in

User In Area User Arm Options
[0] Disarm/Arm: The code will arm and disarm the areas selected in the previous option.
[1] Disarm Only: The code will only disarm the areas selected in the previous option.
[2] Arm Only: The code will only arm the areas selected in the previous option.
[3] None: No option programmed.

User In Area User Arm Options
If user code is allocated to more than one area and the 'Arm Area Choice' option is set to NO, the
code will automatically arm all areas it has been allocated to in the same time. If the Arm Area Choice
has been set to YES then the user will be given the ability to choose which area to arm when the
arming procedure has been activated.

User In Area User Arm Options
Write the name of the user of this code.
5.1.5 Change Engineer Code
If a code or tag is already allocated, the display will show [******]. Press the  key to clear the
code and use the numeric keys to input the new code.
