Displaying shapes

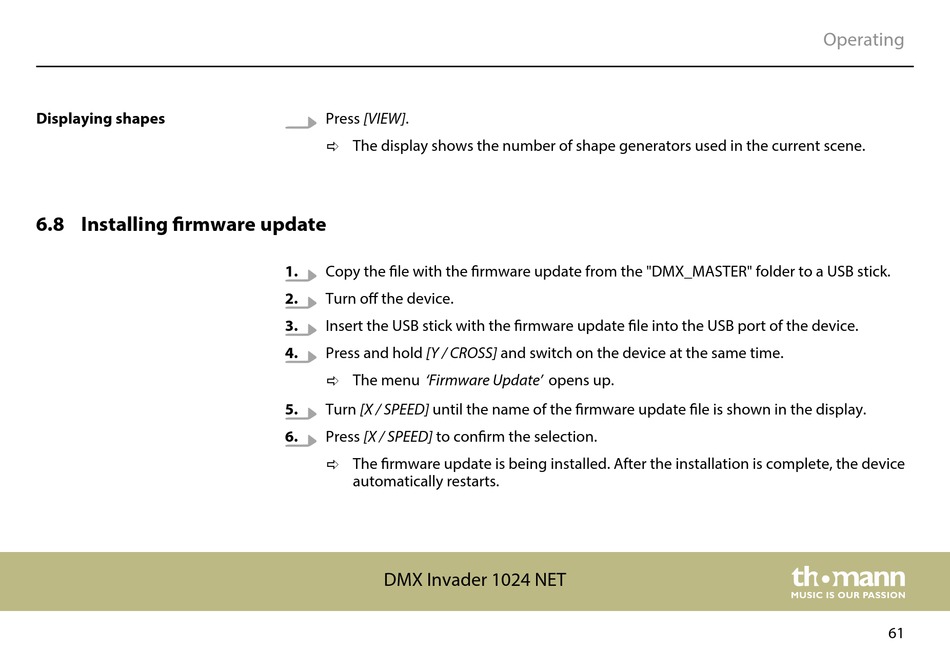

6.8 Installing firmware update

Press [VIEW].
ð The display shows the number of shape generators used in the current scene.
1. Copy the file with the firmware update from the "DMX_MASTER" folder to a USB stick.
2. Turn off the device.
3. Insert the USB stick with the firmware update file into the USB port of the device.
4. Press and hold [Y / CROSS] and switch on the device at the same time.
ð The menu 'Firmware Update' opens up.
5. Turn [X / SPEED] until the name of the firmware update file is shown in the display.
6. Press [X / SPEED] to confirm the selection.
ð The firmware update is being installed. After the installation is complete, the device
automatically restarts.
DMX Invader 1024 NET
Operating
61
