DMX outputs
DMX address and control chan‐
nels

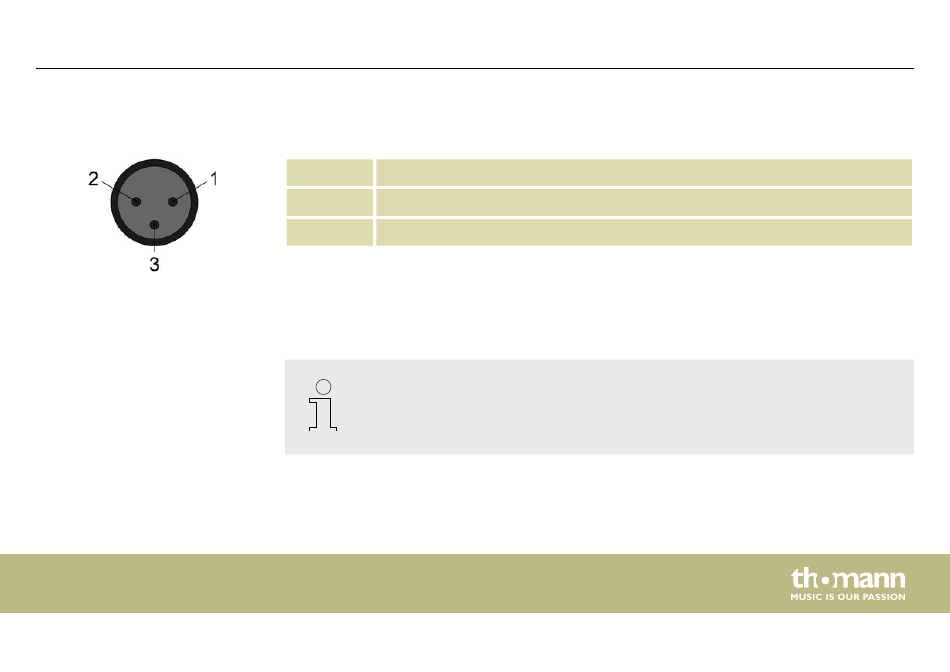

Two three-pin XLR sockets serve as DMX outputs. The following figure and the table show the
pin assignment of the sockets.
1 Ground
2 DMX data (–)
3 DMX data (+)
For each function of a DMX device (e.g., colour, brightness, flash interval, etc.), a dedicated
control channel is provided. The control channels can be assigned to a block of channel faders
on the light control console.
The DMX address defines the number of the first DMX control channel of a device (1 –
512).
