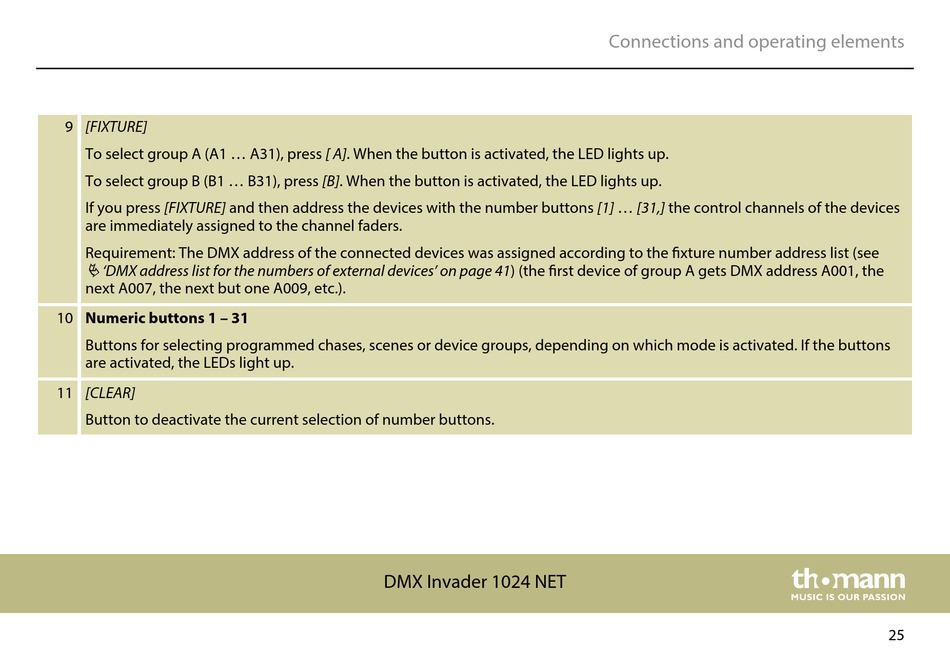

9 [FIXTURE]
To select group A (A1 ... A31), press [ A]. When the button is activated, the LED lights up.
To select group B (B1 ... B31), press [B]. When the button is activated, the LED lights up.
If you press [FIXTURE] and then address the devices with the number buttons [1] ... [31,] the control channels of the devices
are immediately assigned to the channel faders.
Requirement: The DMX address of the connected devices was assigned according to the fixture number address list (see
Ä 'DMX address list for the numbers of external devices' on page 41) (the first device of group A gets DMX address A001, the
next A007, the next but one A009, etc.).
10 Numeric buttons 1 – 31
Buttons for selecting programmed chases, scenes or device groups, depending on which mode is activated. If the buttons
are activated, the LEDs light up.
11 [CLEAR]
Button to deactivate the current selection of number buttons.
