- Page 1 LED Stripe All-in-One Control DMX Controller...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 22.08.2023, ID: 554122...
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................5 1.1 Symbols and signal words................... 5 Safety instructions......................... 6 Features............................7 Installation..........................8 Starting up..........................9 Connections and operating elements................ 10 Operation..........................12 7.1 Main menu........................12 7.2 Menu overview......................15 7.3 Functions in 4-channel DMX mode................ - Page 4 LED Stripe All-in-One Control DMX Controller...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is used to control DMX-controlled LED spotlights. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. -
Page 7: Features

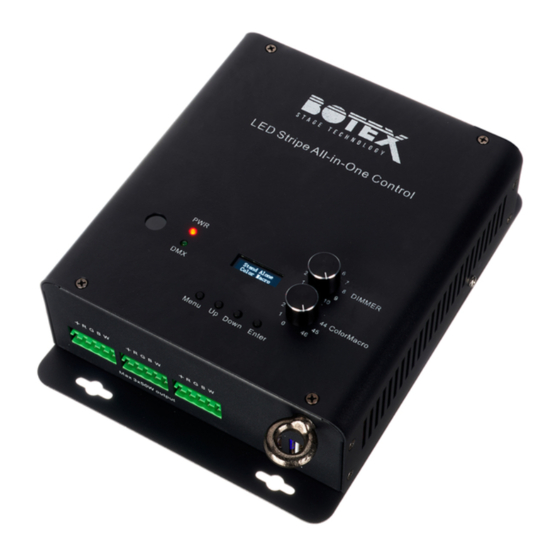

Features Features This device is an all-in-one ballast and control for LED stripes. The device is suitable for 12–24V LED stripes. The device is perfect for permanent installation in bars and clubs. The device offers flexible application options due to different control options. Special features of the device: Holes for wall mounting Actuation via DMX, rotary controls (dimmer and colour macros), remote control... -
Page 8: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. Create all connections while the device is off. -
Page 9: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. -
Page 10: Connections And Operating Elements
Connections and operating elements Connections and operating elements ö & 1 Lockable Power Twist TR1 input socket for the power supply 2 Fuse 3 [DMX IN] | DMX input, 3-pin 4 [DMX OUT] | DMX output, 3-pin 5 Display 6 Operating elements On/off switch | unlabelled [Menu] | Activates the main menu and toggles between menu items. - Page 11 Connections and operating elements [DIMMER] | Dimmer [ColorMacro] | Colour macro ‘PWR’ | LED lights when the device is turned on. ‘DMX’ | LED lights up when DMX is active. 7 USB ports for charging devices 8 5-pin connection blocks for LED stripes 9 IR remote control [Red] | Red colour value, set via + and - [Green] | Green colour value, set via + and -...
-
Page 12: Operation
Operation Operation 7.1 Main menu How to use the main menu To enter the main menu, press [Menu]. To scroll between the individual menu items, press [Up] and [Down]. To exit the menu, press [Menu] again. To exit the menu, press [Menu], or wait 30 seconds. ð... - Page 13 Operation Confirm your selection with [Enter]. ð The desired light intensity is saved. Navigate to ‘Stand Alone è Auto è Program 1 è Speed’. Use [Up] and [Down] to select a value of ‘000’ … ‘255’ . Confirm your selection with [Enter]. ð...
- Page 14 Operation Setting the IR remote control Open the main menu. Navigate to ‘Setting è IR Remote’. Use [Up] and [Down] to select ‘On’ or ‘Off’ . Confirm your selection with [Enter]. ð The remote control is activated (On) or deactivated (Off). Resetting the device to factory defaults Open the main menu.
-
Page 15: Menu Overview
Operation 7.2 Menu overview DMX Address 001-512 DMX mode Program 1 000-255 Program 2 Speed 000-255 Auto Program 3 (no dimmer, dimmer Program 4 via knob) Program 5 Program 6 Sound Mic Sens 00~99 00 - 99 Stand Alone Color Off Color 1 MENU Color Macro... - Page 16 Operation Channel Value Function 0…255 Green 0…255 Blue 0…255 White Strobe 000…005 Strobe open 006…010 Strobe closed 011…033 Random pulse, slow…fast 034…056 Random ramp-up, slow…fast 057…079 Random ramp-down, slow…fast 080…102 Random strobe effect, slow…fast 103…127 Strobe pause effect, 5 s…1 s (short burst with break) 128…250 Strobe from slow…fast (<1 Hz…20 Hz) 251…255...
-
Page 17: Technical Specifications
Technical specifications Technical specifications 50 mm 160 mm Control protocols Number of DMX channels 4 or 9 Input connections DMX control XLR chassis socket, 3-pin Power supply Power Twist Output connections DMX control XLR chassis socket, 3-pin 3 × Connection for LED stripes 5-pin connection blocks (each with max. -
Page 18: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 19: Troubleshooting
DMX interface cir‐ cuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED Stripe All-in-One Control DMX Controller... -
Page 20: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 21 Notes LED Stripe All-in-One Control DMX Controller...
- Page 22 Notes LED Stripe All-in-One Control DMX Controller...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
