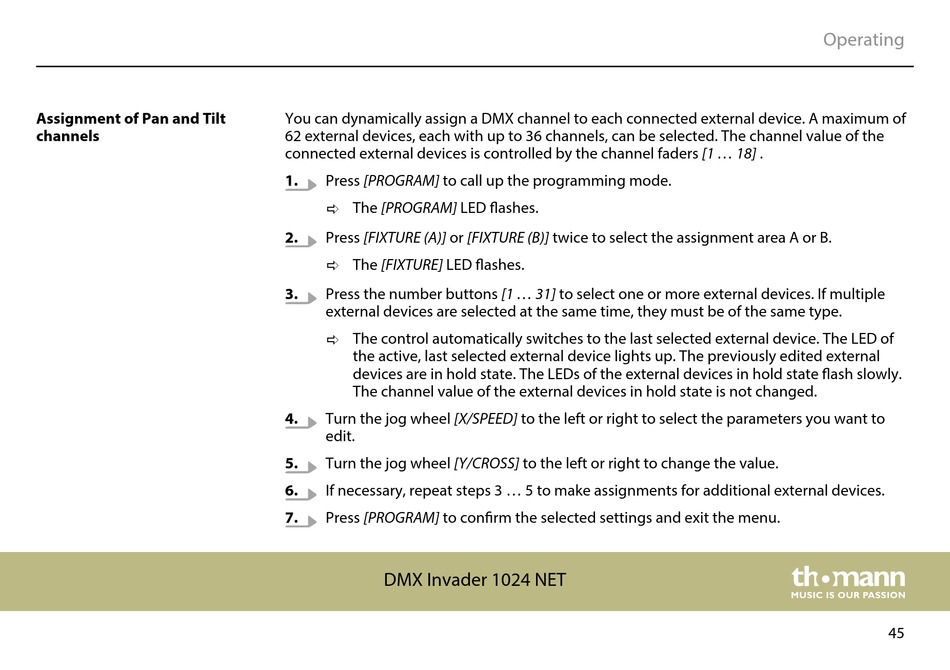

Assignment of Pan and Tilt
channels
You can dynamically assign a DMX channel to each connected external device. A maximum of
62 external devices, each with up to 36 channels, can be selected. The channel value of the
connected external devices is controlled by the channel faders [1 ... 18] .
1. Press [PROGRAM] to call up the programming mode.
ð The [PROGRAM] LED flashes.
2.
Press [FIXTURE (A)] or [FIXTURE (B)] twice to select the assignment area A or B.
ð The [FIXTURE] LED flashes.
3.
Press the number buttons [1 ... 31] to select one or more external devices. If multiple
external devices are selected at the same time, they must be of the same type.
ð The control automatically switches to the last selected external device. The LED of
the active, last selected external device lights up. The previously edited external
devices are in hold state. The LEDs of the external devices in hold state flash slowly.
The channel value of the external devices in hold state is not changed.
4. Turn the jog wheel [X/SPEED] to the left or right to select the parameters you want to
edit.
5.
Turn the jog wheel [Y/CROSS] to the left or right to change the value.
6.
If necessary, repeat steps 3 ... 5 to make assignments for additional external devices.
7. Press [PROGRAM] to confirm the selected settings and exit the menu.
