Description of device parameters
Navigation
Description
Example
Input range
Factory setting
Switching delay time, output 2 (dS2)
Switchback delay time, output 2 (dR2)
68
Display: EF → Switching delay.../Switchback delay...
IO-Link: Parameter → Application → Switch output (OU1) → Switching delay.../Switchback
delay...

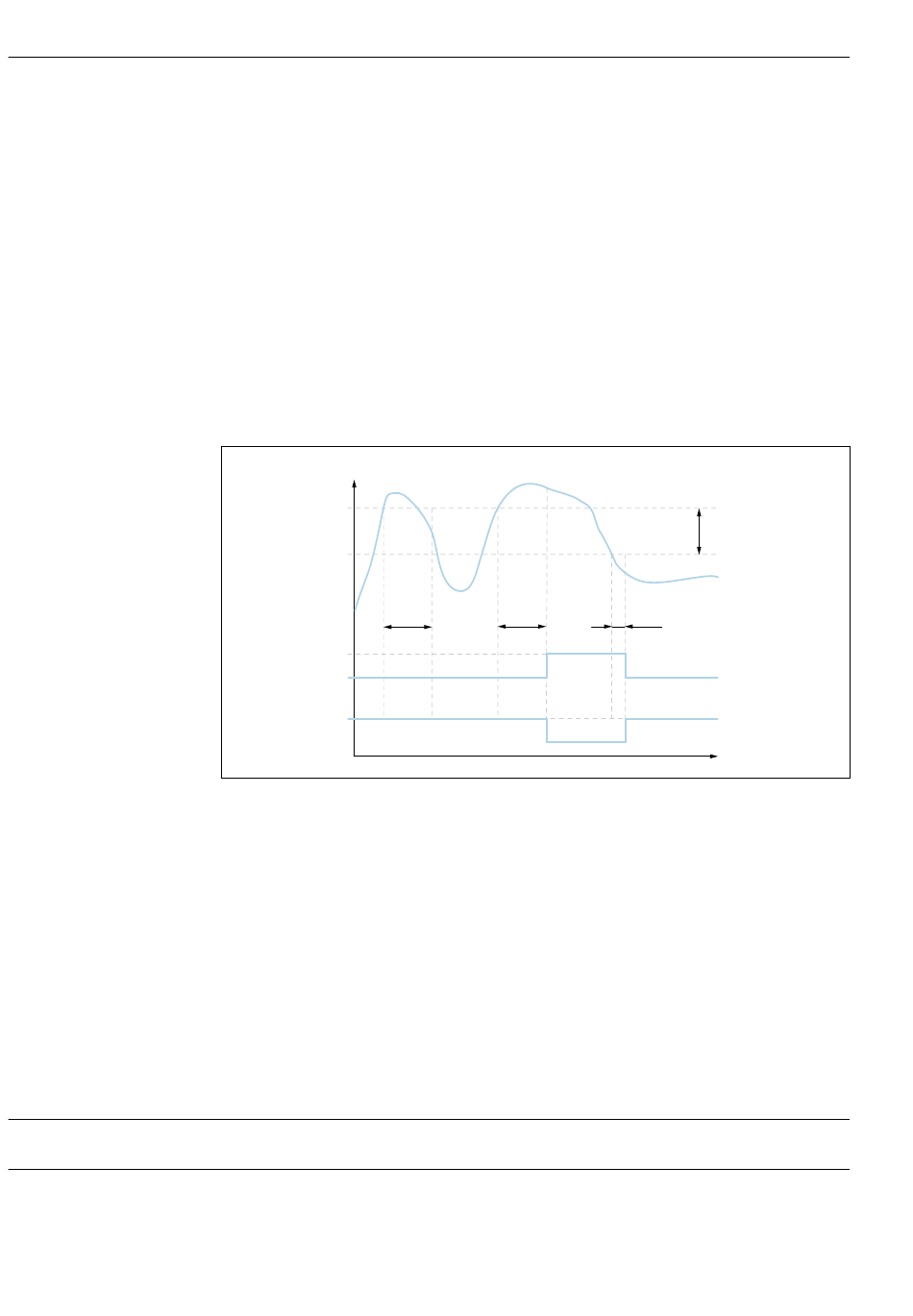

To prevent switch-on and switch-off if values are around the switch point "SP1" or the
switchback point "RP1", a delay in a range of 0 – 50 seconds, to two decimal places, can be
set for the individual points.
If the measured value leaves the switching range during the delay time, the delay time
starts again from scratch.
• SP1 = 2 bar (29 psi)
• RP1 = 1 bar (14.5 psi)
• dS1 = 5 seconds
• dR1 = 2 seconds
dS1/: ≥2 bar (29 psi) must be present for at least 5 seconds for SP1 to become active.
dR1/: ≥1 bar (14.5 psi) must be present for at least 2 seconds for RP1 to become active.
p
SP1
RP1
1
0
1
0
0 0-signal. Output open in quiescent state.
1 1-signal. Output closed in quiescent state.
2 Hysteresis (difference between the value of the switch point "SP1" and the value of the switchback point "RP1")
HNO NO contact
HNC NC contact
SP1 Switch point 1
RP1 Switchback point 1
dS1 Set time for which the specific switch point must be reached continuously without interruption until an
electrical signal change takes place.
dR1 Set time for which the specific switchback point must be reached continuously without interruption until an
electrical signal change takes place.
0.00 - 50.00 seconds
0
Ceraphant PTC31B, PTP31B, PTP33B IO-Link
dS1
dS1
2
dR1
HNO
HNC
t
Endress+Hauser
A0034027
