Accessories
76
16.3

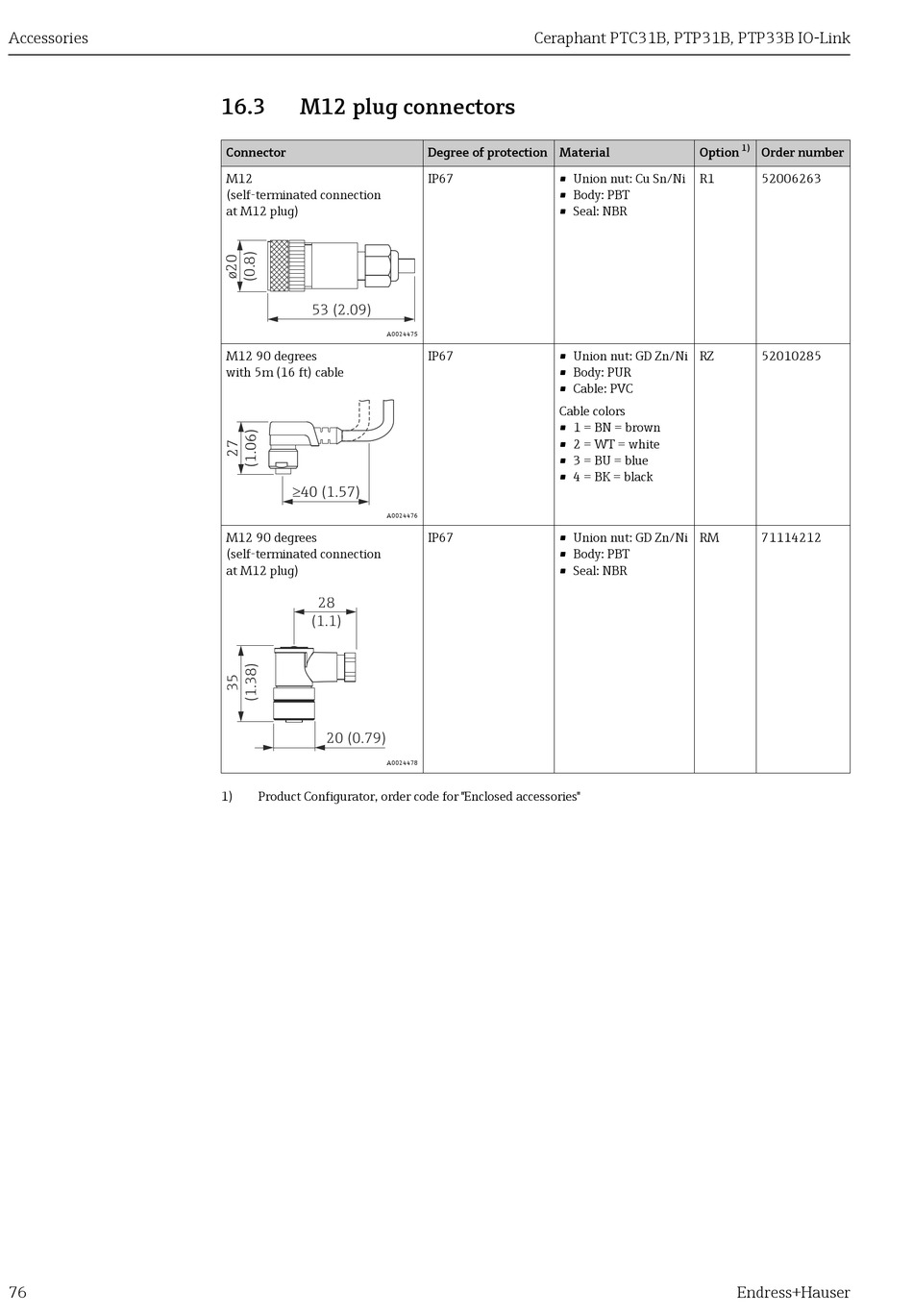

M12 plug connectors

Connector
M12
(self-terminated connection
at M12 plug)
53 (2.09)
A0024475
M12 90 degrees
with 5m (16 ft) cable
40 (1.57)
³
A0024476
M12 90 degrees
(self-terminated connection
at M12 plug)
A0024478
1) Product Configurator, order code for "Enclosed accessories"
Ceraphant PTC31B, PTP31B, PTP33B IO-Link
Degree of protection Material
IP67 • Union nut: Cu Sn/Ni
• Body: PBT
• Seal: NBR
IP67 • Union nut: GD Zn/Ni
• Body: PUR
• Cable: PVC
Cable colors
• 1 = BN = brown
• 2 = WT = white
• 3 = BU = blue
• 4 = BK = black
IP67 • Union nut: GD Zn/Ni
• Body: PBT
• Seal: NBR
1)
Option Order number
R1 52006263
RZ 52010285
RM 71114212
Endress+Hauser
