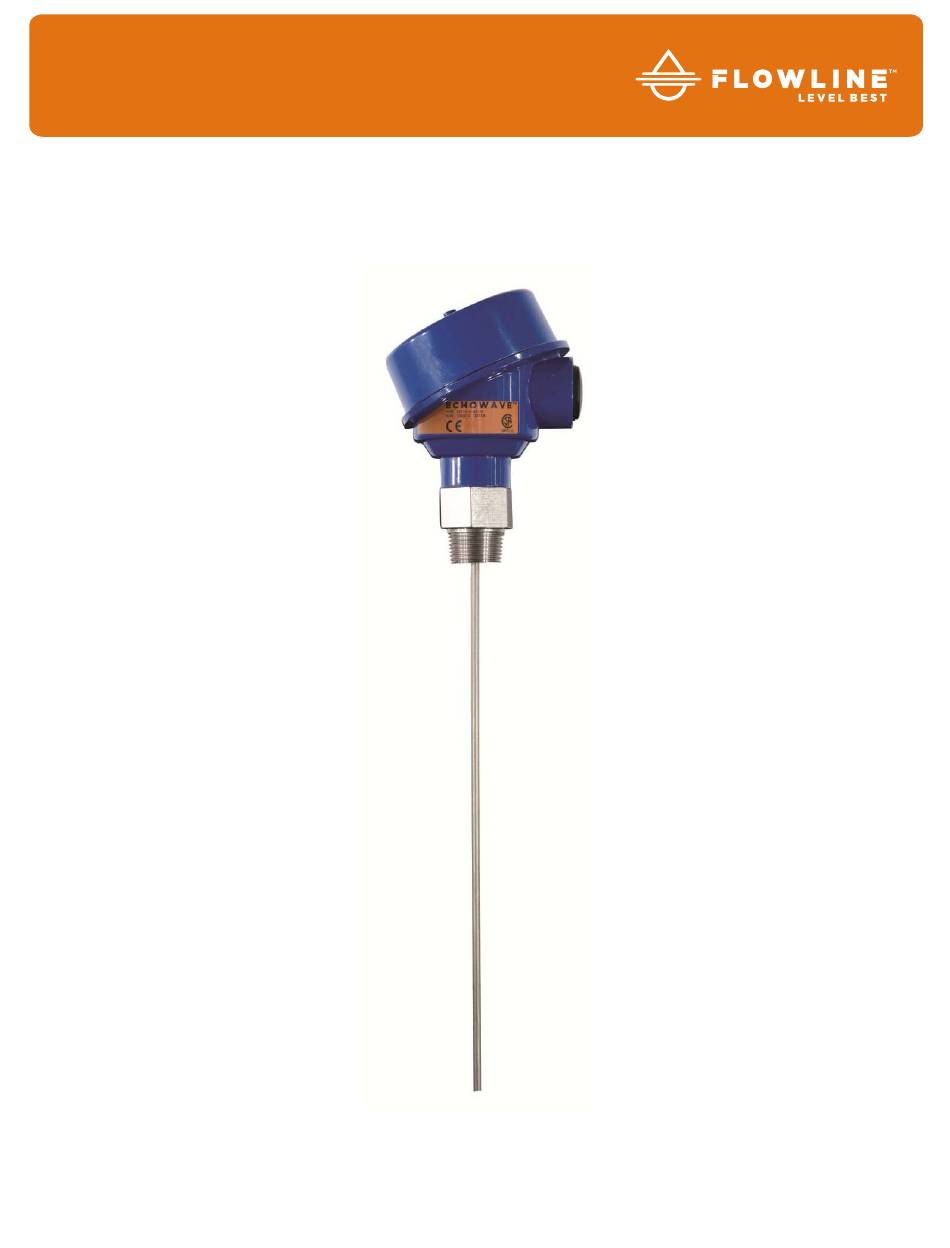

- Page 1 ® EchoWave Guided Wave Liquid Level Transmitter LG10 & LG11 Series Manual Flowline, Inc. | 10500 Humbolt Street, Los Alamitos, CA 90720 p 562.598.3015 f 562.431.8507 w flowline.com MN300840 REV A8...
-
Page 2: Table Of Contents
Introduction / Table of Contents Step One ® EchoWave utilizes TDR (Time Domain Reflectometry) technology. It is best described as low-energy, high- frequency electromagnetic impulses, generated by the sensor’s circuitry that is propagated along the probe as it is immerged in the liquid to be measured. Impulses hit the surface of the media and part of the impulse energy is reflected back up the probe to the circuitry. -
Page 3: Specifications
Introduction Step One ELECTRICAL Analog output: 4 to 20mA Total load resistance: < 250Ω Lower range value: 4.0mA (span 0%) Upper range value: 20.0mA (span 100%) Response time: Supply voltage: 10 to 30VDC (reverse-polarity protected) Current consumption: <50mA at 24VDC Start-up time: <6s Cable terminals:... - Page 4 Introduction Step One APPLICATION SPECIFICATIONS (CONTINUED) Process temperature Rod: F: -40° to 302° C: -40° to 150° Cable: F: -40° to 302° C: -40° to 150° Coaxial: F: -40° to 266° C: -40° to 130° Ambient temperature Operation: F: -13° to 176° C: -25°...
-
Page 5: Dimensions
Introduction Step One DIMENSIONS MN300840 REV A8... -
Page 6: About This Manual
. Please refer to the part number located on the switch label to verify the exact model configuration, which you have purchased. ® User’s Responsibility for Safety: Flowline manufactures a broad range of level sensing technologies. While each of these sensors is designed to operate in a wide variety of applications, it is the user’s responsibility to select a sensor model that is appropriate for the application, install it properly, perform tests of the installed system, and maintain all components. -
Page 7: Getting Started (Setup Overview)
Getting Started Section Two SETUP OVERVIEW Below highlights the initial steps in setting up your sensor for operation. 1. Check Part Number (Section Two) a. Confirm that the sensor’s part number matches the ordered part number and all components are provided with the model delivered. 2. -
Page 8: Part Numbers
Getting Started Section Two ® Components: EchoWave is offered in 28 different models. Depending on the model purchased, you may or may not have been shipped the configuration component shown below. Part Maximum Probe Mat’l of Thread Components Number Range Style Const. -
Page 9: Probe Length
Getting Started Section Two UNDERSTANDING SENSOR HEIGHT ® This is a critical setting for EchoWave . Sensor Height defines the height of the sensor above the bottom of the tank. The height value must take into account the shape of the tank and any risers, fittings, structures or extensions associated with the tank or the installation (see examples below). - Page 10 Getting Started Section Two UNDERSTANDING INSTALL LOCATION LENGTH Measure the space below the actual installation location for the sensor. This distance (install length) must be greater than the probe length. In many tanks, the install length corresponds to the height of the tank. With dome top, cone bottom and horizontal tanks, include the added height of the curved surface.
- Page 11 Getting Started Section Two ADDING A RISER TO AVOID CUTTING THE PROBE In some conditions, a riser may be added to avoid cutting the probe. Rod and Cable Probes With the Rod and Cable versions Least Number of Fittings Too Many Fittings of the probe, the maximum height for the riser is 12”...
-
Page 12: Measurement Range
Getting Started Section Two UNDERSTANDING MEASUREMENT RANGE ® EchoWave level transmitters have small dead band areas at both the top and bottom of the probe. It is due to the presence of unavoidable signal disturbances at both ends of the probe. In these dead band areas the measurements are non-linear or have reduced accuracy. - Page 13 Getting Started Section Two UNDERSTANDING MINIMUM FILL-HEIGHT (PUTTING IT ALL TOGETHER) ® EchoWave has a Minimum Fill-Height (Min. Fill-H), which is measured from the bottom of the tank to the top of the Bottom Dead Band. As shipped from the factory, Min. Fill-H is where the 4mA current is located and is the lowest point on the probe where the sensor can detect a liquid level.
-
Page 14: Distance (Height Of Liquid) Vs. Volume Of Liquid
Getting Started Section Two DISTANCE (HEIGHT OF LIQUID) VS. VOLUME OF LIQUID ® With WebCal , the LG10/LG11 series can be configured to operate as a device that reads the distance (height of liquid) or volume of a liquid. The location of the empty current will adjust depending on which configuration method is selected. -
Page 15: Installation (Mounting Considerations)
Installation Section Three ® EchoWave is mounted vertically into the tank via its connection thread. It is then screwed directly into a standard threaded tank connection, i.e. tank adapter, bushing, weld-in socket, or it can be screwed into a flange which is connected to a tank nozzle. Always use metal fittings with the Rod Probe (LG10-0 series) and Cable Probe (LG11- 2 series. - Page 16 Installation Section Three MOUNTING CONSIDERATIONS (CONTINUED) The rod and cable probes are suitable for a very wide range of applications in liquids. However, the signal has a wider detection radius around the rod/cable. Therefore, it is more responsive for measurement signal disturbances that are overcome by a few Mounting Considerations (see below) as well as simple configuration adjustments to the sensor.
-
Page 17: Installation Tips
Installation Section Three INSTALLATION TIPS Tall and Narrow Risers Rod and Cable probes can be installed in tall and narrow risers under the following criteria: Nozzle Diameter must be >2” (50mm), Nozzle Height must be <12” (300mm), Riser must be metallic, ... - Page 18 Installation Section Three INSTALLATION TIPS (CONTINUED) Liquid Spray Rod and Cable probes must avoid any liquid that sprays or pours onto the probe. Coaxial probes are not affected by liquid straying on parts that are above the liquid surface. However, avoid installing probe where liquid will pour onto the probe.
- Page 19 Installation Section Three INSTALLATION TIPS (CONTINUED) Non-Metallic Tanks Unlike coaxial, rod and cable probes have no containment mechanism. This energy must be contained by the tank wall, requiring that all rod and cable probe sensors be installed in metallic tanks or within below grade concrete sumps. Coaxial probes can be installed in any type of tank, including non- metallic tanks.
- Page 20 Installation Section Three INSTALLATION TIPS (CONTINUED) Tall Tanks The rod and coaxial probes have a maximum insertion length of 9.8’ (3m). For metal or concrete tanks that are taller/deeper, the cable probe can be used for lengths up to 18.0’ (5.5m). ...
-
Page 21: Wiring (Analog Output)
Wiring Section Four ® Analog Output (4-20 mA): The analog output of the EchoWave is a sourced 4-20 mA control circuit. The typical way to use this feature is to connect a positive supply to the (+) input terminal, a negative supply to the (-) input terminal and to connect the current output out of the 420 (+) terminal. - Page 22 Wiring Section Four WIRE CONNECTIONS The housing has single cable entry and can be attached to screw plugs, cord grips or conduit with the ½” NPT thread. Note: the customer must confirm the suitability of those connectors for the specific application requirements and cabling;...
-
Page 23: Common Wiring To Displays, Controllers & Plcs
Wiring Section Four COMMON WIRING TO DISPLAY, CONTROLLERS & PLC’S ® Below is a quick review of wiring the EchoWave to common display, controllers and PLC’s. DataView™ LI55 Series Commander™ LI90 Series Level Controller Multi-Tank Level Controller DataLoop™ LI25 Series DataLoop™... - Page 24 Wiring Section Four COMMON WIRING TO DISPLAY, CONTROLLERS & PLC’S (CONTINUED) Generic Loop Generic PLC Powered Display DataPoint™ LC52 Series Level Controller (JWB mode) Note: LC52 shipped from factory with jumper in JWA mode. Jumper must be switched to JWB mode for ®...
-
Page 25: Configuration
To configure, follow the steps below: ® 1. Install WebCal Software a. Go to www.flowline.com/webcal-software/ and select language version. ® ® b. Review how USB Fob interfaces with EchoWave and your computer. -
Page 26: Step 1 - Install Webcal Software
Flowline’s website. You must download and install WebCal ® (version 6.5 or greater) prior to plugging in ® Fob. Please go to flowline.com/webcal-software, and select your language version. the USB ® WEBCAL SYSTEM REQUIREMENTS ®... -
Page 27: Usb Fob Interface
Note: When using the Fob, do not add VDC power. The Fob, when connected to the computer, will provide ® the required power to the EchoWave ® ® For complete information on the WebCal (version 6.5 or greater) software, please refer to the WebCal manual located at flowline.com/webcal-software. MN300840 REV A8... -
Page 28: Step 2 - Measure The Tank
Configuration Section Five STEP 2 - MEASURE THE TANK Measuring the tank is one of the most important aspects in configuring the sensor. When measuring the tank, take into account the location of the sensor with respect to fittings, risers, dome tops and bottoms, and identify where the measurements are taken from the sensor. -
Page 29: Step 3 - Sensor Configuration
Configures the Loop Fail-Safe, Output at Empty, Startup Condition, Probe Type and Dielectric Range. Out of Range Flowline suggests setting the Loop Fail-safe to HOLD Last Value in application where the liquid level falls below the end of the probe or rises above the Max. Fill-H. -
Page 30: Step 4 - Dimensional Entry
nfiguratio Section Five STEP P 4 – DIMENS SIONAL ENT TRY: Distance e Mode (def fault): Outpu ut of sensor is based on the distance e (height of liquid) in the e tank. Any change i n liquid leve l will reflect linearly to th he current ou utput. -
Page 31: Step 5 - Tank Level Configuration
Volumetric Sensor Output The Volumetric Mode button will be highlighted in Blue when a volume output is selected. ® ® * For complete information on the WebCal software, please refer to the WebCal manual located at flowline.com/webcal-software. MN300840 REV A8... -
Page 32: Empty Signal Scan
Empty Signal Scan Section Six EMPTY SIGNAL SCAN ® The Empty Signal Scan is a powerful disturbance signal suppression feature of EchoWave . The sensor scans its entire probe length for any disturbance/interference signals within the application that could potentially be misinterpreted as level readings by memorizing and suppressing them during operation. - Page 33 The Empty Signal Scan can be viewed with the WebCal software (version 6.5 and greater). Note: Always ® consult a Flowline representative for reviewing of the signal data. To view, follow the directions below: 1. Activate an Empty Signal Scan (see instructions in Empty Signal Scan, Section 6).
-
Page 34: Appendix
It can be used to confirm the correct level reading by the sensor or to troubleshoot any false signals. There is a two step process involving the creating and viewing of an Echo ® Curve. Note: Always consult a Flowline representative for reviewing of the signal data. #1 - CREATE AN ECHO CURVE To create an Echo Curve, use the following instructions: 1. -
Page 35: Sensor Configuration
Appendix Section Seven ® This section of WebCal is where you select the sensor configuration settings. Start from the top and work to the bottom, choosing the sections that are applicable to your configuration. All configuration settings must be selected before you can Write to Unit. SENSOR CONFIGURATION LOOP FAIL-SAFE This feature allows you to select the fail-safe current output if the... - Page 36 Appendix Section Seven SENSOR CONFIGURATION (CONTINUED) OUTPUT AT EMPTY This feature allows you to select the orientation of the 4 to 20mA output (4 to 20 mA or 20 to 4 mA). Choose which output setting best fits the application. Factory default is 4mA at bottom and 20mA at top as this configuration scenario is an industry standard.
- Page 37 To reset the configuration table, press the Clear Screen button Note: It is very important to select the correct range for the dielectric value of the liquid. Choosing an incorrect range will affect the performance of the sensor. Reference a website such as http://flowline.com for dielectric information.
-
Page 38: Volumetric Configuration
Appendix Section Seven VOLUMTRIC CONFIGURATION The sensor may be configured in volumetric units (Gallons or Liters) or Distance (Height of Liquid) units (inches, cm, feet or meters). ® WebCal will default to Distance (Height of Liquid) with units of Inches. To change units or change from Distance to Volume, press the Volumetric Mode button as located near the center of the window. - Page 39 Appendix Section Seven ® Shape Selection Window: This window will shows the different tank shape options available in WebCal Vertical Cylinder Vertical Cylinder with Cone Bottom Horizontal Cylinder with End caps Horizontal Cylinder with Spherical Ends ...
- Page 40 Appendix Section Seven Volume – Sensor Output Units (Vertical Cylinder Example) Enter the dimensions of the tank. You must enter data in all fields shown. Sensor Height: Distance from the bottom of the tank to the top of the threads. Max.
-
Page 41: Tank Level Confirmation
Appendix Section Seven TANK LEVEL CONFIRMATION ® This section of WebCal is where you confirm the values set in the previous step. The values were entered under the Dimensional entry window. To edit these settings, you must go back to the Dimensional entry window via the Volumetric Mode button. -
Page 42: Write To Unit
Appendix Section Seven WRITE TO UNIT Write to Unit Wiring diagram After you have entered configurations, selected and configured the Tank Shape and entered the Tank Values, click “Write to Unit” Factory Config and load the configuration into the memory of the sensor. -
Page 43: Cutting The Probe
Appendix Section Seven CUTTING THE PROBE If the length of the probe is too long (touches bottom of tank, prevents the sensor from being threaded into the tank or a shorter length is required for the application), the probe can be cut to length in the field. Note: The most important requirement for cutting the probe is to protect the housing from being dropped, banging into other objects or swinging freely. Follow the instructions for the appropriate probe style. Place the probe on a sturdy surface. Measure and mark the location for the cut. Secure the rod to prevent it from moving during cutting. o Be sure to secure the housing to prevent it from moving when the probe is cut. Use a saw with a blade designed to cut 316L SS to cut the probe. o Examples include hack saw, diamond wheel rotary tool, etc. o Once the probe is cut, trim/file the fresh cut. Install the probe per mounting instructions. COAXIAL Place the probe on a sturdy surface. Measure and mark the location for the cut on the coaxial shield. Unthread the coaxial shield from the GWR sensor. ... - Page 44 Appendix Section Seven Measure and mark the location for the cut on the exposed rod. o Use the coaxial shield as a guide to confirm both cuts are at the same length. Cutting the rod o Secure the rod to prevent it from moving during cutting. ...
- Page 45 Appendix Section Seven CABLE Place the probe on a sturdy surface. Measure the location for the cut on the cable. Wrap the cable with electrical tape along the area of the cut. o This will prevent the cable from fraying while being cut. ...
- Page 46 Appendix Section Seven FACTORY SETTINGS From Bottom From Top (Lowest point of probe) (Bottom of Mounting Nut) Probe Probe Sensor 20mA 20mA Style Length 118.1” 2.0” 114.8” 116.8” 3.4” LG10-0_ _ _-_ _ (300cm) (50.8mm) (2915mm) (2966mm) (85.1mm) 118.1” 2.0” 114.8”...
-
Page 47: Troubleshooting
Appendix Section Seven TROUBLESHOOTING PROBLEM SOLUTION Sensor is not receiving power (10 to 30 VDC). Check wiring to the No LED. sensor as well as the power supply. Sensor cannot acquire a valid level reading. Make sure the sensor is LED flashes Red. -
Page 48: Warranty
PERSON IS AUTHORIZED TO MAKE ANY OTHER WARRANTIES OR REPRESENTATIONS ON BEHALF OF FLOWLINE. This warranty will be interpreted pursuant to the laws of the State of California. If any portion of this warranty is held to be invalid or unenforceable for any reason, such finding will not invalidate any other provision of this warranty.
