Summary of Contents for FlowLine EchoPro LR11 Series

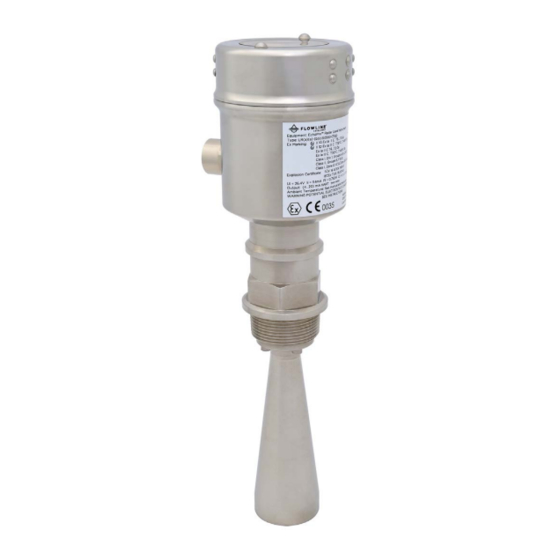

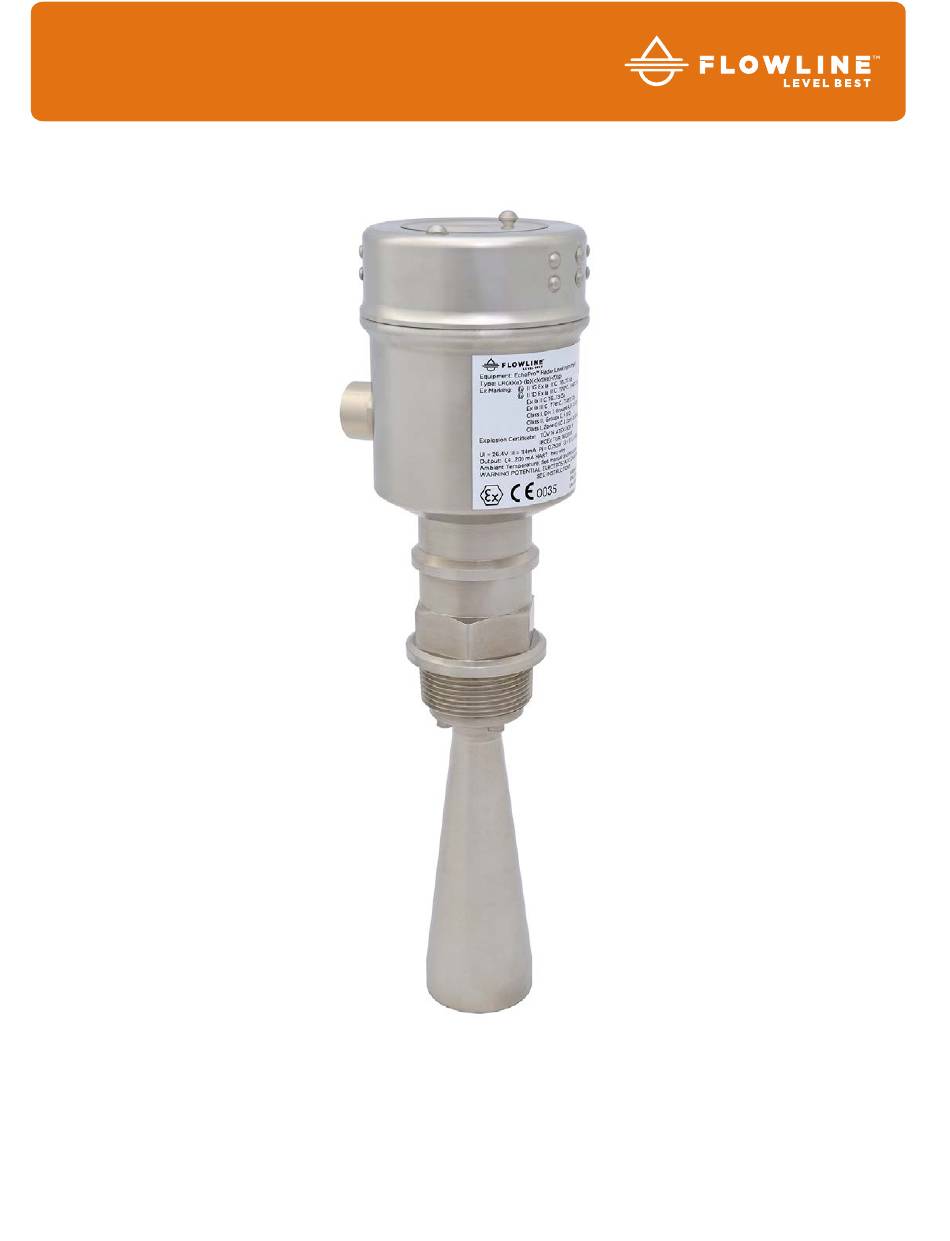

- Page 1 ® EchoPro Intrinsically Safe Radar Level Transmitter LR11, LR16, LR21, LR26 & LR31 Series Manual Flowline, Inc. 10500 Humbolt Street, Los Alamitos, CA 90720 p 562.598.3015 f 562.431.8507 w flowline.com MN301900 Rev B...
-
Page 2: Table Of Contents
Introduction / Table of Contents Step One Page TABLE OF CONTENTS Section One | Introduction: ..........................2 Table of Contents: ........................... 2 Sensor Models: ............................5 Operating Principle: ..........................6 Features: ..............................6 Benefits: ..............................6 Limitations: .............................. 6 Specifications: ............................7 Intrinsically Safe Control Drawings: ...................... - Page 3 Introduction / Table of Contents (continued) Step One Section Five | Configuration Using Display: ....................40 Basic Configuration Overview: ......................40 Basic HART communicator overview: ....................41 Units of Measurement: ........................ 42 Sensor Height: ..........................42 Fill-Height:........................... 43 Maximum Range:........................43 Dead Band: ..........................
- Page 4 Introduction / Table of Contents (continued) Step One Section Nine | Appendix: ..........................76 Configuration Menu: ..........................76 Empty Configuration: ..........................77 Full Configuration: ..........................77 Medium: ..............................78 Liquid Medium: ........................... 78 Solids Medium: ........................... 79 Low Dielectric Medium: ......................80 Dampen: ..............................
-
Page 5: Sensor Models
Introduction / Table of Contents (continued) Step One SENSOR MODELS ® Offered in eight different models, EchoPro is an intrinsically safe, two-wire, pulse radar level sensor that provides a continuous 4-20 mA current output that’s proportional to the liquid level in a tank or sump. Make sure that the model purchased is appropriate for your application. -
Page 6: Operating Principle
Introduction / Table of Contents (continued) Step One OPERATING PRINCIPLE The sensor emits a microwave pulse from its antenna, which travels at the speed of light to the surface of the medium below. A portion of that energy reflects off the medium and returns to the antenna. The time gap between energy emission and receipt is called the “time of flight”, and is proportional to the distance between the medium surface and the sensors measurement location, as at the bottom of the antenna. -
Page 7: Specifications
Introduction / Table of Contents (continued) Step One SPECIFICATIONS Measurement Range: LR11: .. 32.81 feet (10m) LR16: 98.42 feet (30m) (maximum) LR21: 65.51 feet (20m) LR26: 114.83 feet (35m) LR31: .. 98.42 feet (30m) Dead Band: 12” (30.48cm) / Factory Set - Note: Can be lowered to 2”... - Page 8 Introduction / Table of Contents (continued) Step One Weight: LR11: 2.20 lbs (1kg) LR16: 4.41 lbs (2kg) Depends on process LR21: 6.61 lbs (3kg) LR26: 6.61 lbs (3kg) connection size and LR31: 2.20 lbs (1kg) housing configuration Temperature (Process): LR11: F: -40° to 266° LR16: F: -76°...
- Page 9 Introduction / Table of Contents (continued) Step One Power: Power Supply: 24 VDC (21.6 to 26.4 VDC) the same two-wire connection cable carries power supply and current signal. Power Consumption: 22.5mA maximum Ripple Allowed: <100Hz: <1V 100 to 100 KHz: <10mV Enclosure Rating: LR11, LR16, LR21, LR26: ......
- Page 10 Introduction / Table of Contents (continued) Step One Accuracy Charts MN301900 Rev B ...
- Page 11 Introduction / Table of Contents (continued) Step One Communication: FCC (US) Part 15.209, Class A: LR11, LR16 (2” horn) and LR26 series can only be installed on metal or reinforced concrete tanks. Part 15.256, Class B: LR16 (3” & 4” horn), LR21 & LR31 series can be installed on any tank material.
-
Page 12: Intrinsically Safe Control Drawings
Introduction / Table of Contents (continued) Step One INTRINSICALLY SAFE CONTROL DRAWING 301901 Intrinsically Safe Approvals: Intrinsic Safe: North America: Class I, Div.1, Groups A, B, C, D; Class II, Div.1, Groups E, F, G; (T6…T3) Class I, Zone 0 AEx ia IIC (T6…T3) Ga Zone 20 AEx ia IIIC (T76°C to T146°C) Da Ex ia IIC (T6…T3) Ga Ex ia IIIC (T76°C to T146°C) Da... -
Page 13: Labels For Intrinsic Safety
Introduction / Table of Contents (continued) Step One LABELS FOR INTRINSIC SAFETY Part Number Label MN301900 Rev B... -
Page 14: Dimensions
Introduction / Table of Contents (continued) Step One DIMENSIONS LR11 Series LR16 Series (Threaded) LR16 Series (Threaded) Antenna Dimensions Diameter (X) Length (Y) 2” (48mm) 5.51” (140mm) 3” (78mm) 8.94” (227mm) 4” (98mm) 11.34” (288mm) MN301900 Rev B ... - Page 15 Introduction / Table of Contents (continued) Step One LR21 Series LR26 Series LR21 Series Flange / Antenna LR26 Series Flange / Antenna Dimensions Dimensions Flange Diameter Thickness Length Flange Diameter Thickness Length 3” 7.5” 0.88” 9” 4” 9.0” 0.57” 5.71”...
- Page 16 Introduction / Table of Contents (continued) Step One LR31 Series Bracket (Top View) LR31 Series (Side View B) LR31 Series (Side View A) LR98 Series Display LR98 Series Display LR98 Series Display (Front View) (Bottom View) (Side View) Note: Both conduit ports feature M20x1.5 threads. LR98 ships with Liquid Tight Fitting (LM90-1051) and LR97-S003 Adapter (½”...
-
Page 17: Safety Precautions
Before closing the enclosure, make sure that the enclosure gasket is properly seated, and that any conduit fittings, cable connectors or plugs are installed correctly and sealed. Note: If using the Flowline LM90-1001 (liquid tight fitting) on the ½” conduit, the cable minimum is 0.170” (4.3mm) and the maximum is 0.450”... -
Page 18: Section Two | Getting Started
1. Prior to purchasing the sensor, you may have submitted a Level Application Questionnaire (www.flowline.com/LAQ), which based upon the information provided, may have resulted in a suggested part number. Where so, confirm that the suggested part number matches the part number of the purchased sensor. - Page 19 Getting Started (continued) Step Two 5. Process Adjustments (Section Six) 1. Information on OPTIONAL adjustments for specific process conditions that may exist in your application. a. Fast filling or emptying of liquid. b. Liquid surface is turbulent or agitated. c. Foam on the surface of the liquid. d.
-
Page 20: Part Number
PART T NUMBER Prior purch hasing sensor, have bmitted Level plication Questionnaire (www w.flowline.com m/LAQ). Ba ased upon t the informa tion provide ed, it may h have resulte ed in a sug ggested par numb ber. Where so, confirm... - Page 21 Getting Started (continued) Step Two LR21 - 2 1 - - 0 0 Housing Material - Stainless Steel Intrinsically Safe Process Connection 3 - ANSI Flange Approval 2 - ATEX / IECEx / HazLoc Output 1 - 4-20 mA Flange Size 3 - 3"...
-
Page 22: Section Three | Install Sensor
Install Sensor Step Three INSTALLATION REQUIREMENTS ® EchoPro measures the distance between the sensor and the liquid surface below. Typically, all measurements from the sensor originate from the bottom of the antenna. Refer to the Measurement Reference Chart to determine the location where measurement originates on your sensor. To ensure reliable measurement, adhere to the following minimum installation requirements: 1) There are no obstructions between the bottom edge of the installed antenna and the surface of the liquid below... -
Page 23: Fcc Conformity
Install Sensor Step Three FCC CONFORMITY This instrument complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this instrument may not cause harmful interference, and; (2) this instrument must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. -
Page 24: Lr16 Antenna Preparation
Install Sensor (continued) Step Three LR16 ANTENNA PREPARATION The LR16 Series antenna (only) may be removed from the sensor to allow a flange or reducer bushing accessory to be attached to the 1 ½” NPT mounting threads and/or, the antenna may be inserted from within the inside of the tank through the bottom of an existing fitting (where the base of the antenna is too wide to pass through the fitting from the top). -
Page 25: Mounting Position
Install Sensor (continued) Step Three MOUNTING POSITION The minimum distance (independent of beam angle) that the sensor can be mounted next to the straight side wall of the tank is 19.7” (500mm) as measured from the sensor centerline to the side wall. If you are not able to install the sensor more than 19.7”... - Page 26 Install Sensor (continued) Step Three MOUNT THE SENSOR PERPENDICULAR TO THE LIQUID LEVEL Always mount the sensor perpendicular to the surface of the media. This will enable the return echoes to reach the sensor. Mounting the sensor off-axis will result in weak return echoes or no return echoes, depending on the degree of angle.
- Page 27 Install Sensor (continued) Step Three AVOID OBSTRUCTIONS IN THE BEAM PATH Do not mount the sensor in or above the fill stream, other equipment (ladders, pumps, mixers) or structures within the beam path of the sensor. Such items can create false echo returns and prevent the actual level from being identified by the sensor.
-
Page 28: Flange Riser Installation
Install Sensor (continued) Step Three FLANGE RISER INSTALLATION When installing the sensor on a flange with a riser (or any fitting that is tall and narrow), the antenna must protrude at least 0.4” (10mm) from the bottom of the riser. Antenna Extension LR16 Series Shown The sensor can be installed within the riser as long as the media has a strong reflective property (dielectric... -
Page 29: Beam Angle
Install Sensor (continued) Step Three AGITATOR OR MIXER If there are agitators or mixers in the tank, the sensor should be mounted as far away from the blades as possible. Once the installation is complete, a False Echo Curve should be preformed while the agitator or mixer is in motion to map out and eliminate false echo returns from the blades. -
Page 30: Stand Pipe Installation
Install Sensor (continued) Step Three STAND PIPE INSTALLATION To avoid issues from turbulence, substantial foam or other equipment in the sensors beam path, install the sensor within a stand pipe (still well). A stand pipe installation can be used with media where the dielectric constant as low as 1.9. -
Page 31: Bypass Installation
Install Sensor (continued) Step Three BYPASS INSTALLATION An alternative to a stand pipe is installing the sensor within a bypass chamber mounted outside of the tank. Bypass installations can avoid issues from turbulence, substantial foam or other equipment in the sensors beam path. -
Page 32: Lr31 Sensor Installation
Install Sensor (continued) Step Three LR31 SENSOR INSTALLATION ® The LR31 is unique within the EchoPro sensor family. It is designed for use in water processing, lift stations, storm water, sump and environmental storage ponds/reservoirs, streams or dams, which require the sensor to be installed in locations that are often below grade where flooding is a possibility. -
Page 33: Lr98 Display Installation
Install Sensor (continued) Step Three LR98 DISPLAY INSTALLATION The LR98 is a wall / bulkhead mount IP67 remote push button display module that’s used to configure and display level readings from the LR31 sensor. The LR98 should be mounted in a location where the display can be easily read. -
Page 34: Section Four | Wire Sensor
Wire Sensor Step Four REMOVE THE DISPLAY To access the terminal strip and conduit ports, you must remove the display. Gently twist the display counter-clockwise until you feel the display unlock from the housing. Next, lift the display from the housing to view the terminal strip and wire access ports. -
Page 35: Hart ® Wiring
HART 7.0 certified and can be configured using a HART communicator. The Device Descriptor (DD) files have been released on the Flowline website and can be installed onto your communicator. The files can be found on the individual EchoPro product pages. Simply click on your sensor from the EchoPro Liquid page (https://www.flowline.com/echopro-liquid-radar/). -
Page 36: Lr31 Configuration
Wire Sensor (continued) Step Four LR31 CONFIGURATION ® There are two main ways to configure the EchoPro LR31 series: ® 1) Use a HART communicator. 2) Use the included LR98 Display. ® If using the HART communicator, be sure to download and install the DD files into your communicator to make configuration easier. -
Page 37: Using Lr98 Display As Hmi For Lr31 Series
Wire Sensor (continued) Step Four USING LR98 DISPLAY AS HMI FOR LR31 SERIES The LR98 display is one of two HMI’s for the LR31 and is used only to configure the sensor. The LR98 is NOT approved for use within intrinsically safe applications and should NOT be used within classified hazardous environments. -
Page 38: Wiring To Displays, Controllers & Plcs
Wire Sensor (continued) Step Four WIRING TO DISPLAYS, CONTROLLERS & PLC’S ® Below are examples of how to wire EchoPro to common displays, controllers and PLC’s. DataView™ LI55 Series Commander™ LI90 Series Level Controller Multi-Tank Level Controller Note: Always refer to the Control Drawing 301901 for further wiring information. DataLoop™... - Page 39 Wire Sensor (continued) Step Four WIRING TO DISPLAYS, CONTROLLERS & PLC’S DataPoint™ LC52 Series Generic PLC Level Controller (*JWA Mode - Factory Setting) Note: Always refer to the Control Drawing 301901 for further wiring Generic Loop Powered Display Note: Always refer to the Control Drawing 301901 for further wiring information. * Refer to the DataPoint™...
-
Page 40: Section Five | Configuration Using Display
Configuration Using Display Step Five BASIC CONFIGURATION OVERVIEW Below are the 7 basic steps to configure the sensor for operation. Each step is described in detail on the following pages 1) Measure the Tank a) Begin by measuring the key tank and fitting dimensions. Correct tank dimensions will result in accurate sensor measurement. -
Page 41: Basic Hart Communicator Overview
HART modem with emulation software. Be sure to download from the Flowline website and load the Device Descriptor (DD) files onto your communicator or emulation software. The DD files can be found on the individual EchoPro product ®... -
Page 42: Units Of Measurement
Configuration Using HART Communicator Step Five BASIC HART COMMUNICATOR OVERVIEW (CONTINUED) Units of Measurement To access Units of Measurement, click on the Service folder, then click on the Units of Measurement folder. Next click on Units of Measurement under Item and use the pull down to change the setting. Sensor Height To access Sensor Height, click on the Configuration folder, then click on the Sensor Height folder. -
Page 43: Fill-Height
Configuration Using HART Communicator Step Five BASIC HART COMMUNICATOR OVERVIEW (CONTINUED) Fill-Height To access Fill-Height, click on the Configuration folder, then click on the Fill-Height folder. Next click on Fill- Height under Item and use the number field to set the value in the units selected (ft or m). Maximum Range To access Maximum Range, click on the Configuration folder, then click on the Max. -
Page 44: Dead Band
Configuration Using HART Communicator Step Five BASIC HART COMMUNICATOR OVERVIEW (CONTINUED) Dead Band To access Dead Band, click on the Configuration folder, then click on the Dead Band folder. Next click on Dead Band under Item and use the number field to set the value in the units selected (ft or m). Check Echo Curve To access Check Echo Curve, click on the Diagnostics folder, then click on the Display Curve folder. -
Page 45: Using The Display
Configuration Using Display (continued) Step Five USING THE DISPLAY The display module features a dot matrix LCD display with 4 push buttons on a removable puck. Out of the box, the display indicates level in feet and depicts the level within the 4-20mA span on a bar graph at the right side of the display. The four buttons perform the following functions: ... -
Page 46: Changing Display Values
Configuration Using Display (continued) Step Five CHANGING DISPLAY VALUES The numeric values are set using the Right Arrow and Up Arrow buttons. Press the Right Arrow button to select the next digit and the Up Arrow button to increment the digit value. The digit being changed is highlighted. -
Page 47: Step 1 - Measure The Tank
Configuration Using Display (continued) Step Five STEP 1 - MEASURE THE TANK Measuring the tank is one of the most important aspects Measurement Reference Chart in configuring the sensor. When measuring the tank, LR11 Series LR16 Series take into account the location of the sensor with respect to fittings, risers, dome tops and bottoms, and identify where the measurements are taken from the sensor. -
Page 48: Step 2 - Set The Units Of Measurement
Configuration Using Display (continued) Step Five STEP 2 - SET THE UNITS OF MEASUREMENT This function sets the units for all measurement values to be entered into the sensor. 1) From the Main Screen, press OK to advance into the Main Menu. 2) Press Right Arrow repeatedly until the arrow is next to Service. -
Page 49: Step 3 - Set The Sensor Height (4Ma)
Configuration Using Display (continued) Step Five STEP 3 - SET THE SENSOR HEIGHT (4MA) This function sets the Sensor Height point corresponding to an empty position in the tank. The measured distance of Sensor Height from the sensor will set the 4mA location as well as establish the 0% span of the sensor. -
Page 50: Step 4 - Set The Fill-Height (20Ma)
Configuration Using Display (continued) Step Five STEP 4 - SET THE FILL-HEIGHT (20MA) This function sets the Fill-Height point corresponding to a full position in the tank. The measured distance of Fill-Height from the 0% or empty position will set the 20mA location as well as establish the 100% span of the sensor. -
Page 51: Step 5 - Set The Range (Maximum Range)
Configuration Using Display (continued) Step Five STEP 5 - SET THE MAX. RANGE (MAXIMUM RANGE) This function sets the maximum operational range for the sensor. This setting defines the maximum distance that the sensor will detect valid echo returns. 1) From the Main Screen, press OK to advance into the Main Menu. -
Page 52: Step 6 - Set The Dead Band
Configuration Using Display (continued) Step Five STEP 6 - SET THE DEAD BAND This function sets the Dead Band for the sensor. This setting defines the minimum distance that the sensor will detect valid echo returns. While the Dead Band setting is typically configured to be equal with or slightly above (higher in the tank) the Full Configuration setting (20 mA), its functions independently of Full Configuration. -
Page 53: Step 7 - Check The Echo Curve
Configuration Using Display (continued) Step Five STEP 7 - CHECK THE ECHO CURVE This function displays the primary echo return(s) that the sensor is seeing graphically, the location and amplitude of the return(s), and the numeric air gap distance from the sensor’s measurement location to the liquid level below. Note: This step should only be performed after having completed the prior six configuration steps with the sensor installed on the tank. -
Page 54: Section Six | Process Adjustments
Process Adjustments (using Display) Step Six PROCESS ADJUSTMENTS OVERVIEW These optional functions are intended to improve sensor performance in applications with the below process and/or installation characteristics. Note: These adjustments should only be performed when (after having completed the seven configuration steps described in Section Five with the sensor installed on the tank) the sensor is not performing to your satisfaction. -
Page 55: Fast Filling Or Emptying Of Liquid
Process Adjustments (using Display, continued) Step Six FAST FILLING OR EMPTYING OF LIQUID (FAST LEVEL CHANGE) If the speed of media level rise or fall within the tank is greater than a rate of 1” per second (25.4mm/sec), set Fast Level Change to Yes. Note: Fast filling or emptying can occur when multiple pumps are operating or when a weather event increases the amount of media entering the tank. -
Page 56: Liquid Requiring First Echo Adjustment
Process Adjustments (using Display, continued) Step Six LIQUIDS REQUIRING FIRST ECHO ADJUSTMENT (FIRST ECHO) This function increases or decreases the peak strength of the sensor’s First Echo return, and should only be performed if: 1) The liquid has a very high dielectric constant value and primarily stays in the near full range of the tank, resulting in a very high First Echo peak strength or;... -
Page 57: Liquid Surface Is Turbulent Or Agitated
Process Adjustments (using Display, continued) Step Six LIQUID SURFACE IS TURBULENT OR AGITATED (TURBULENT SURFACE) If the liquid surface is turbulent or agitated, set Turbulent Surface to Yes. Note: Turbulent or agitated surfaces can occur when tanks are filled from the top without a down pipe, or when a mixer or air agitation is used within the tank. -
Page 58: Foam On The Surface Of The Liquid
Process Adjustments (using Display, continued) Step Six FOAM ON THE SURFACE OF THE LIQUID (FOAM) If the entire liquid surface is covered with foam, set Foam to Yes. This is not necessary if the liquid surface is partially covered with foam. Note: Foam can occur when tanks are filled from the top without a down-fill pipe, or when a mixer or air agitation is used within the tank. -
Page 59: Liquids With Low Dielectric
Process Adjustments (using Display, continued) Step Six LIQUIDS WITH LOW DIELECTRIC (LOW DIELECTRIC) Used when the liquid has a low dielectric constant (typically under 10). Selections are YES or NO. Default is 1) From the Main Screen, press OK to advance into the Main Menu. 2) Press OK to advance into the Configuration Menu. -
Page 60: Sensor Installed In A Stand Pipe Or Sight Glass
Process Adjustments (using Display, continued) Step Six SENSOR INSTALLED IN A STAND PIPE OR BYPASS CHAMBER - LIQUIDS ONLY (STILL WELL) If the sensor is installed in a metal stand pipe (still well) or metal bypass chamber, set Still Well to yes and enter the inner Pipe Diameter dimension. -
Page 61: Section Seven | Advanced Adjustments
Advanced Adjustments Step Seven ADVANCED ADJUSTMENTS OVERVIEW These optional functions are used to change the sensor output characteristics, or Create a False Echo Curve to filter out false echo returns within the tank (improving sensor performance), or Update an existing False Echo Curve filter if the original filter was not created during an empty tank condition. -
Page 62: 4-20Ma Reverse Output
Advanced Adjustments (continued) Step Seven 4-20 MA REVERSE OUTPUT This function sets the current output at either 4-20 mA or 20-4 mA. Selecting 4-20 mA sets the output with 4mA @ bottom and 20mA @ top of the tank. This is the standard output used in the majority of applications. Selecting 20-4 mA sets the output with 20mA @ bottom and 4mA @ top of the tank. -
Page 63: Fail-Safe Output
Advanced Adjustments (continued) Step Seven FAIL-SAFE OUTPUT This function is used to set the current output to a designated state if the sensor loses measurement confidence. Selecting No Change will hold the current at its last valid current output. Selecting 20.5mA will force the current to jump to 20.5mA. -
Page 64: Minimum Current Output
Advanced Adjustments (continued) Step Seven MINIMUM CURRENT OUTPUT This function sets the minimum current output for the sensor at either 4.0mA or 3.9mA. Note: 4.0mA is the default minimum current output and is used in the majority of applications. 1) From the Main Screen, press OK to advance into the Main Menu. -
Page 65: Hart ® Operation Mode
Advanced Adjustments (continued) Step Seven ® HART OPERATION MODE ® ® This feature sets the HART address for operation as well as setting the output current for HART operation. ® HART Address o Standard – address 0 (default). Use in a single device per loop configuration. o Multi-drop –... -
Page 66: Create A New False Echo Curve
Advanced Adjustments (continued) Step Seven CREATE A NEW FALSE ECHO CURVE Obstructions in the tank (mixer blades, side wall weld joints or material build-up, submersible pumps, piping, other apparatus) or tall tank risers or installation fittings can create false echo returns that impair the sensor’s measurement. -
Page 67: Update An Existing False Echo Curve
Advanced Adjustments (continued) Step Seven UPDATE AN EXISTING FALSE ECHO CURVE This function enables an Existing False Echo Curve to be updated under the circumstances that the curve was created when the level was higher than an empty tank condition. Note: This function should only be performed to update an Existing False Echo Curve when the level is BELOW the original False Echo Curve. -
Page 68: Section Eight | Troubleshooting
Troubleshooting Step Eight TROUBLESHOOTING OVERVIEW These functions provide troubleshooting information; enable Echo Curve adjustments and deletion of settings. 1) Measurement Status a) Displays the signal strength (dB) of the echo returns and the functional status of the sensor including diagnostic error codes. 2) Peak Values a) Displays the lowest and highest level height that the sensor has measured in distance (d). -
Page 69: Measurement Status
Troubleshooting (continued) Step Eight MEASUREMENT STATUS This function displays the signal strength (dB) of the echo returns and the operational status of the sensor including diagnostic error codes. 1) From the Main Screen, press OK to advance into the Main Menu. -
Page 70: Peak Values
Troubleshooting (continued) Step Eight PEAK VALUES This function displays the lowest and highest level height that the sensor has measured in distance (d). 1) From the Main Screen, press OK to advance into the Main Menu. Press Right Arrow repeatedly until arrow is next to Diagnostics. -
Page 71: Simulation
Troubleshooting (continued) Step Eight SIMULATION This function simulates the 4-20mA current output, when the sensor is configured and installed on the tank, but the level cannot be changed easily for testing. Percent (of span), Current Output or Distance can be used as the input method to set the current output. -
Page 72: First Echo Adjustment
Troubleshooting (continued) Step Eight FIRST ECHO ADJUSTMENT This function increases or decreases the peak strength of the sensor’s First Echo return, and should only be performed if: 1) The liquid has a very high dielectric constant value and primarily stays in the near full range of the tank, resulting in a very high First Echo peak strength or;... -
Page 73: Echo Curve Zoom
Troubleshooting (continued) Step Eight ECHO CURVE ZOOM This function zooms in and magnifies an Echo Curve over a specified range. 1) From the Main Screen, press OK to advance into the Main Menu. 2) Press Right Arrow repeatedly until the arrow is next to Diagnostics. 3) Press OK to advance into Diagnostics. -
Page 74: False Echo Curve Delete
Troubleshooting (continued) Step Eight FALSE ECHO CURVE DELETE This function deletes a saved False Echo Curve. Note: If you are dissatisfied with the sensor’s performance (operating with a False Echo Curve), you may delete it, and consider creating a new False Echo Curve. 1) From the Main Screen, press OK to advance into the Main Menu. -
Page 75: Reset
Factory Settings Resets ALL settings and memory to factory default. Note: Only perform the Factory Setting after consulting with a Flowline Representative. Make sure to record all of your settings including the Distance Adjustment (4.9) setting before performing the Factory Reset. -
Page 76: Section Nine
Appendix Step Nine CONFIGURATION MENU The basic configuration functions are found under Configuration. The below tree shows the 10 function settings and how to navigate between them. Note: Press ESC to back-up to the previous level. MN301900 Rev B ... -
Page 77: Empty Configuration
Appendix (continued) Step Nine EMPTY CONFIGURATION This function adjusts the empty linear scaled current output (4mA) and provides two different adjustment methods: The primary method involves setting the value based upon the distance from the bottom of the sensor. This is a measured value using the units of operation for the sensor. -
Page 78: Medium
Appendix (continued) Step Nine MEDIUM This function identifies the type of media that the sensor is measuring including Liquid, Solid or Low Dielectric. Each has various settings to address the different reflective properties associated with each medium. Default is Liquid. The Liquid Medium function has the following settings: ... -
Page 79: Solids Medium
Appendix (continued) Step Nine The Solid Medium function has the following settings (and should not be performed without first consulting with the factory): Fast Level Change - Used when the media’s level rise or fall within the tank is greater than a rate of 1” per second (25.4mm/sec). -
Page 80: Low Dielectric Medium
Appendix (continued) Step Nine The Low Dielectric Medium function has the following settings (and should not be performed without first consulting with the factory): When the dielectric constant of the media is ≤ 4, the amplitude of the direct echo from the media may be low and difficult to detect. However, by measuring the echo reflected from the bottom of the tank, the liquid level can be measured. -
Page 81: Range
Appendix (continued) Step Nine SCALING This function sets the span values for 0% and 100% as an alternative method of adjusting the Empty Configuration and Full Configuration settings. Defaults are 0% and 100%. RANGE This function sets the maximum range that the sensor can measure which is typically the distance from the bottom of the sensor to the empty tank bottom. -
Page 82: Display Menu
Appendix (continued) Step Nine DISPLAY MENU This menu sets the Display Value and LCD Contrast. The below tree shows the 2 function settings and how to navigate between them. DISPLAY VALUE This function sets the Display Value. Default is (air gap) Distance. Below are the settings: ... -
Page 83: Diagnostics Menu
Appendix (continued) Step Nine DIAGNOSTICS MENU This menu provides information about the operational status of the sensor and diagnostic tools. The below tree shows the 5 function settings and how to navigate between them. PEAK VALUES This function displays the lowest and highest level height distances (d) that the sensor has measured during operation. -
Page 84: Echo Curve
Appendix (continued) Step Nine CHOOSE CURVE This function sets which information is displayed. Default is Echo Curve. Echo Curve - Shows the echo return energy received by the sensor over distance. False Echo Curve - Shows the false echo returns which are mapped out (not considered) by the sensor. -
Page 85: Service Menu
Appendix (continued) Step Nine SERVICE MENU This menu is used to make more advanced adjustments to the sensor. Note: Some of these functions should only be performed by a trained technician. MN301900 Rev B... -
Page 86: False Echo
Appendix (continued) Step Nine FALSE ECHO Obstructions in the tank (mixer blades, side wall weld joints or material build-up, submersible pumps, piping, other apparatus) or tall tank risers or installation fittings can create false echo returns that impair the sensor’s measurement. This function maps all echo returns within the tank, differentiating between good and false echoes, and stores those identified as false into the False Echo Curve, so they will not be considered in the level measurement. -
Page 87: Reset
Factory Settings – Used to reset ALL settings and memory to factory default. Note: Only perform the Factory Setting after consulting with a Flowline Representative. Make sure to record all of your settings including the Distance Adjustment (4.9) setting before performing the Factory Reset. -
Page 88: Information
This function allows the factory set distance of a measured value to be adjusted. Note: This function should only be performed by a trained technician. Never change this setting unless instructed by a Flowline representative. Be sure to record this setting if a Factory reset is performed. THRESHOLD This function allows the factory set echo threshold to be adjusted. -
Page 89: Factory Settings
Appendix (continued) Step Nine FACTORY SETTINGS Below are the Empty Configuration and Full Configuration factory settings for each sensor. Empty Configuration Full Configuration Series (4mA) (20mA) LR11 32.81’ (10m) 1.64’ (0.5m) LR16 98.42’ (30m) 1.64’ (0.5m) LR21 65.61’ (20m) 1.64’ (0.5m) LR26 114.83’... -
Page 90: Troubleshooting
Appendix (continued) Step Nine TROUBLESHOOTING Subject Comment Display Shows E14: Sensor is in a Fail-Safe state. The return sound pulses are not reaching the transducer. First, cycle power off and on, waiting 5 seconds between the off and on states. If problem persists, check the installation fitting against the Installation instructions in the manual. - Page 91 Appendix (continued) Step Nine Page Left Intentionally Blank MN301900 Rev B...
-
Page 92: Section Ten | Warranty, Returns And Limitations
PERSON IS AUTHORIZED TO MAKE ANY OTHER WARRANTIES OR REPRESENTATIONS ON BEHALF OF FLOWLINE. This warranty will be interpreted pursuant to the laws of the State of California. If any portion of this warranty is held to be invalid or unenforceable for any reason, such finding will not invalidate any other provision of this warranty.
