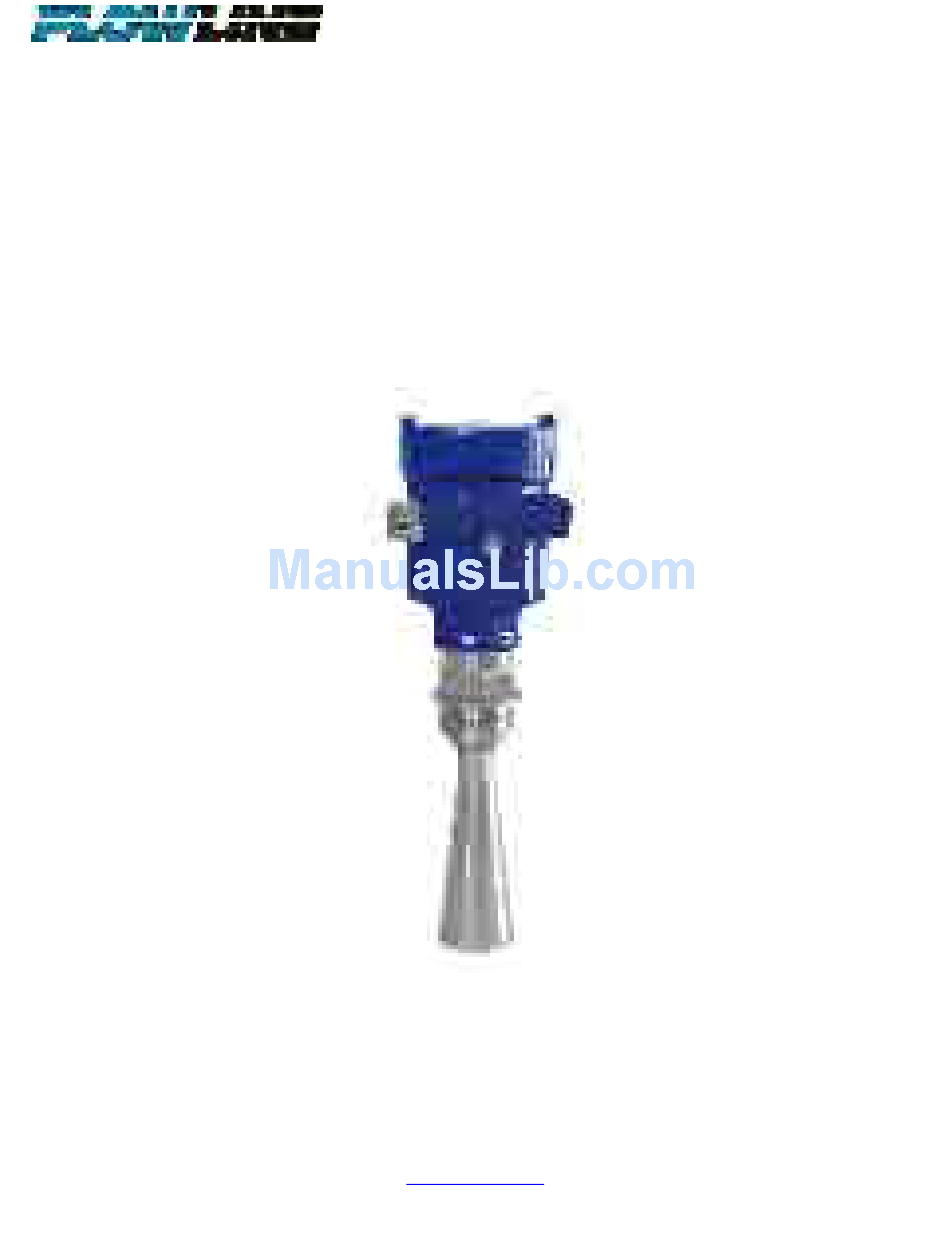

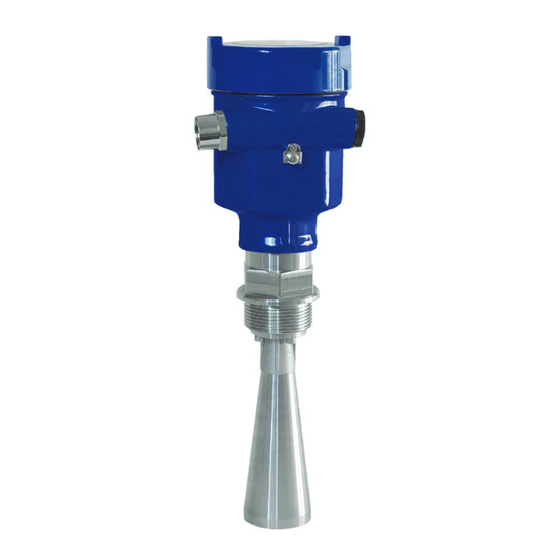

- Page 1 Rev A1 EchoPulse™ Radar Level Transmitter LR10, LR15, LR20, LR25 & LR30 Series Manual Flowline Inc. 10500 Humbolt Street Los Alamitos, CA 90720 Tel: (562) 598‐3015 Fax: (562) 431‐8507 www.flowline.com ...
-
Page 2: Table Of Contents
INTRODUCTION Section One Table of Contents Page Section One | Introduction: .............................. 2 Table of Contents: .............................. 2 Sensor Models: ................................ 4 Operating Principle: .............................. 4 Features: ................................... 4 Benefits: .................................. 4 Limitations: ................................ 4 Specifications: ................................ 5 Dimensions: ................................ 8 Safety Precautions: .............................. 11 Section Two | Getting Started: ............................ 12 Setup Overview: .............................. 12 Part Number: ................................ 14 Section Three | Install Sensor: ............................ 16 Installation Requirements: ... - Page 3 INTRODUCTION Section One Section Seven | Advanced Adjustments: ........................... 45 Advanced Adjustments Overview: .......................... 45 4‐20mA Reverse Output: ............................ 46 Fail‐Safe Output: .............................. 47 Minimum Current Output: ............................ 48 Create a New False Echo Curve: .......................... 49 Update an Existing False Echo Curve: ........................ 50 Section Eight | Troubleshooting: ............................ 51 Troubleshooting Overview: ............................. 51 Measurement Status: .............................. 52 Peak Values: ................................ 53 Simulation: ................................ 54 First Echo Adjustment: ............................ 55 Echo Curve Zoom: .............................. 56 False Echo Curve Delete: ............................ 57 ...
-
Page 4: Sensor Models
INTRODUCTION Section One Sensor Models Offered in five different models, EchoPulse™ is a general‐purpose, two‐wire, pulse radar level sensor that provides a continuous 4‐20 mA current output that’s proportional to the liquid level in a tank or sump. Make sure that the model purchased is appropriate for your application. Max FCC Series Beam Angle Material Mounting Application Range Compliance 32.81’ Corrosive liquids under LR10 22° PTFE 1‐1/2” NPT Part 15.209, Class A (10m) simple process conditions 18° (2” horn) ... -
Page 5: Specifications
INTRODUCTION Section One Specifications Measurement Range: Series LR10 LR15 LR20 LR25 LR30 32.81 ft 98.42 feet 65.61 feet 114.83 feet 98.42 feet Range (Max) (10m) (30m) (20m) (35m) (30m) Dead Band: 12” (30.48cm) / Factory Set Note: Can be lowered to 2” from the bottom of the antenna Measurement Accuracy: (see charts on Page 7) Series LR10 LR15 LR20 LR25 LR30 Accuracy ±5 mm ±3mm ±3mm ±10mm ±3mm Display Resolution: ... - Page 6 INTRODUCTION Section One Process Pressure: Series LR10 LR15 LR20 LR25 LR30 ‐14.5 to 43.5 psi ‐14.5 to 150 psi ‐14.5 to 72.5 psi ‐14.5 to 580 psi Pressure Atmospheric (‐1 to 3 bar) (‐1 to 10.3 bar) (‐1 to 5 bar) (‐1 to 40 bar) Vibration Proof: Mechanical vibration 10m/s, 10m /s, 10 ‐150 Hz Output: Signal Output: 4‐20mA Resolution: 1.6µA Fail‐Safe Setting: 20.5mA, 22mA or no change Load Resistance: See chart below Integration Time: 0‐40 sec, adjustable Power: Power Supply: 24 VDC (16 to 26 VDC) The same two‐wire connection cable carries power supply and current signal. ...
- Page 7 INTRODUCTION Section One Accuracy Charts Rev A1 MN301700 Page 7 of 72 ...
-
Page 8: Dimensions
INTRODUCTION Section One LR10 Series LR15 Series (Threaded) LR15 Series (Flange) LR15 Series (Threaded) Antenna Dimensions Diameter (X) Length (Y) 2” (48mm) 5.51” (140mm) 3” (78mm) 8.94” (227mm) 4” (98mm) 11.34” (288mm) LR15 Series (Flange) Dimensions Flange (A) Diameter (B) Thickness (C) 3” ANSI 7.5” (190.5mm) 0.88” (22.3mm) 4” ANSI 9.0” (228.6mm) 0.88” (22.3mm) 6” ANSI 11.0” (279.4mm) 0.94” (23.9mm) LR15 Series (Flange) Antenna Dimensions Diameter (D) Length (E) ... - Page 9 INTRODUCTION Section One LR20 Series LR25 Series LR20 Series Flange / Antenna Dimensions LR25 Series Flange / Antenna Dimensions Flange Diameter Thickness Length Flange Diameter Thickness Length (A) (B) (C) (D) (A) (B) (C) (D) 3” 7.5” 0.88” 6.50” 4” 9.0” 0.57” 5.71” ANSI ...
- Page 10 INTRODUCTION Section One LR30 Series Bracket (Top View) LR30 Series (Side View A) LR30 Series (Side View B) LR98 Series Display LR98 Series Display LR98 Series Display (Front View) (Bottom View) (Side View) Note: Both conduit ports feature M20x1.5 threads. LR98 ships with Liquid Tight Fitting (LM90‐1051) and LR97‐S003 Adapter (½” FNPT to M20x1.5). Use the adapter to interface to any ½” MNPT connection. ...
-
Page 11: Safety Precautions
INTRODUCTION Section One Safety Precautions About this Manual: PLEASE READ THE ENTIRE MANUAL PRIOR TO INSTALLING OR USING THIS PRODUCT. This manual includes information on the EchoPulse™ Radar Level Transmitter from FLOWLINE. Please refer to the part number located on the sensor label to verify the exact model, which you have purchased. User’s Responsibility for Safety: FLOWLINE manufactures a broad range of level sensing technologies. While each of these sensors is designed to operate in a wide variety of applications, it is the user’s responsibility to select a sensor ... -
Page 12: Setup Overview
1. Part Number (Section Two) 1. Prior to purchasing the sensor, you should have submitted a Level Application Questionnaire (www.flowline.com/LAQ), which based upon the information provided, may have resulted in a suggested part number. Where so, confirm that the suggested part number matches the part number of the purchased sensor. If any of the above does not match and/or meet your application ... - Page 13 GETTING STARTED Section Two 6. Advanced Adjustments (Section Seven) 1. Reverse 4‐20 mA Output a. Reverses the current out from 4mA @ bottom and 20mA @ top of tank to 20mA @ bottom and 4mA @ top of the tank. 2. Fail‐Safe Setting a. Allows for the presetting of the current output when a sensor failure occurs. 3. Minimum Current Setting a. Sets the minimum current output for the sensor. 4. Create a New False Echo Curve a. A method to map out false echo signal returns within the tank. 5. Update an Existing False Echo Curve a. A method to update false echo signal returns for a section of the tank that was not exposed during the creation of the original False Echo Curve. 7. Troubleshooting (Section Eight) 1. Measurement Status a. Determines the measurement reliability and general status of the sensor. 2. Peak Values a. Displays the lowest and highest level height that the sensor has measured in distance (d). 3. Simulation a. Simulates and helps to determine the accuracy and linearity of the sensor. 4.
-
Page 14: Part Number
GETTING STARTED Section Two Part Number Prior to purchasing the sensor, you should have submitted a Level Application Questionnaire (www.flowline.com/LAQ), which based upon the information provided, may have resulted in a suggested part number. Where so, confirm that the suggested part number matches the part number of the sensor. The part number can be found on the outside label on the sensor as shown below: LR10 Series LR15 Series LR20 Series LR25 Series LR30 Series The part number will indicate the size and type of mounting fitting required for installing the sensor. Refer to the below part number description for specific information. If any of the above does not match and/or meet your application requirements, please contact your distributor. LR10 ‐ 0 0 1 0 ... - Page 15 GETTING STARTED Section Two LR20 ‐ 0 3 1 0 ‐ _ 0 Housing Material 0 ‐ Aluminum Process Connection ‐ ANSI Flange Output ‐ 4‐20 mA Approval ‐ General Purpose (cTUVus) Flange Size ‐ 3" Flange (ANSI) ‐ 4" Flange (ANSI) LR25 ‐ 0 3 1 0 ‐ _ 0 Housing Material 0 ...
-
Page 16: Installation Requirements
INSTALL SENSOR Section Three Installation Requirements EchoPulse™ measures the distance between the sensor and the liquid surface below. Typically, all measurements from the sensor originate from the bottom of the antenna. Refer to the Measurement Reference Chart to determine the location where measurement originates on your sensor. To ensure reliable measurement, adhere to the following minimum installation requirements: 1. -
Page 17: Lr15 Antenna Preparation
INSTALL SENSOR Section Three LR15 Antenna Preparation The LR15 Series antenna (only) may be removed from the sensor to allow a flange or reducer bushing accessory to be attached to the 1 ½” NPT mounting threads and/or, the antenna may be inserted from within the inside of the tank through the bottom of an existing fitting (where the base of the antenna is too wide to pass through the fitting from the top). Referencing the illustrations, follow the below steps to disconnect, mount and reattach the antenna. 1) Loosen and remove the four (4) socket screws using a 3mm Allen wrench. 2) Carefully remove the antenna. Note: Do not remove or damage the plastic cone within the antenna socket. 3) Insert the antenna through the bottom of the fitting. Note: If doing so from the inside of the tank, make sure to secure it, so as to prevent the antenna from falling into the tank. 4) Connect the sensor to the antenna socket and reattach the four (4) screws using a 3mm Allen wrench. 5) Attach the sensor to the fitting as necessary. Add a Flange Remove Screws Remove Antenna Insert Antenna... -
Page 18: Mounting Position
INSTALL SENSOR Section Three Mounting Position The minimum distance (independent of beam angle) that the sensor can be mounted next to the straight side wall of the tank is 19.7” (500mm) as measured from the sensor centerline to the side wall. If you are not able to install the sensor more than 19.7” (500mm) away from the side wall, or if there is material build up on the side wall (within the beam angle), perform a False Echo Curve during initial configuration. ... - Page 19 INSTALL SENSOR Section Three Mount the Sensor Perpendicular to the Liquid Level Always mount the sensor perpendicular to the surface of the liquid. This will enable the return echoes to reach the sensor. Mounting the sensor off‐axis will result in weaker return echoes or no return echoes, depending on the degree of angle. Consider the Dead Band The sensor has a dead band (blanking distance) of 12” (30.48mm) as its default. The dead band can be lowered to within 2” of the bottom of the antenna (consult with factory). This is an up close distance where the sensor is not able ...
-
Page 20: Flange Riser Installation
INSTALL SENSOR Section Three Avoid Obstructions in the Beam Path Do not mount the sensor in or above the fill stream, other equipment (ladders, pumps, mixers) or structures within the beam path of the sensor. Such items can create false echo returns and prevent the actual level from being seen by the sensor. Find a location where the sensor has a clear view of the liquid surface. If your tank has other equipment near or within the beam path of the sensor, a False Echo Curve should be performed during initial configuration. Fill Stream Mounting Mounting on left incorrectly positions sensor above the tank fill stream inlet. Mounting on right is correct as the sensor has an unobstructed view to the liquid level below. Reflector Installation Mounting on left incorrectly allows the sensor to receive false echo returns from the step. Mounting on right has an angled baffle‐board ... -
Page 21: Beam Angle
INSTALL SENSOR Section Three Agitator or Mixer If there are agitators or mixers in the tank, the sensor should be mounted as far away from the blades as possible. Once the installation is complete, a False Echo Curve should be preformed while the agitator or mixer is in ... -
Page 22: Stand Pipe Installation
INSTALL SENSOR Section Three Stand Pipe Installation To avoid issues from turbulence, substantial foam or other equipment in the sensors beam path, install the sensor within a stand pipe (still well). A stand pipe installation can be used with liquids with a dielectric constant as low as 1.9. Note: The use of a stand pipe is not recommended with liquids that significantly coat or scale. As a rule, if the inside wall of the tank has material build‐up, then the inside of the stand pipe will also have build‐up that will affect the sensor’s operation. When installing a sensor in a stand pipe, follow the below guidelines: 1. The Full Configuration setting (20mA) must be below the upper vent hole and the bottom of the antenna. 2. The Empty Configuration setting (4mA) is typically placed at or near the bottom of the stand pipe. 3. The Stand Pipe function must be activated. It can be found under Medium in the Configuration Menu. The inner diameter of the stand pipe must be entered within this function. ... -
Page 23: Sight Glass Installation
INSTALL SENSOR Step Three Sight Glass Installation An alternative to a stand pipe is installing the sensor within a sight glass mounted outside of the tank. Sight glass installations can avoid issues from turbulence, substantial foam or other equipment in the sensors beam path. Note: The use of a sight glass is not recommended with liquids that significantly coat or scale. As a rule, if the inside wall of the tank has material build‐up, then the inside of the sight glass will also have build‐up that will affect the sensor’s operation. When installing a sensor in a sight glass, follow the below guidelines: 1. The Full Configuration setting (20mA) must be placed at or below the upper tank connection pipe. 2. The Empty Configuration setting (4mA) must be placed at or above the bottom tank connection pipe. 3. The Stand Pipe feature must be activated. It can be found under Medium in the Configuration Menu. The inner diameter of the sight glass must be entered within this function. 4. -
Page 24: Lr30 Sensor Installation
INSTALL SENSOR Section Three LR30 Sensor Installation The LR30 is unique within the EchoPulse™ sensor family. It is designed for use in water processing, lift stations, storm water and sump process conditions, which require the sensor to be installed in locations that are often below grade where flooding is a possibility. The design of the sensor allows for the unit to be submersed. While the sensor will not be damaged while submersed, the sensor will not provide correct level readings when submersed. Note: Do not attempt to open the sensor housing. Doing so will damage the seal, allow moisture into the sensor, and cause a sensor ... -
Page 25: Lr98 Display Installation
INSTALL SENSOR Section Three LR98 Display Installation The LR98 is a wall mount IP67 remote push button display module that’s used to configure and display level readings from the LR30 sensor. The LR98 should be mounted in a location where the display can be easily read. Note: The LR30 cable length is 32.8’ (10m) which is also the maximum signal distance between the LR30 and LR98. Take that into account when selecting the LR98 mounting location and use the below drill‐hole template for installing the display. LR98 Rear View Note: Make sure that the LR98 display is mounted in an above grade location where it will not become submersed. Rev A1 MN301700 Page 25 of 72 ... -
Page 26: Terminal Wiring
WIRE SENSOR Section Four Remove the Display To access the terminal strip and conduit ports, you first need to remove the display. Gently twist the display counter‐clockwise until you feel the display unlock from the housing. Next, lift the display from the housing to view the terminal strip and wire access ports. Note: This procedure applies to all sensors including the LR30 with its LR98 remote display. Note: There is an internal configuration difference between displays used by the EchoPulse™ sensors (LR10, LR15, LR20 and LR25 series) versus the display used with ... -
Page 27: Lr30 Sensor To Lr98 Display
WIRE SENSOR Section Four LR30 Sensor to LR98 Display The LR98 display is used with the LR30 sensor. The attached 8‐conductor sensor cable will wire directly into the display terminals. A shielded two‐wire cable (user supplied) is required to provide power to and the current output signal from the display. Note: LR98 ships with Liquid Tight Fitting (LM90‐1051) and ½” FNPT to M20x1.5 adapter (LR97‐S003), attached to the display. Use either type of connection to seal both conduit connections on the display. LR98 Display Removal LR98 Display Terminals Remove the display (as described on the previous page) to access the input and output terminals within the LR98 display. 2. Referencing the below diagram, connect the appropriately colored 6‐conductors (of 8 total) from the LR30 sensor cable to Out [(+) & (‐)] & terminals 1‐4 on the ... -
Page 28: Wiring To Displays, Controllers & Plcs
WIRE SENSOR Section Four Wiring to Displays, Controllers & PLC’s Below are examples of how to wire EchoPulse™ to common displays, controllers and PLC’s. DataView™ LI55 Series Commander™ LI90 Series Level Controller Multi‐Tank Level Controller DataLoop™ LI25 Series DataLoop™ LI25 Series Level Indicator Level Indicator (Without Backlight) (With Backlight) Page 28 of 72 MN301700 Rev A1 ... - Page 29 WIRE SENSOR Section Four Wiring to Displays, Controllers & PLC’s DataPoint™ LC52 Series DataPoint™ LC52 Series Level Controller Level Controller (*JWA Mode ‐ Factory Setting) (*JWB Mode) Generic Loop Generic PLC Powered Display * Refer to the DataPoint™ LC52 Series Level Controller manual for information on JWA mode and JWB mode settings in the controller. Rev A1 MN301700 Page 29 of 72 ...
-
Page 30: Basic Configuration Overview
CONFIGURATION Section Five Basic Configuration Overview Below are the 7 basic steps to configure the sensor for operation. Each step is described in detail on the following pages 1. Measure the Tank 1. Begin by measuring the key tank and fitting dimensions. Correct tank dimensions will result in accurate sensor measurement. 2. Set the Units of Measurement 1. Units can be configured in basic engineering units of length including Feet or Meters. 3. Set the Empty Configuration 1. This is the empty setting (4mA) for the tank. 4. Set the Full Configuration 1. This is the full setting (20mA) for the tank. 5. Set the Range (Maximum Range or MaxR) 1. This is the maximum measurement range for the sensor. The sensor will ignore all echo returns beyond this setting. 6. Set the Dead Band (Minimum Range or MinR) 1. This is the minimum measurement range for the sensor. The sensor will ignore all echo returns closer than this setting. 7. Check the Echo Curve 1. This is a quick diagnostic tool to determine if the sensor is reading the correct level. Page 30 of 72 MN301700 Rev A1 ... -
Page 31: Using The Display
CONFIGURATION Section Five Using the Display The display module features a dot matrix LCD display with 4 push buttons on a removable puck. Out of the box, the display indicates level in feet and depicts the level within the 4‐20mA span on a bar graph at the right side of the display. The four buttons perform the following functions: ESCAPE Up Arrow o Exit configuration mode ... -
Page 32: Changing Display Values
CONFIGURATION Section Five Changing Display Values The numeric values are set using the Right Arrow and Up Arrow buttons. Press the Right Arrow button to select the next digit and the Up Arrow button to increment the digit value. The digit being changed is highlighted. Press the Enter button to accept a setting or the Esc button to exit without saving changes. The below exercise illustrates how to change the value of an Empty configuration. Follow the steps to change the setting from 10.00 ft to 12.00 ft. This example applies to all functional settings starting from the Main Menu. ... -
Page 33: Step 1 - Measure The Tank
CONFIGURATION Section Five Step 1 ‐ Measure the Tank Measuring the tank is one of the most important aspects in Measurement Reference Chart configuring the sensor. When measuring the tank, take into LR15 Series LR10 Series (Threaded Version) account the location of the sensor with respect to fittings, risers, dome tops and bottoms, and identify where the measurements are taken from the sensor. Note: The location for measurement may be different among different sensor Series, ... -
Page 34: Step 2 - Set The Units Of Measurement
CONFIGURATION Section Five Step 2 ‐ Set the Units of Measurement This function sets the units for all measurement values to be entered into the sensor. 1. From the Main Screen, press Enter to advance into the Main Menu. 2. Press Right Arrow repeatedly until the arrow is next to Service. 3. Press Enter to advance into the Service menu (and Echo curve will appear). 4. Press Right Arrow repeatedly until the menu shows Units of Measurement. 5. Press Enter to advance into Units of Measurement. 6. Press Right Arrow to change the setting between feet [ft (d)] and meters [m (d)]. 7. When the units are correct, press Enter to save the setting. 8. -
Page 35: Step 3 - Set The Empty Configuration (4Ma)
CONFIGURATION Section Five Step 3 ‐ Set the Empty Configuration (4mA) This function sets the Empty Configuration point for the sensor corresponding 4mA to empty. 1. From the Main Screen, press Enter to advance into the Main Menu. Press Enter to advance into the Configuration Menu. Press Enter to advance into Empty Configuration. The first percentage segment will be highlighted. Press Enter again to switch to the distance (d) setting. 5. Press Right Arrow to move one segment ... -
Page 36: Step 4 - Set The Full Configuration (20Ma)
CONFIGURATION Section Five Step 4 ‐ Set the Full Configuration (20mA) This function sets the Full Configuration point for the sensor corresponding 20mA to full. From the Main Screen, press Enter to advance into the Main Menu. Press Enter to advance into the Configuration Menu. Press Right Arrow to advance into Full Configuration. Press Enter to advance into Full Configuration. The first percentage segment will be highlighted. Press Enter again to switch to the distance (d) setting. -
Page 37: Step 5 - Set The Range (Maximum Range)
CONFIGURATION Section Five Step 5 ‐ Set the Range (Maximum Range) This function sets the maximum operational range (MaxR) for the sensor. This setting defines the maximum distance that the sensor will detect valid echo returns. 1. From the Main Screen, press Enter to advance into the Main Menu. 2. Press Enter to advance into the Configuration Menu. 3. Press Right Arrow repeatedly until the menu shows Range. 4. Press Enter to edit Range value. The first segment will be highlighted. 5. Press Right Arrow to move one segment to the right. Right Arrow will scroll left to right and then back to the first segment. 6. Press Up Arrow to increase the value of the number highlighted. Up Arrow will scroll from 0 to 9 and back again. 7. When the value is correct, press Enter to save the setting. When done, press ESC to return to the Main Menu, and press ESC a second time to return to the Main Screen or; if you want to advance directly into Dead Band, press Right Arrow repeatedly until Dead Band appears. Rev A1 MN301700 ... -
Page 38: Step 6 - Set The Dead Band
CONFIGURATION Section Five Step 6 ‐ Set the Dead Band This function sets the Dead Band for the sensor. This setting defines the minimum distance that the sensor will detect valid echo returns. While the Dead Band setting is typically configured to be equal with or slightly above (higher in the tank) the Full Configuration setting (20 mA), its functions independently of Full Configuration. Note: If the Dead Band setting is placed below the Full Configuration setting, then the sensor will not measure above the Dead Band. Dead Band Equals Full Config. Dead Band Below Full Config. Dead Band Above Full Config. 1. From the Main Screen, press Enter to advance into the Main Menu. 2. Press Enter to advance into the Configuration Menu. 3. Press Right Arrow repeatedly until menu shows Dead Band. 4. Press Enter to edit Dead Band value. The first segment will be highlighted. 5. Press Right Arrow to move one segment to the right. Right Arrow will scroll left to right and then back to the first segment. 6. Press Up Arrow to increase the value of the number highlighted. Up Arrow will scroll from 0 to 9 and back again. 7. When the value is correct, press Enter to save the setting. When done, press ESC to return to the Main Menu, and press ESC a second time to return to the Main Screen. ... -
Page 39: Step 7 - Check The Echo Curve
CONFIGURATION Section Five Step 7 ‐ Check the Echo Curve This function displays the primary echo return(s) that the sensor is seeing graphically, the location and amplitude of the return(s), and the numeric air gap distance from the sensor’s measurement location to the liquid level below. Note: This step should only be performed after having completed the prior six configuration steps with the sensor installed on the tank. Additionally, if the sensor was installed in a stand pipe or sight glass, now go forward to Section Six and turn on the still well function (Sensor Installed in a Stand Pipe or Sight Glass) before continuing with this step. 1. From the Main Screen, press ESC and the Echo Curve Screen will appear. The curve graphically represents the primary echo return(s) amplitude (Y‐axis) over distance (X‐axis). Above the echo return peak is a floating arrow and triangle symbol (which under normal conditions are often merged together or ... -
Page 40: Process Adjustments Overview
PROCESS ADJUSTMENTS Section Six Process Adjustments Overview These optional functions are intended to improve sensor performance in applications with the below process and/or installation characteristics. Note: These adjustments should only be performed when (after having completed the seven configuration steps described in Section Five with the sensor installed on the tank) the sensor is not performing to your satisfaction. Where so, perform the following applicable Process Adjustments. 1. Fast Filling or Emptying of the Liquid 2. Liquid Surface is Turbulent or Agitated Surface 3. Foam on the Surface of the Liquid 4. Sensor Installed in a Stand Pipe or Sight Glass Page 40 of 72 MN301700 Rev A1 ... -
Page 41: Fast Filling Or Emptying Of Liquid
PROCESS ADJUSTMENTS Section Six Fast Filling or Emptying of Liquid If the speed of liquid level rise or fall within the tank is greater than a rate of 1” per second (25.4mm/sec), set Fast Level Change to Yes. Note: Fast filling or emptying can occur when multiple pumps are operating or when a weather event increases the amount of liquid entering the tank. 1. From the Main Screen, press Enter to advance Normal Level Change into the Main Menu. Press Enter to advance into the Configuration Menu. Press Right Arrow to advance from Empty Configuration to Full Configuration. Press Right Arrow to advance from Full Configuration to Medium. Press Enter to advance into Medium. Liquid, Solid, Low Dielectric will appear. -
Page 42: Liquid Surface Is Turbulent Or Agitated
PROCESS ADJUSTMENTS Section Six Liquid Surface is Turbulent or Agitated If the liquid surface is turbulent or agitated, set Turbulent Surface to Yes. Note: Turbulent or agitated surfaces can occur when tanks are filled from the top without a down pipe, or when a mixer or air agitation is used within the tank. From the Main Screen, press Enter to Turbulence from Tank Fill advance into the Main Menu. Press Enter to advance into the Configuration Menu. -
Page 43: Foam On The Surface Of The Liquid
PROCESS ADJUSTMENTS Section Six Foam on the Surface of the Liquid If the entire liquid surface is covered with foam, set Foam to Yes. This is not necessary if the liquid surface is partially covered with foam. Note: Foam can occur when tanks are filled from the top without a down‐fill pipe, or when a mixer or air agitation is used within the tank. From the Main Screen, press Enter to advance Heavy Foam – If foam covers into the Main Menu. the entire surface of the liquid, set Foam to Yes. Press Enter to advance into the Configuration Menu. Press Right Arrow to advance from Empty Configuration to Full Configuration. Press Right Arrow to advance from Full Configuration to Medium. Press Enter to advance into Medium. Liquid, Solid, Low Dielectric will appear. ... -
Page 44: Sensor Installed In A Stand Pipe Or Sight Glass
PROCESS ADJUSTMENTS Section Six Sensor Installed in a Stand Pipe or Sight Glass If the sensor is installed in a metal stand pipe (still well) or metal sight glass, set Still Well to yes and enter the inner Pipe Diameter dimension. Note: The Pipe Diameter will be entered in millimeters. For example, a 3” pipe can have an inner diameter of 3.042”. To convert inches to mm, multiple inches by 25.4mm. Thus, a 3.042” pipe inner diameter equals 77.26mm. You would then enter the value of 77mm. 1. From the Main Screen, press Enter to advance Still Well or Stand Pipe into the Main Menu. Press Enter to advance into the Configuration Menu. Press Right Arrow repeatedly until menu shows Medium. Press Enter to advance into Medium. Liquid, Solid & Low Dielectric will appear. -
Page 45: Advanced Adjustments Overview
ADVANCED ADJUSTMENTS Section Seven Advanced Adjustments Overview These optional functions are used to change the sensor output characteristics, or Create a False Echo Curve to filter out false echo returns within the tank (improving sensor performance), or Update an existing False Echo Curve filter if the original filter was not created during an empty tank condition. 1. 4‐20 mA Rev Output ‐ Reverses the current output from 4mA @ bottom and 20mA @ top of tank to 20mA @ bottom and 4mA @ top of the tank. 2. Fail‐Safe ‐ Allows for the presetting of the current output when a sensor failure occurs. Options are no change to current, 20.5mA or 22mA. ... -
Page 46: 4-20Ma Reverse Output
ADVANCED ADJUSTMENTS Section Seven 4‐20 mA Reverse Output This function sets the current output at either 4‐20 mA or 20‐4 mA. Selecting 4‐20 mA sets the output with 4mA @ bottom and 20mA @ top of the tank. This is the standard output used in the majority of applications. Selecting 20‐4 mA sets the output with 20mA @ bottom and 4mA @ top of the tank. This is an optional output sometimes used in applications where the level is maintained at a high level. ... -
Page 47: Fail-Safe Output
ADVANCED ADJUSTMENTS Section Seven Fail‐Safe Output This function is used to set the current output to a designated state if the sensor loses measurement confidence. Selecting No Change will hold the current at its last valid current output. Selecting 20.5mA will force the current to jump to 20.5mA. Selecting 22.5 mA will force the current to jump to 22.5 mA. Note: The latter two high current output states are above the standard 4‐20 mA operational range, and can be used to indicate that a failure has occurred. 1. From the Main Screen, press Enter to advance into the Main Menu Press Right Arrow repeatedly until the arrow is next to Service. ... -
Page 48: Minimum Current Output
ADVANCED ADJUSTMENTS Section Seven Minimum Current Output This function sets the minimum current output for the sensor at either 4.0mA or 3.9mA. Note: 4.0mA is the default minimum current output and is used in the majority of applications. 1. From the Main Screen, press Enter to advance into the Main Menu. Press Right Arrow repeatedly until the arrow is next to Service. ... -
Page 49: Create A New False Echo Curve
ADVANCED ADJUSTMENTS Section Seven Create a New False Echo Curve Obstructions in the tank (mixer blades, side wall weld joints or material build‐up, submersible pumps, piping, other apparatus) or tall tank risers or installation fittings can create false echo returns that impair the sensor’s measurement. This function maps all echo returns within the tank, differentiating between good and false echoes, and stores those identified as false into the False Echo Curve, so they will not be considered in the level measurement. Note: A False Echo Curve should only be performed when the tank is empty so that all false reflections will be detected. Before starting, ... -
Page 50: Update An Existing False Echo Curve
ADVANCED ADJUSTMENTS Section Seven Update an Existing False Echo Curve This function enables an Existing False Echo Curve to be updated under the circumstances that the curve was created when the level was higher than an empty tank condition. Note: This function should only be performed to update an Existing False Echo Curve when the level is BELOW the original False Echo Curve. Do not use this function to update an Existing False Echo Curve when the level is above the original False Echo Curve. Before starting, measure and note the exact distance from the sensor’s measurement location to the liquid surface. Setting the distance value too large or too short can force the sensor into ignoring the true level. Original False Echo Curve 1. From the Main Screen, press Enter to advance into the Main Menu. Press Right Arrow repeatedly until the arrow is next to Service. Press Enter to advance into Service Menu and Echo Curve will appear. Press Enter to make a change to the Echo Curve settings. 5. Press Right Arrow repeatedly until the arrow is next to Update. ... -
Page 51: Troubleshooting Overview
TROUBLESHOOTING Section Eight Troubleshooting Overview These functions provide troubleshooting information; enable Echo Curve adjustments and deletion of settings. 1. Measurement Status 1. Displays the signal strength (dB) of the echo returns and the functional status of the sensor including diagnostic error codes. 2. Peak Values 1. Displays the lowest and highest level height that the sensor has measured in distance (d). 3. Simulation 1. Simulates the 4‐20mA current output from percent of span, current or distance inputs. 4. First Echo Adjustment 1. Provides the ability to increase or decrease the peak signal strength of the First Echo return. 5. Echo Curve Zoom 1. - Page 52 TROUBLESHOOTING Section Eight Measurement Status This function displays the signal strength (dB) of the echo returns and the operational status of the sensor including diagnostic error codes. 1. From the Main Screen, press Enter to advance into the Main Menu. Press Right Arrow repeatedly until the arrow is next to Diagnostics. 3. Press Enter to advance into Diagnostics. 4. Press Right Arrow to switch to Measurement Status. 5. Measurement reliability indicates the decibel (dB) strength of RF energy that’s reflecting back to the sensor less any noise. For reliable function, the dB value should be ≥ 10 dB. Sensor status indicates the functional status of the sensor (either OK or error code) 7. When done, press ...
- Page 53 TROUBLESHOOTING Section Eight Peak Values This function displays the lowest and highest level height that the sensor has measured in distance (d). 1. From the Main Screen, press Enter to advance into the Main Menu. Press Right Arrow repeatedly until arrow is next to Diagnostics. Press Enter to advance into Diagnostics and view Peak Values. 4. Distance‐min is the lowest measured level and Distance‐max is the highest measured level. Confirm that these values are within the sensor’s operational range. 5. If the values appear too high or too low, check the tank for obstructions that could cause that problem. ...
- Page 54 TROUBLESHOOTING Section Eight Simulation This function simulates the 4‐20mA current output, when the sensor is configured and installed on the tank, but the level cannot be changed easily for testing. Percent (of span), Current Output or Distance can be used as the input method to set the current output. ...
- Page 55 TROUBLESHOOTING Section Eight First Echo Adjustment This function increases or decreases the peak strength of the sensor’s First Echo return, and should only be performed if: 1) The liquid has a very high dielectric constant value and primarily stays in the near full range of the tank, resulting in a very high First Echo peak strength or; 2) Process conditions, such as when the liquid has a very low dielectric constant value, or when obstructions, heavy foam or turbulence exist in the tank, resulting in little or no First Echo peak strength. Note: Under condition one (Example 1), it can be beneficial to decrease the First Echo peak strength. Under condition two (Example 3), it can be beneficial to increase the First Echo peak strength. Example 1 1. From the Main Screen, press Enter to advance into the Main Menu. Press Enter to advance into the Configuration Menu. Press Right Arrow to move from Empty Configuration to Full Configuration. First Echo peak is very strong and can be reduced. Press Right Arrow to move from Full ...
- Page 56 TROUBLESHOOTING Section Eight Echo Curve Zoom This function zooms in and magnifies an Echo Curve over a specified range. 1. From the Main Screen, press Enter to advance into the Main Menu. 2. Press Right Arrow repeatedly until the arrow is next to Diagnostics. 3. Press Enter to advance into Diagnostics. 4. Press Right Arrow repeatedly until Echo Curve appears. 5. Press Enter to advance into Echo Curve. 6. Use the Right Arrow to scroll among the three settings (X‐ zoom, Y‐zoom, Unzoom). 7. Press Enter to select X‐zoom. 8.
- Page 57 TROUBLESHOOTING Section Eight False Echo Curve Delete This function deletes a saved False Echo Curve. Note: If you are dissatisfied with the sensor’s performance (operating with a False Echo Curve), you may delete it, and consider creating a new False Echo Curve. 1. From the Main Screen, press Enter to advance into the Main Menu. Press Right Arrow repeatedly until the arrow is next to Service. Press Enter to advance into Service and Echo Curve will appear. 4. Press Enter to make a change to Echo Curve. 5. Press Enter to select Delete. 6. Press Enter to Delete All. Press ESC to return to Service and press ESC a second time to return to the Main Screen. ...
- Page 58 TROUBLESHOOTING Section Eight Reset This function resets the sensor’s configuration (basic or factory) settings and memory (peak values measured). 1. From the Main Screen, press Enter to advance into the Main Menu. Press Right Arrow repeatedly until the arrow is next to Service. 3. Press Enter to advance into Service. 4. Press Right Arrow repeatedly until Reset appears. 5. Press Enter to advance into Reset. Use the Right Arrow to scroll among the three reset types (Basic Reset, Factory Settings, Peak Value Meas). 1. Basic Reset Resets basic configuration settings, process adjustment settings, and peak level values in ...
-
Page 59: Section Nine
APPENDIX Section Nine Configuration Menu The basic configuration functions are found under Configuration. The below tree shows the 10 function settings and how to navigate between them. Note: Press ESCAPE to back‐up to the previous level. Rev A1 MN301700 Page 59 of 72 ... -
Page 60: Empty Configuration
APPENDIX Section Nine Empty Configuration This function adjusts the empty linear scaled current output (4mA) and provides two different adjustment methods: The primary method involves setting the value based upon the distance from the bottom of the sensor. This is a measured value using the units of operation for the sensor. For example, if the units of operation are in meters, then the setting must also be in meters. A second method involves setting a value based upon the percentage of the Range value. For example, if the Range is set to 10ft, then a 10% setting is equivalent to 1ft of liquid height or 9ft of air gap away from the sensor. Note: Set the Range value before setting the Empty Configuration value. Shows the percentage of empty based upon the Range setting. Shows the distance from the bottom of the sensor to the empty tank. Shows the air gap distance from the liquid to the bottom of the sensor. Full Configuration ... -
Page 61: Medium
APPENDIX Section Nine Medium This function identifies the type of media that the sensor is measuring including Liquid, Solid or Low Dielectric. Each has various settings to address the different reflective properties associated with each medium. Default is Liquid. The Liquid Medium function has the following settings: Fast Level Change ‐ Used when the media’s level rise or fall within the tank is greater than a rate of 1” per second (25.4mm/sec). Selections are YES or NO. Default is NO. First Echo ‐ Used when the sensor has difficulty seeing the ... -
Page 62: Low Dielectric Medium
APPENDIX Section Nine The Solid Medium function has the following settings (and should not be performed without first consulting with the factory): Fast Level Change ‐ Used when the media’s level rise or fall within the tank is greater than a rate of 1” per second (25.4mm/sec). Selections are YES or NO. Default is NO. First Echo ‐ Used when the sensor has difficulty seeing the first echo return. This setting adjusts the peak strength (dB) of the first echo. Default is Normal. Below ... -
Page 63: Dampen
APPENDIX Section Nine Dampen This function sets the sampling rate for which the sensor updates the current output. The value is entered in seconds. Default is 6 seconds. Decreasing the value will make the output more responsive to level changes. Increasing the value will make the output less responsive to level changes. Output Mapping This function sets the correlation between the measured value and the current output. Selections are Linear or Non‐Linear. Default is Linear. Keep the setting on Linear. Note: This setting should not be changed without first consulting with the factory. ... -
Page 64: Display Menu
APPENDIX Section Nine Display Menu This menu sets the Display Value and LCD Contrast. The below tree shows the 2 function settings and how to navigate between them. Display Value This function sets the Display Value. Default is (air gap) Distance. Below are the settings: OFF ‐ Turns the display OFF. Distance ‐ Displays the distance from the bottom of the sensor to the liquid surface. Height ‐ Displays the height of media in the tank from the Maximum Range Setting. Percent Span ‐ Displays the level based on its percentage of operational span. Map Percentage ‐ Displays the level based on its percentage of operational range. Scaled ‐ Displays the level based on a scaled value between 0 (empty) and 10 (full). Current Output ‐ Displays the 4‐20 mA current output. LCD Contrast This function sets the B/W display contrast. Press the Up Arrow to increase the contrast, and press the Right Arrow to decrease the contrast. Page 64 of 72 MN301700 ... -
Page 65: Diagnostics Menu
APPENDIX Section Nine Diagnostics Menu This menu provides information about the operational status of the sensor and diagnostic tools. The below tree shows the 5 function settings and how to navigate between them. Peak Values This function displays the lowest and highest level height distances (d) that the sensor has measured during operation. To reset these values, use the Reset >> Peak Measured Values option found under the Service Menu. Measurement Status This function displays the signal strength (dB) of the echo returns (Measurement Reliability) and the operational status of the sensor (Sensor Status). A signal strength of 10dB or higher is acceptable. Anything under 10dB is considered a weak signal. The cause of a weak signal is often obstructions within the beam path or a poor installation. ... -
Page 66: Echo Curve
APPENDIX Section Nine Choose Curve This function sets which information is displayed. Default is Echo Curve. Echo Curve ‐ Shows the echo return energy received by the sensor over distance. False Echo Curve ‐ Shows the false echo returns which are mapped out (not considered) by the sensor. Output Trend ‐ Shows recent history of where the past level readings have occurred. Echo Curve This function shows the Echo Curve and allows the user to zoom in and magnify information along the X‐axis and Y‐axis. X‐zoom ‐ Expands echo information along the X‐axis. Used to determine the location of an echo. ... -
Page 67: Service Menu
APPENDIX Section Nine Service Menu This menu is used to make more advanced adjustments to the sensor. Note: Some of these functions should only be performed by a trained technician. Rev A1 MN301700 Page 67 of 72 ... -
Page 68: False Echo
APPENDIX Section Nine False Echo Obstructions in the tank (mixer blades, side wall weld joints or material build‐up, submersible pumps, piping, other apparatus) or tall tank risers or installation fittings can create false echo returns that impair the sensor’s measurement. This function maps all echo ... -
Page 69: Reset
APPENDIX Section Nine Reset This function allows the configuration (basic or factory) settings and memory (peak values measured) to be reset. Below are the three reset types: Basic Reset – Used to reset the basic configuration settings, process adjustment settings, and peak level values ... -
Page 70: Information
APPENDIX Section Nine Distance Adjustment This function allows the factory set distance of a measured value to be adjusted. Note: This function should only be performed by a trained technician. Threshold This function allows the factory set echo threshold to be adjusted. Note: This function should only be performed by a trained technician. Information This function displays basic information about your sensor including ... -
Page 71: Notes
APPENDIX Section Nine Notes Subject Comment ... -
Page 72: Warranty
Flowline have attempted to repair; 5) have been involved in accidents or natural disasters; or 6) are damaged during return shipment to Flowline. Flowline reserves the right to unilaterally waive this warranty and dispose of any product returned to Flowline where: 1) there is evidence of a potentially hazardous material present with the product; or 2) the product has remained unclaimed at Flowline for more ...
