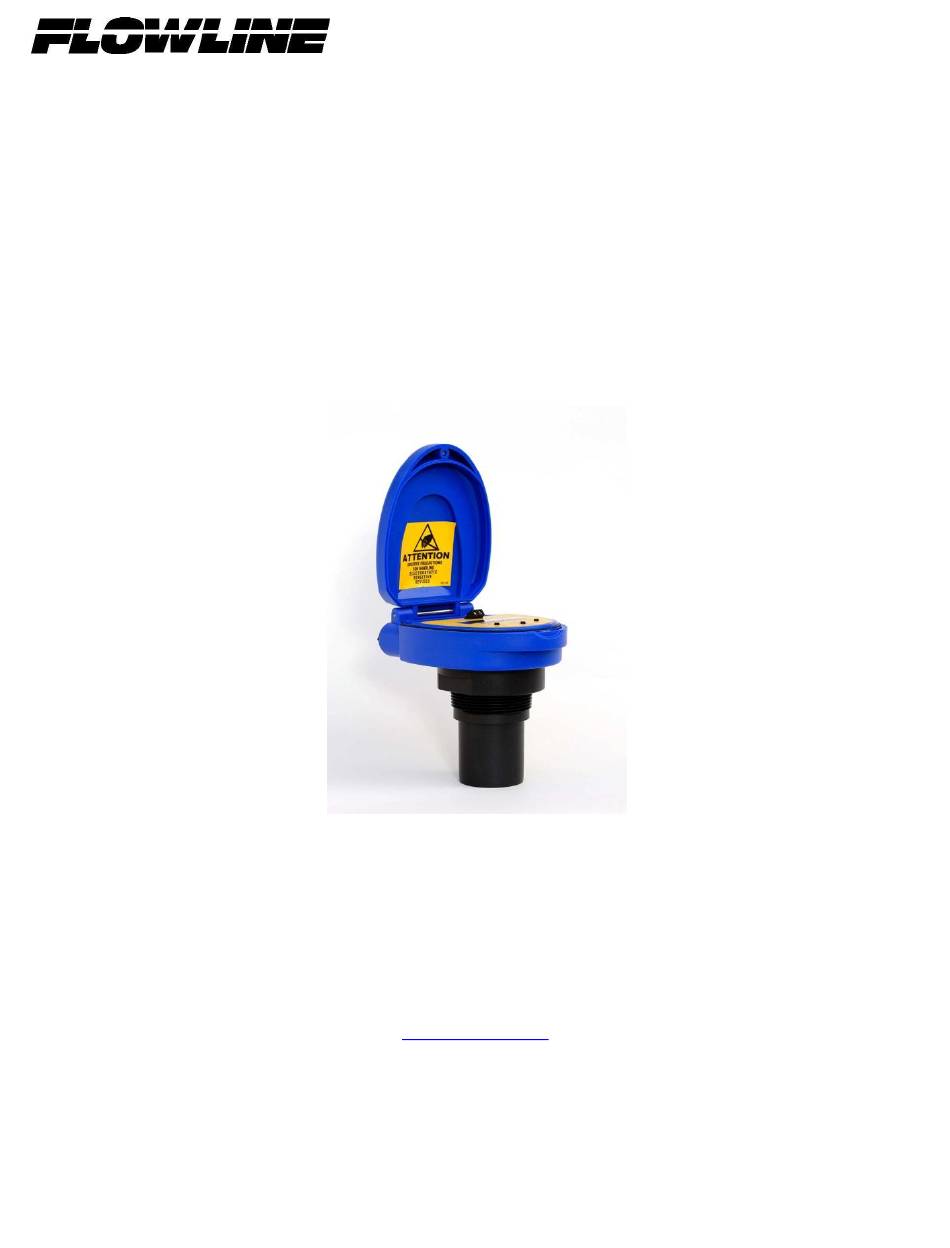

- Page 1 EchoSpan LU80-5101, LU8-5161,LU81-5101, LU81-5161, LU83-5101, LU83-5161, LU84-5101 & LU84-5161 Series Revision A.1 31 MAR 11 EchoSpan 1 of 22 Rev B MN301550...
- Page 2 On-line Warranty Registration can be found on the Flowline home page. If for some reason your product must be returned for factory service, go to the Flowline website to receive a Material Return Authorization number (MRA), providing the following information: 1.
- Page 3 Warranty Flowline warrants to the original purchaser of its products that such products will be free from defects in material and workmanship under normal use and service in accordance with instructions furnished by Flowline for a period, which is equal to the shorter of one year from the date of purchase of such products or two years from the date of manufacture of such products.
-
Page 4: Table Of Contents
Introduction: The EchoSpan is a general-purpose ultrasonic level transmitter that provides a loop powered 4-20 mA output. The 4-20 mA output can be used to provide the proportional level of liquid in any tank or vessel. The signal can be connected to any device that accepts a loop powered 4-20 mA signal, such as a PLC, SCADA, DCS, display, controller, etc. -
Page 5: Introduction
User’s Responsibility for Safety: FLOWLINE manufactures a broad range of level sensing technologies. While each of these sensors is designed to operate in a wide variety of applications, it is the user’s responsibility to select a sensor model that is appropriate for the application, install it properly, perform tests of the installed system, and maintain all components. - Page 6 Make a Fail-Safe System: Design a fail-safe system that accommodates the possibility of switch and/or power failure. FLOWLINE recommends the use of redundant backup systems and alarms in addition to the primary system. Flammable, Explosive or Hazardous Applications: EchoSpan should not be used within classified hazardous environments.
-
Page 7: Specifications
Specifications: Range: LU80: 4" to 9.8' Supply voltage: 12-28 VDC (10 cm to 3m) Loop resistance: 500 Ohms @ 24 LU81: 8" to 18.0' (20 cm to 5.5m) Signal output: 4-20 mA, two-wire LU83: 8" to 26.4' Signal invert: 4-20 mA / 20-4 mA (20 cm to 8m) Signal fail-safe: 4mA, 20 mA, 21... -
Page 8: Wiring
Wiring to Display, Controllers & PLC’s Below is a quick review of wiring the EchoSpan to common display, controllers and PLC’s. DataView LI55 Series Commander LI90 Series Level Controller Multi-Tank Level Controller DataLoop LI25 Series DataLoopLI25 Series Level Indicator Level Indicator without the backlight with the backlight 8 of 22... - Page 9 Wiring to Display, Controllers & PLC’s (continued) DataPoint LC52 Series DataPoint LC52 Series Level Controller Level Controller JWA mode (Factory Setting) JWB mode Generic Loop Generic PLC Powered Display 31 MAR 11 EchoSpan 9 of 22 Rev B MN301550...
-
Page 10: Getting Started
General notes for electrical connections, usage and safety: Where personal safety or significant property damage can occur due to a spill, the installation must have a redundant backup safety system installed. Wiring should always be completed by a licensed electrician. ... -
Page 11: Feature Guide
Feature Guide: FEATURE ACCESS BY Easy to use MENU Press and hold SELECT key until MENU is displayed approximately 5 seconds. The MENU items will rotate through display, press SELECT to change an item. Many UNITS of In the MENU mode, press SELECT when UNITS is measurement. -
Page 12: How To Enter The Menu
DIAG – This is a production test feature used by the factory to confirm operation. This mode should only be used when supervised by a Flowline representative. o RESET – Will reset the EchoSpan back to its original factory setting. -
Page 13: How To Configure The Display
Note: Reading the level of liquid in Percent: Flowline recommends that when selecting PERCENT, configure the HEIGHT and FILL-H settings before selecting PERCENT in order to span the EchoSpan for your application requirements. When in PERCENT, the operational span will be based upon the last TANK settings, typically the factory settings for HEIGHT and FILL-H. -
Page 14: How To Configure The Operational Range (Height & Fill-H)
Sensor Height Fill-Height Note: Flowline recommends that when selecting PERCENT, configure the Height and Fill-H settings before selecting PERCENT in order to span the EchoSpan for your application requirements. When PERCENT is selected, the TANK settings (Height and Fill-H) will be disabled. -
Page 15: How To Reverse The Current Output (Rev Ma)
How to set a Reverse the Current Output: The default for EchoSpan is to have 4 mA at Empty and 20 mA at Full. This is the normal (NORM) setting. The output can be reversed (REV) with 20 mA at Empty and 4 mA at Full. -
Page 16: How To Set Target Calibration (Tg Cal)
How to set using Target Calibration (Empty): Instead of measuring for Empty tank, the Empty distance can be set automatically. This method requires that the tank be Empty or at the level that is considered Empty in the application. To set TG Empty, follow the instructions below. 1. -
Page 17: Installation
LM52-1400 (2” thread x 1” thread) or LM52-2400 (3” thread x 2” thread). Metal Tanks (LU80 series) Flowline ultrasonic transmitters have been optimized for use in non-metallic fittings. 1. For best performance, avoid the use of metallic fittings. a. Use a plastic 2” x 1” reducer bushing, such as the LM52-1400 or a plastic 1” flange, such as the LM52-1850 for metallic tanks. -
Page 18: Fitting Selection
Fitting Selection: Check the part number to determine the required fitting mount size and thread type. EchoSpan is commonly installed in tank adapters, flanges, brackets or standpipes. Note: Always include the gasket when installing the EchoSpan. 1. Tank Adapter: Select a tank adapter fitting, such as the LM52-1890 for the LU80 series or the LM52-2890 for the LU81, LU83 &... - Page 19 3. Flange (LU80 series): If installing on a flange, select a flange with a thread that is above the plane of the flange, such as the LM52-1850. a. The LU81, LU81 & LU83 series works well with Flange installations. b. Avoid the use of blind flanges with tapped threads or flanges where the threads are even with the plane of the flange, such as the Banjo 1"...
- Page 20 5. Stand Pipe: A standpipe maybe used to dampen turbulence or when foam is present in the application. a. Pipe can be made of any material. b. Select a minimum 3” ID pipe for the stand pipe. i. A 2” pipe is usable with the LU80 series, but is the minimum. ii.
-
Page 21: Appendix
Diagnostics (DIAG) Parameters: This mode runs diagnostic tests that confirm operation of EchoSpan. This mode should only be used when supervised by a Flowline representative. Reset: EchoSpan enables the end user to reset the entire configuration back to the original factory settings. -
Page 22: Troubleshooting
Troubleshooting: PROBLEM SOLUTION TANK does not appear on Units function is set for PERCENT on EchoSpan: When Units is set for PERCENT, the TANK function is disabled. To re-enable the main menu: TANK, change units to INCHES, CM, FEET or METERS. Display shows FULL: Level of liquid is above the FILL-H setting: Check the FILL-H setting, making sure the FILL-H setting is high enough so the...
