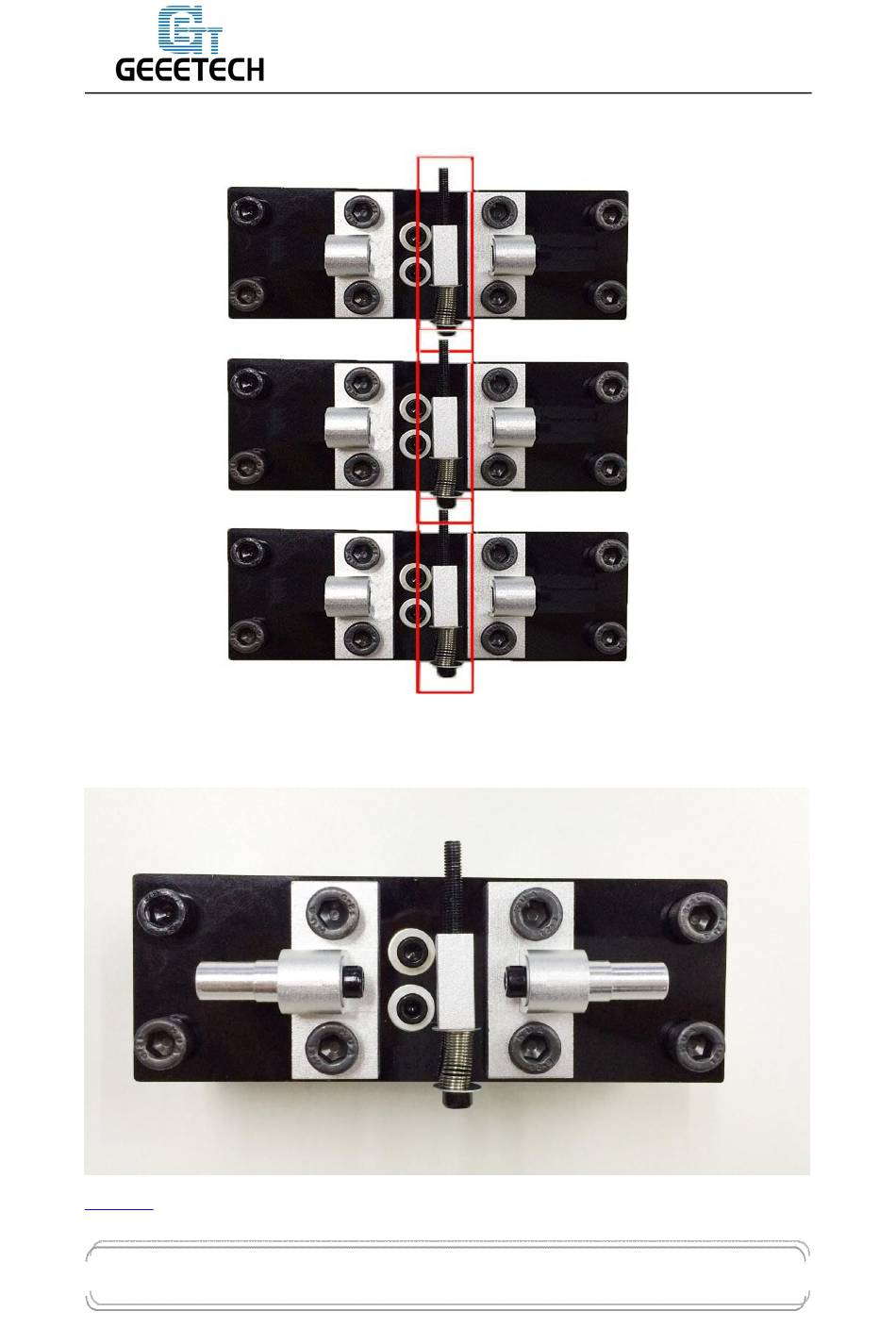

The 3 carriages should be exactly the same.
Step4. Insert the rod-end bearing holder into the diagonal rod joint, fix it with a
M3x8mm screw and M3 washer.
Repeat the step for the other 2 carriages.
