Supervising 24 VDC Power

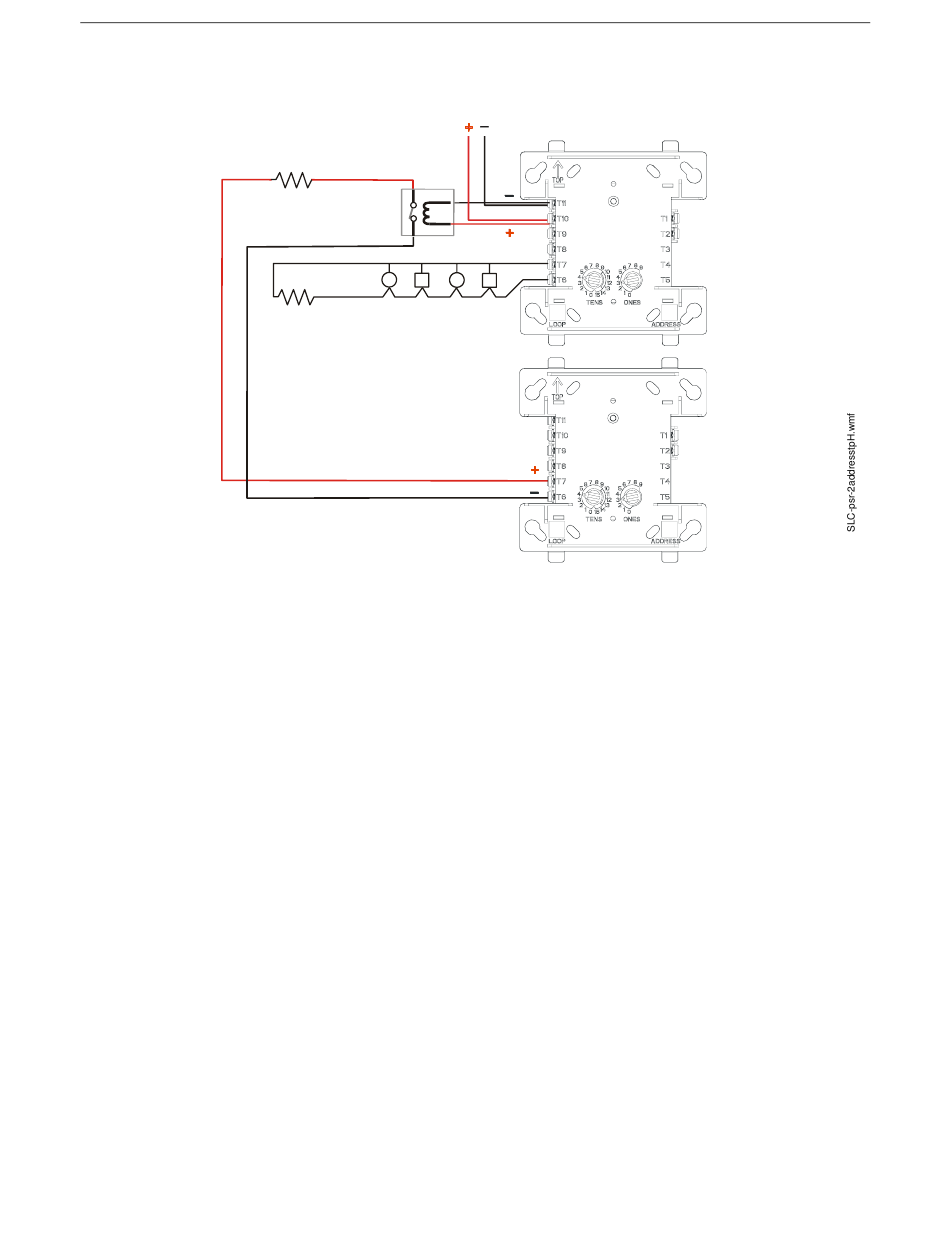

Figure A.2 Alternate: 2-Address Method of Supervising a 24 VDC Circuit
Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009
24 VDC Power from
Control Panel or Power Supply
ELR 47K
Power Supervision
Relay
(EOLR-1)
Supervised NAC or IDC
ELR 47K
Power Considerations
M300CJ
M300MJ
55
