Monitor Modules

6.3 NFPA Style B IDC Using Monitor Modules

Connect the SLC wiring to the module terminals 1 (–) and 2 (+). Each M300MJ module takes one
address on the SLC. Use the rotary switches on the module to set it to the required SLC address.
Figure 6.7 shows typical wiring for a supervised and power-limited NFPA Style B (Class B)
Initiating Device Circuit using the M300MJ monitor module.
Module installation notes:
1. The Initiating Device Circuit (IDC) is supervised and current-limited to 210 microamps
@ 24 VDC (nominal).
2. The IDC provides the following services (do not mix):
• Fire alarm service
• Automatic and manual waterflow alarm service with normally open contact devices
• Sprinkler supervisory service with normally open contact devices
• Security service
3. Refer to the Device Compatibility Document for compatible smoke detectors.
4. See "Power Considerations" on page 53 for information on supervising 24 VDC power.
Manual pull
station
Heat
detector
36
IDC

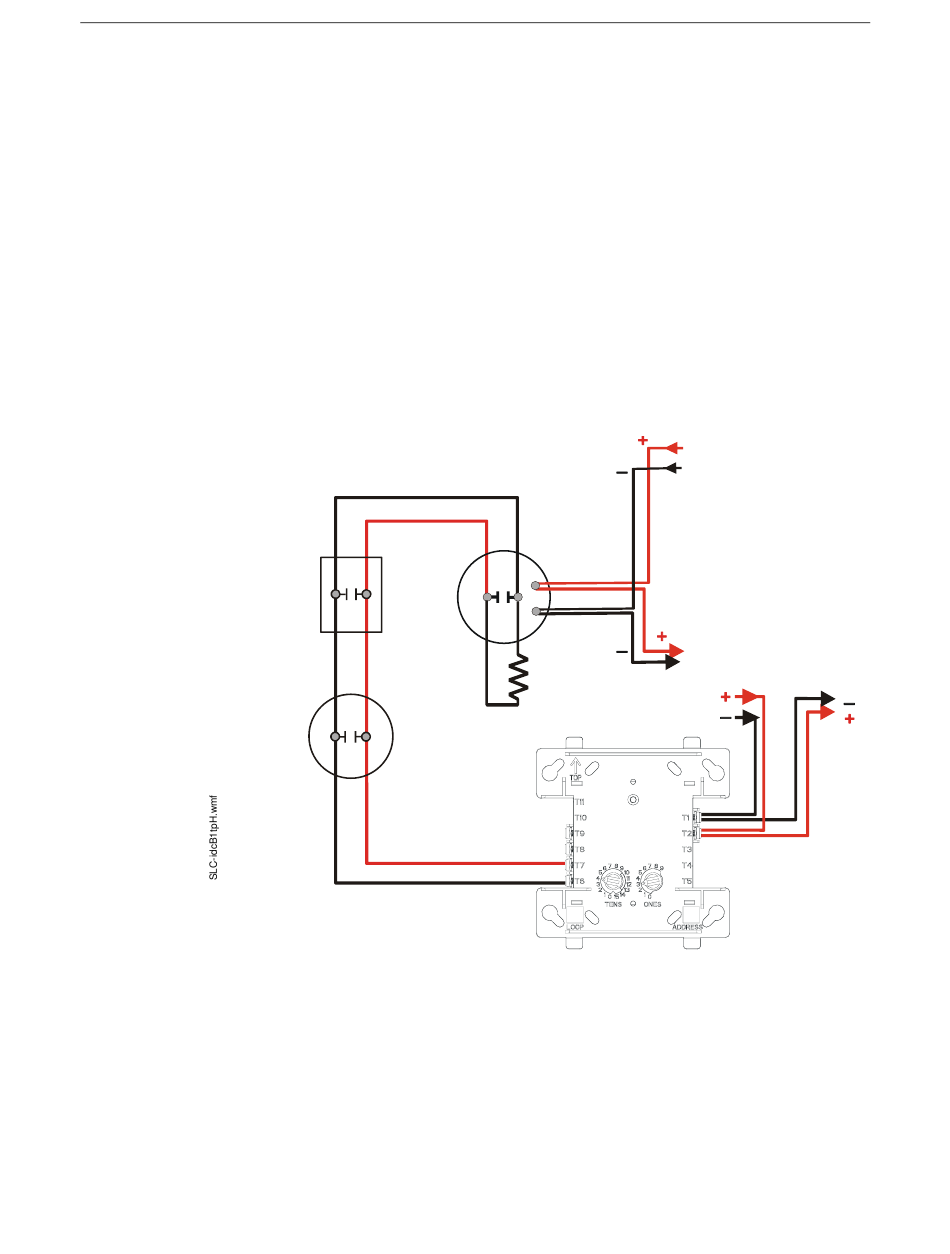

Figure 6.7 Typical Style B IDC Wiring with M300MJ
Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009
NFPA Style B IDC Using Monitor Modules
From Supply
24 VDC
Four-wire
24 VDC Power
Detector Base
Filtered, Regulated,
Resettable
To Next IDC
or
47K ELR
Supervision Device
(supplied
with module)
SLC
