Wiring a Detector Base

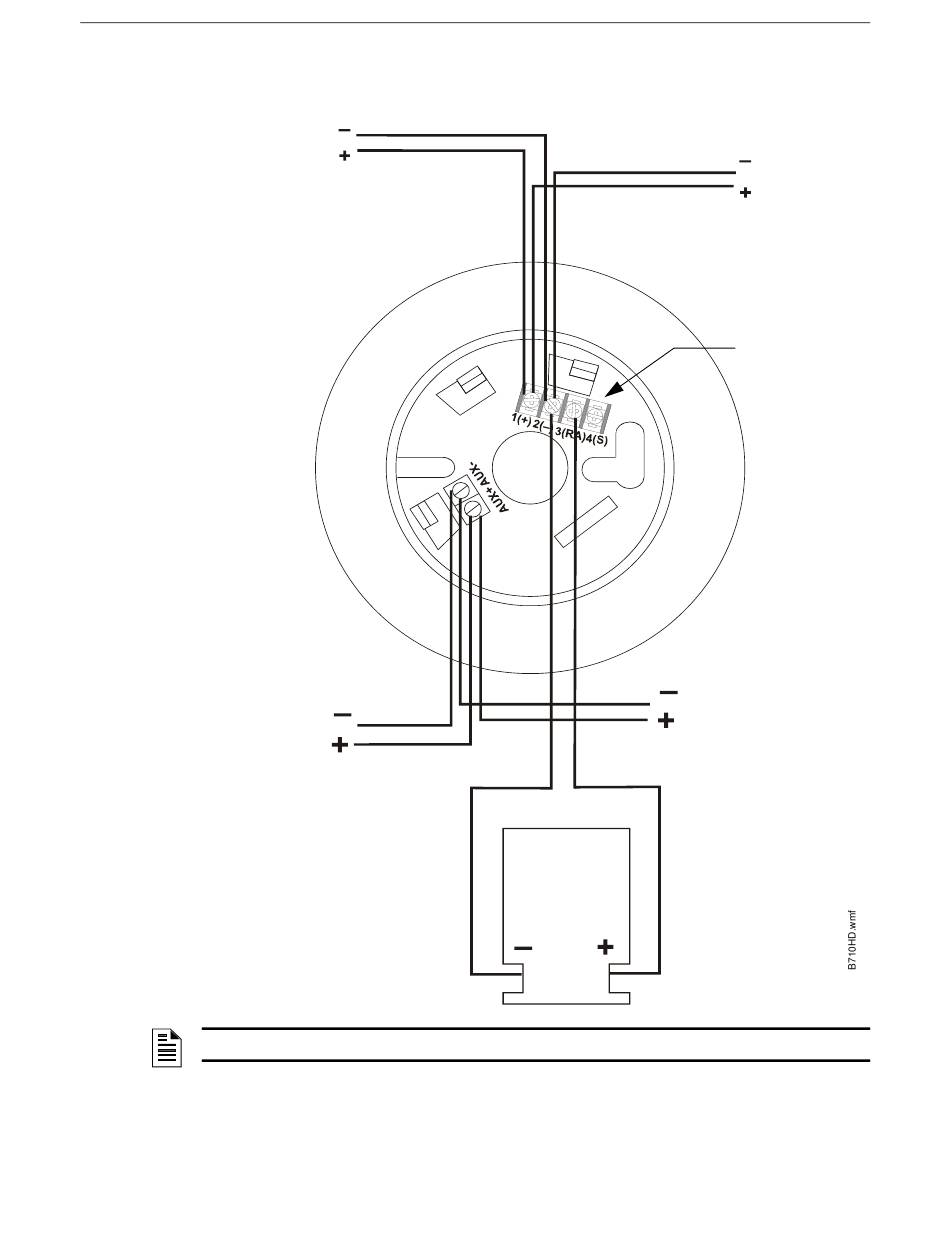

Figure 9.2 shows typical wiring of the B501B-FTXJ detector base (for use with a HARSH™
detector) connected to an SLC. An optional RA400Z Remote LED Annunciator is shown
connected to the base.
To compatible
Power Supply
NOTE: Use a spade lug to wire the Remote LED Annunciator (–) to Terminal 2 (–).
Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009
SLC
UL Listed
Figure 9.2 Wiring of the B501B-FTXJ Detector Base
Power to next
device
RA400Z
Remote LED
Annunciator
(Optional)
Intelligent Detector Bases
To next device
on SLC
For connection of
cable shield
49
