Section 10: Addressable Manual Pull Station

10.1 Description

The JBG-12LX is an addressable manual pull station with a key-lock reset feature.
For more information refer to the Installation Instructions document provided with the devices.
Setting an SLC address
Each unit is factory preset with an address of "00." To set an SLC address refer to "Setting an SLC
Address for a Module" on page 35.

10.2 Wiring a Manual Pull Station

Typical wiring for the JBG-12LX Manual Pull Station to an SLC.
52
+
SLC
–

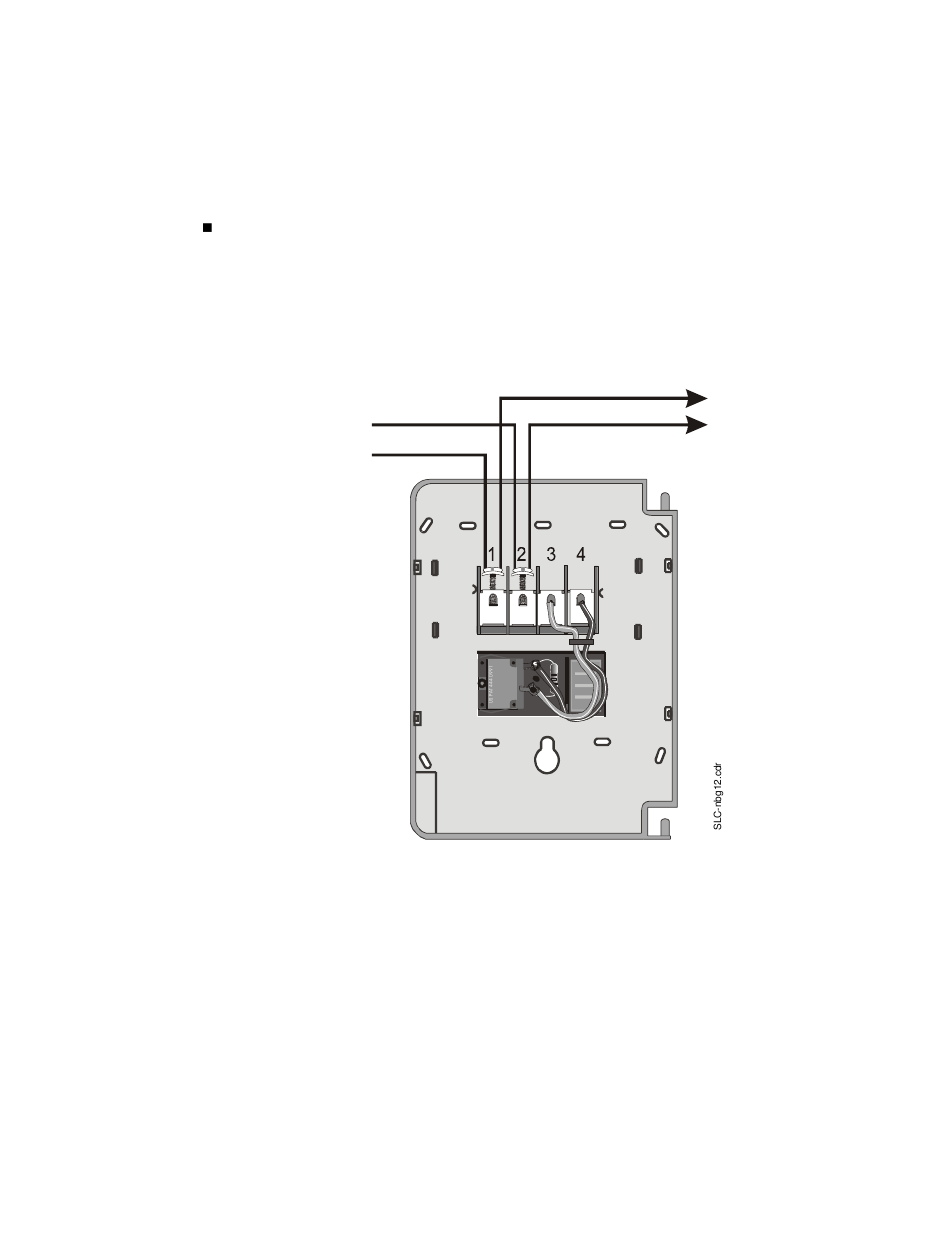

Figure 10.1 Wiring the JBG-12LX Pull Station to an SLC
Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009
–
To next device
on SLC
+
