Rear Axle - Husqvarna R 422 Ts Workshop Manual

Rear Axle

Removal

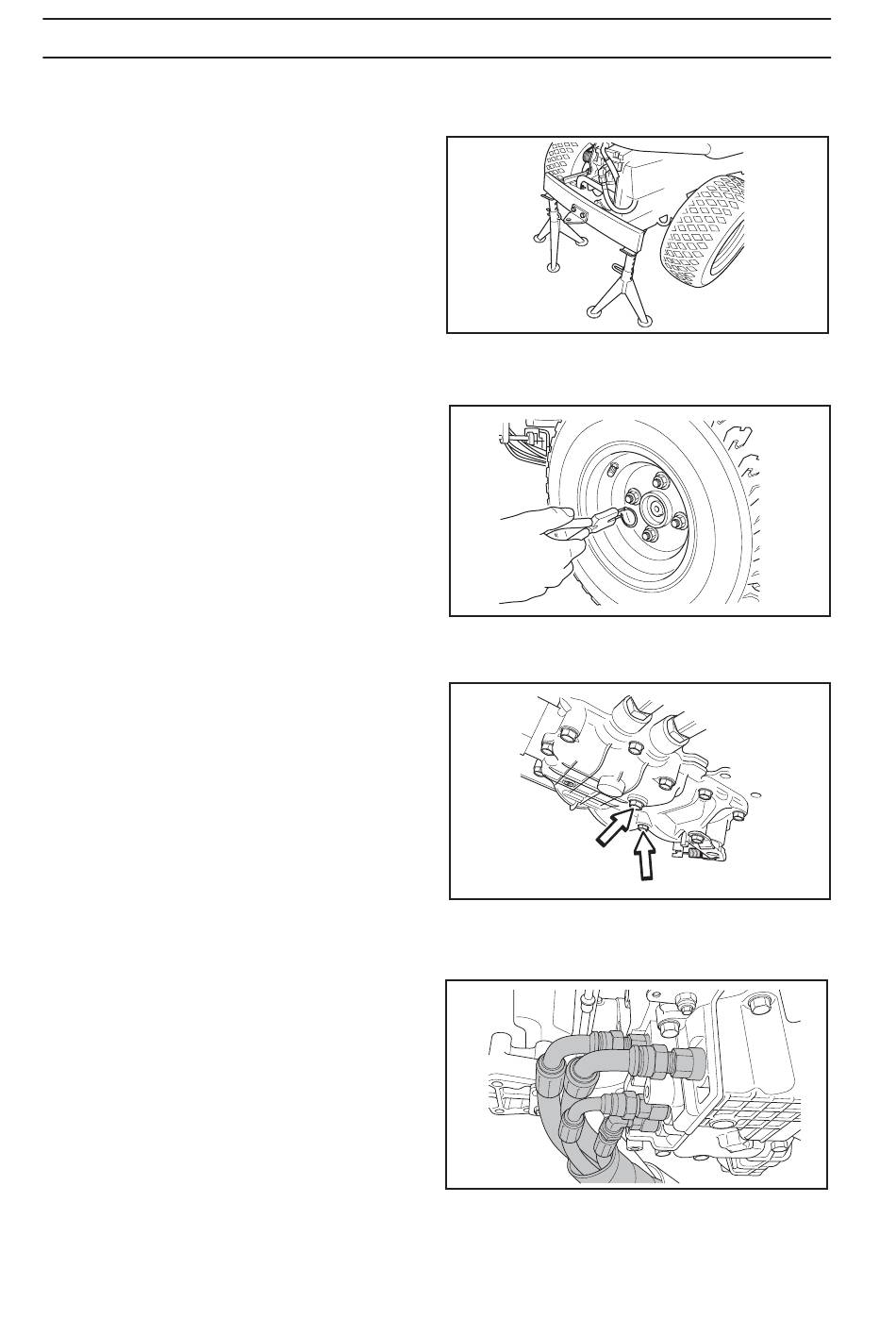

1. Jack up and block the machine
2. Remove the rear wheels.
• Remove the circlip.
• Pull off the wheel with hub from the axle.
• Take care of the keys, spacers and
washers, keep a check of the number of
washers, this can vary between sides.
3. Drain out the oil if necessary, two plugs.
4. Release the hydraulic pipe from the
underside of the rear axle. Fit the
protective plugs. A small amount of oil
will leak out even if the axle has not been
drained.
50
English-
REPAIR INSTRUCTIONS
Jacking up
Circlip
Oil drainage
Hydraulic pipe underside
