LEMCOM CANopen® – User manual

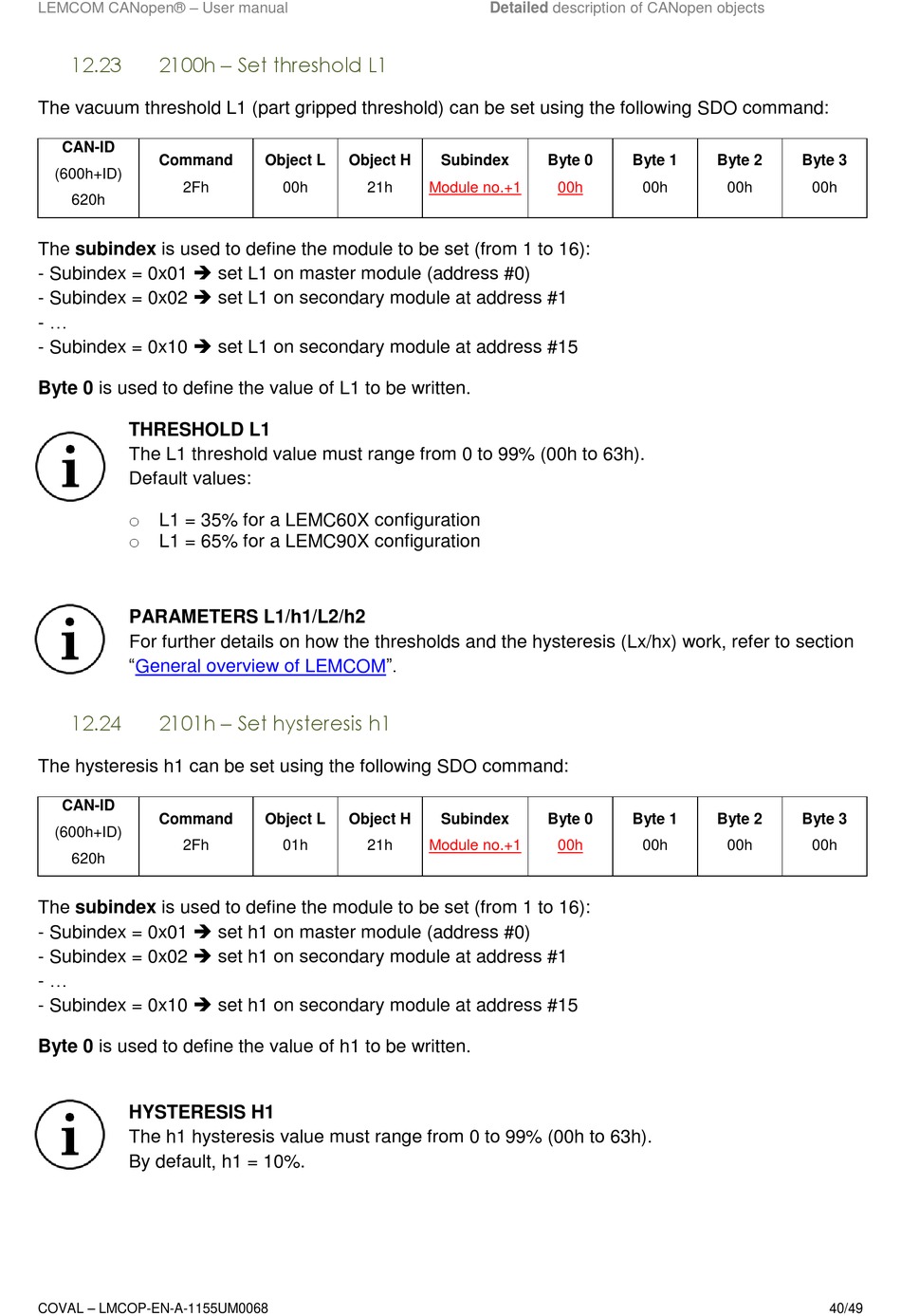

12.23 2100h – Set threshold L1
The vacuum threshold L1 (part gripped threshold) can be set using the following SDO command:
CAN-ID
Command
(600h+ID)
2Fh
620h
The subindex is used to define the module to be set (from 1 to 16):
- Subindex = 0x01  set L1 on master module (address #0)
- Subindex = 0x02  set L1 on secondary module at address #1
- ...
- Subindex = 0x10  set L1 on secondary module at address #15
Byte 0 is used to define the value of L1 to be written.
THRESHOLD L1
The L1 threshold value must range from 0 to 99% (00h to 63h).
Default values:
o L1 = 35% for a LEMC60X configuration
o L1 = 65% for a LEMC90X configuration
PARAMETERS L1/h1/L2/h2
For further details on how the thresholds and the hysteresis (Lx/hx) work, refer to section
"General overview of
12.24 2101h – Set hysteresis h1
The hysteresis h1 can be set using the following SDO command:
CAN-ID
Command
(600h+ID)
2Fh
620h
The subindex is used to define the module to be set (from 1 to 16):
- Subindex = 0x01  set h1 on master module (address #0)
- Subindex = 0x02  set h1 on secondary module at address #1
- ...
- Subindex = 0x10  set h1 on secondary module at address #15
Byte 0 is used to define the value of h1 to be written.
HYSTERESIS H1
The h1 hysteresis value must range from 0 to 99% (00h to 63h).
By default, h1 = 10%.
COVAL – LMCOP-EN-A-1155UM0068
Object L Object H
00h 21h Module no.+1
LEMCOM".
Object L Object H
01h 21h Module no.+1
Detailed description of CANopen objects
Subindex Byte 0
00h
Subindex Byte 0
00h
Byte 1 Byte 2 Byte 3
00h 00h
Byte 1 Byte 2 Byte 3
00h 00h
00h
00h
40/49
