LEMCOM CANopen® – User manual

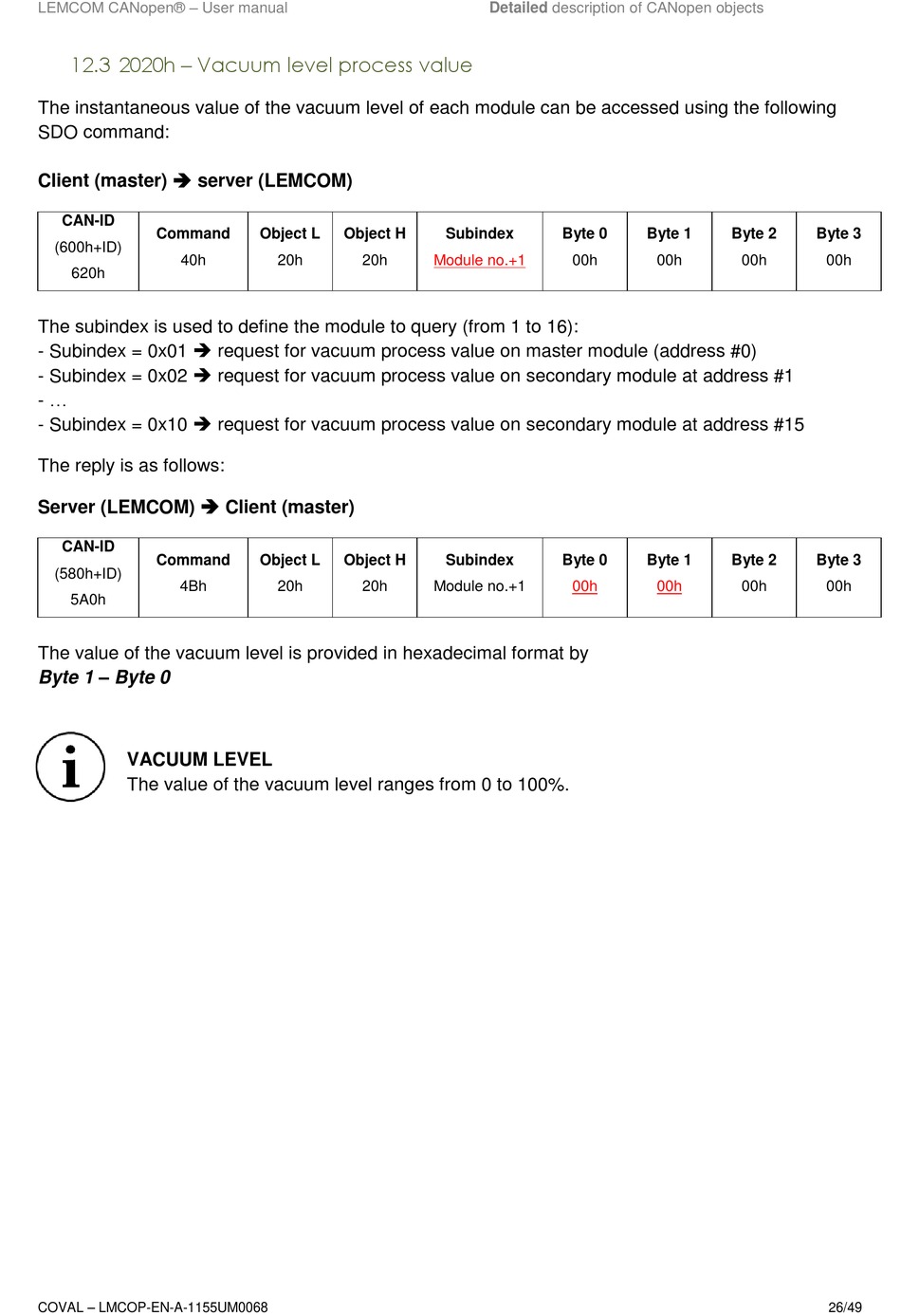

12.3 2020h – Vacuum level process value
The instantaneous value of the vacuum level of each module can be accessed using the following
SDO command:
Client (master)  server (LEMCOM)
CAN-ID
Command
(600h+ID)
40h
620h
The subindex is used to define the module to query (from 1 to 16):
- Subindex = 0x01  request for vacuum process value on master module (address #0)
- Subindex = 0x02  request for vacuum process value on secondary module at address #1
- ...
- Subindex = 0x10  request for vacuum process value on secondary module at address #15
The reply is as follows:
Server (LEMCOM)  Client (master)
CAN-ID
Command
(580h+ID)
4Bh
5A0h
The value of the vacuum level is provided in hexadecimal format by
Byte 1 – Byte 0
VACUUM LEVEL
The value of the vacuum level ranges from 0 to 100%.
COVAL – LMCOP-EN-A-1155UM0068
Object L Object H
20h 20h
Object L Object H
20h 20h
Detailed description of CANopen objects
Subindex Byte 0
Module no.+1 00h
Subindex Byte 0
Module no.+1 00h
Byte 1 Byte 2 Byte 3
00h 00h
Byte 1 Byte 2 Byte 3
00h 00h
00h
00h
26/49
