LEMCOM CANopen® – User manual

3 WIRING INSTRUCTIONS

- Connector type: M8 male

CAN ports

3.1 CAN ports
A CAN interface is integrated in the LEMCOM (model W2) and features two CAN ports on the front
of the module.
NC = Not Connected
BR: brown / WH: white / BU: blue / BK: black
COVAL – LMCOP-EN-A-1155UM0068

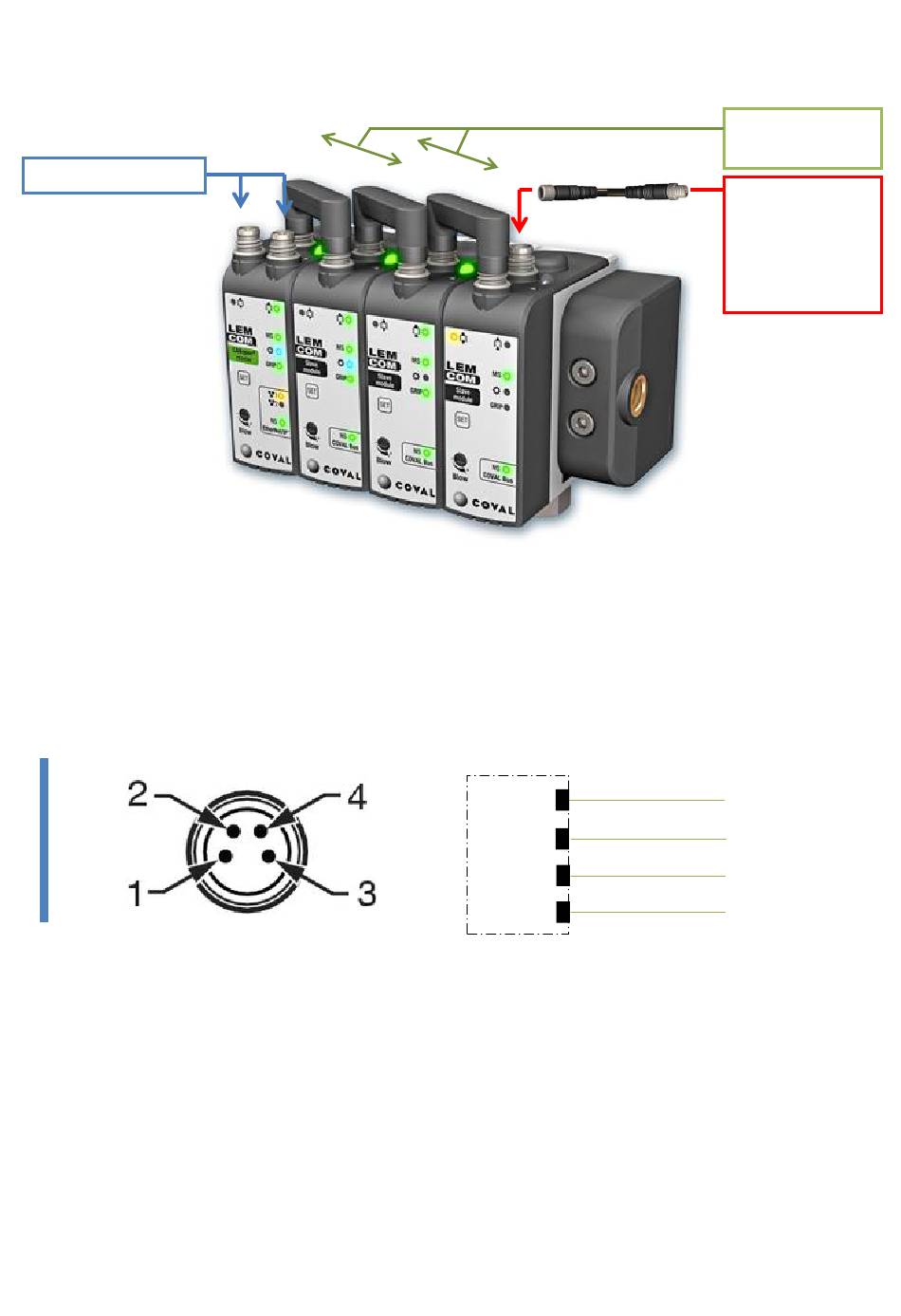

Figure 2 – Wiring a LEMC--X---W2GB4 island
Figure 3 – Wiring instructions (M8 – CAN bus ports)
Wiring instructions
M8
1 (BR)
2 (WH)
3 (BU)
4 (BK)
COVAL bus
(com + 24 V DC)
24 V DC
Power supply
+
M8 COVAl bus
terminator
NC
CAN_H
CAN_GND
CAN_L
10/49
