Chapter 1: KC724 IBERT Getting Started Guide
Figure 1-8
GTX IBERT demonstration.
X-Ref Target - Figure 1-8
TX/RX Loopback Connections

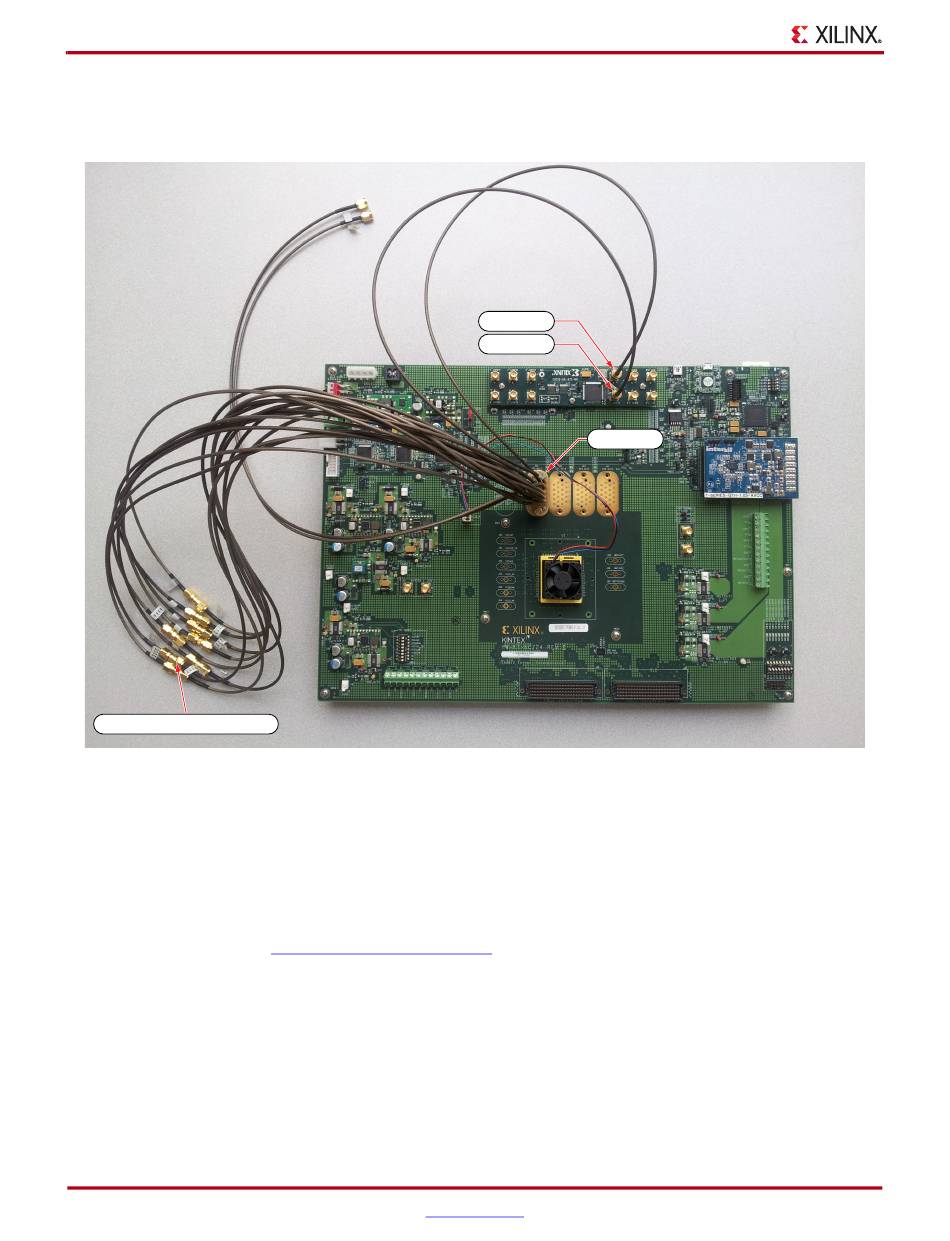

Figure 1-8: Cable Connections for Quad 115 GTX IBERT Demonstration

Configuring the FPGA

This section describes how to configure the FPGA using the SD card included with the
board. The FPGA can also be configured through ChipScope Pro or iMPACT software
using the .bit files which are available online (as collection rdf0184_<Vivado
version>.zip) at:
To configure from the SD card:
1.
2.
3.
12
shows the KC724 board with the cable connections required for the Quad 115
http://www.xilinx.com/kc724
Insert the SD card provided with the KC724 board into the SD card reader slot located
on the bottom-side (upper-right corner) of the KC724 board.
Plug the 12V output from the power adapter into connector J2 on the KC724 board.
Connect the host computer to the KC724 board using a standard-A plug to micro-B
plug USB cable. The standard-A plug connects to a USB port on the host computer and
the micro-B plug connects to U8, the Digilent USB JTAG configuration port on the
KC724 board.
www.xilinx.com
CKOUT1_N
CKOUT1_P
QUAD_115
KC724 IBERT Getting Started Guide
UG931_c1_08_080912
UG931 (v1.0) October 23, 2012
