12/21 m (39/69 ft) swing-away lattice extension
3.1 Additional operating and display elements
3.1.3
3 - 6
Operating and display instruments on the swing-away
lattice extension

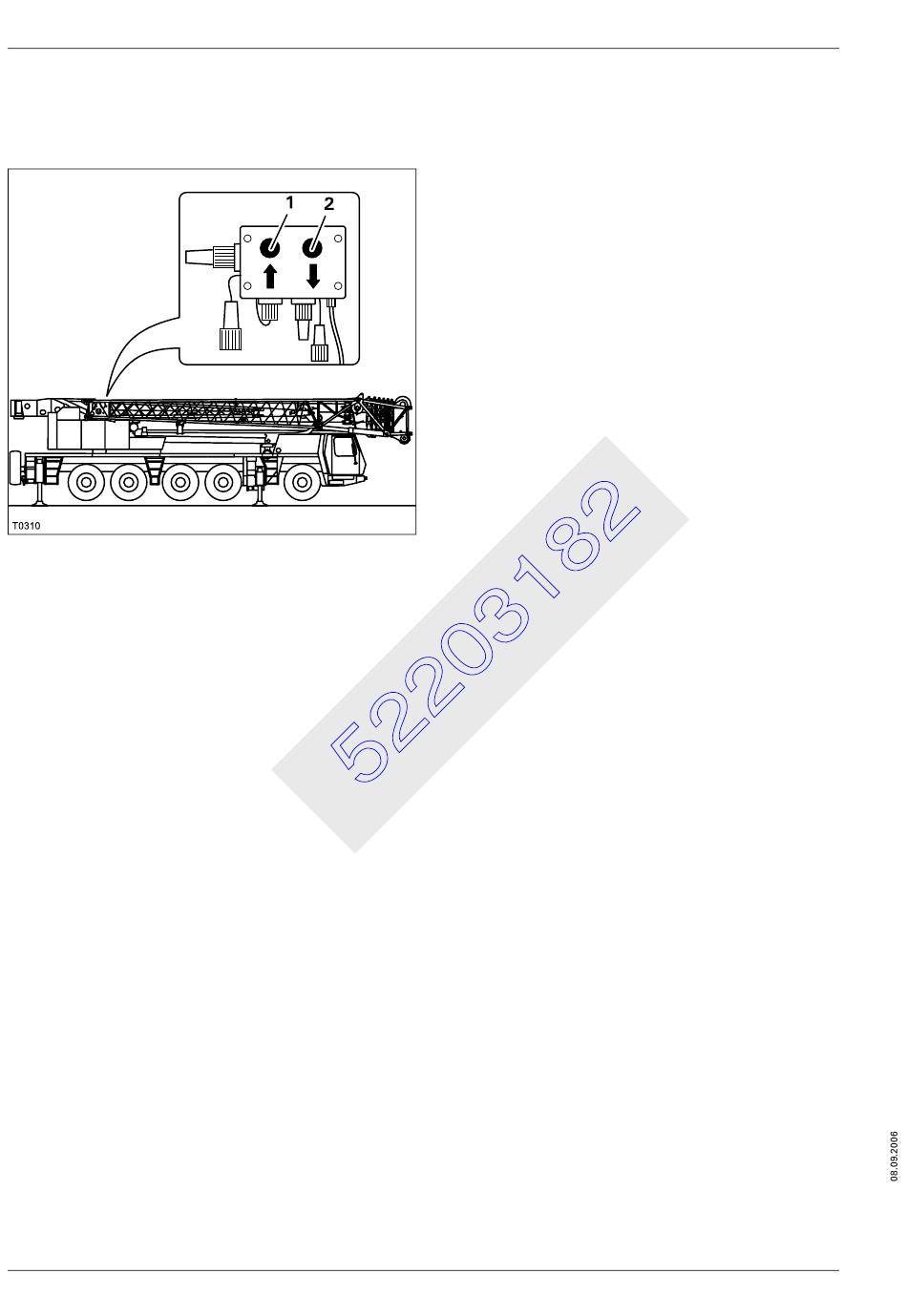

There is a button unit with two buttons on the
front of section 1.
1 "Raise lattice extension" push-button
2 "Lower lattice extension" push-button
The swing-away lattice extension is lowered
or raised as long as the push-button is pressed
or until the end position or a switch-off point is
reached.
3 112 319 en Lattice extension operating instructions
GMK 5220
