Call buttons
8

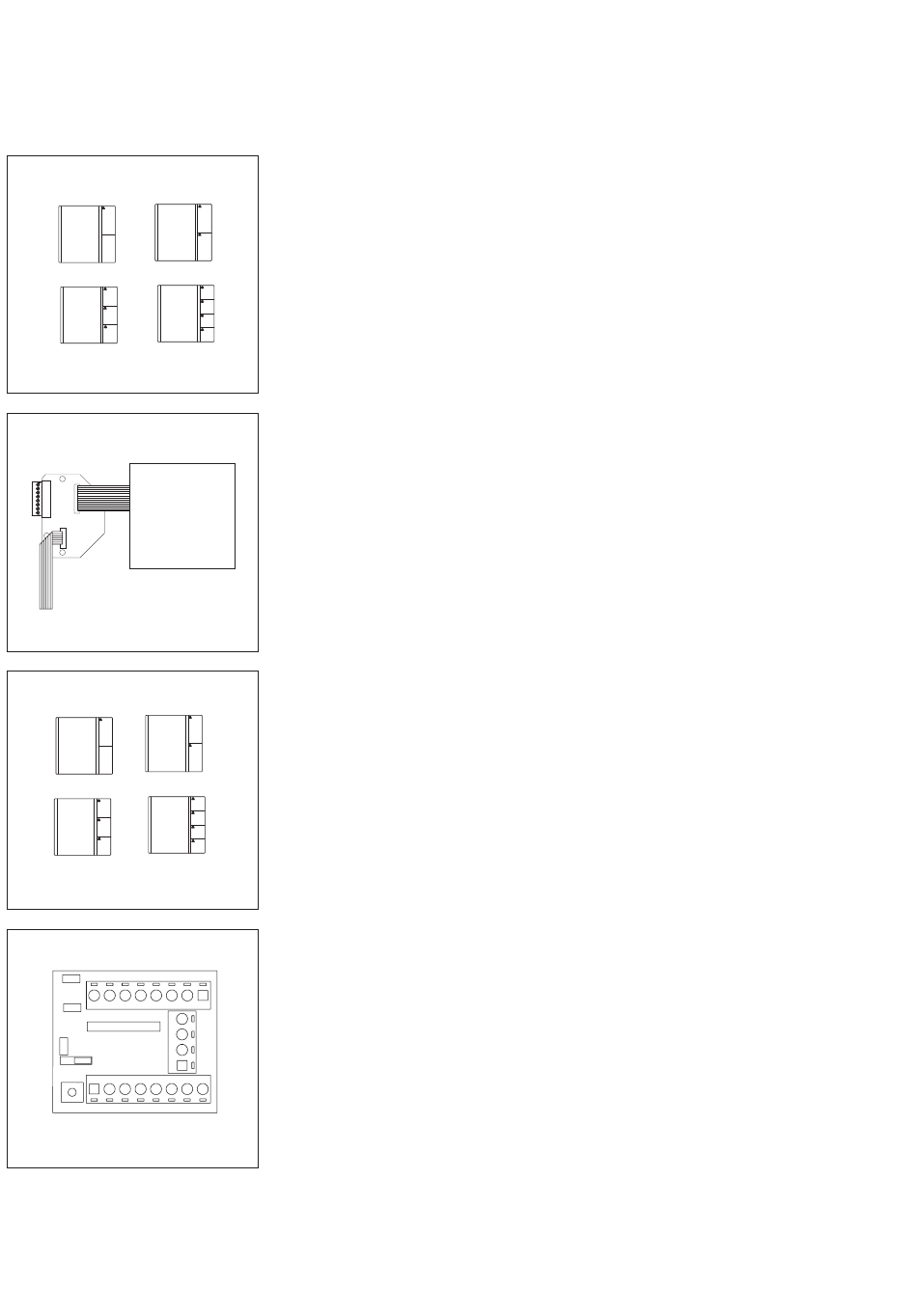

BTM 650-01 - BTM 650-04
Bus call button modules for In-Home
bus. 1-4 call buttons, integrated LED
lighting. Connection via ribbon cable
to the TME 645-... Power supply
to the LED lighting via terminals b
and c with 12 V AC/DC, current
consumption 25 mA per bus call
button module BTM 650-...
TME 645-0
Call button module extension
with interface to the Vario bus for
max. 8 TME 645-... . Suitable for
connection of call button module
BTM 650 -... A maximum of 16
bus call button modules can be
connected per TME 645-... . With
an acoustic signal which sounds on
button assignment. The call button
modules are connected to the
TME 645-... by means of a ribbon
TM 612-1 - TM 612-4
Call button modules, potential-free
buttons, 1-4 call buttons, integrated
LED lighting. Connection by means
of terminal block. Power supply
to the LED lighting by means of
terminal b and c with 12 V AC/DC,
current consumption 25 mA per call
button module TM 612-...
Used as call buttons 1-4 directly at
the SIVS 600-...
TME 640-0
Call button module extension in
protective housing with screw
terminals, for connection of call
button modules TM 612-... or call
buttons of other makes.
A maximum of 16 call button
modules can be connected to the
TME 640-... by means of a matrix
installation.
Dimensions: 100 x 50 x 20 mm
cable.
Dimensions: 99 x 99 mm
