5 Terminals
SIVS 600-0, TLM/LL 611-01

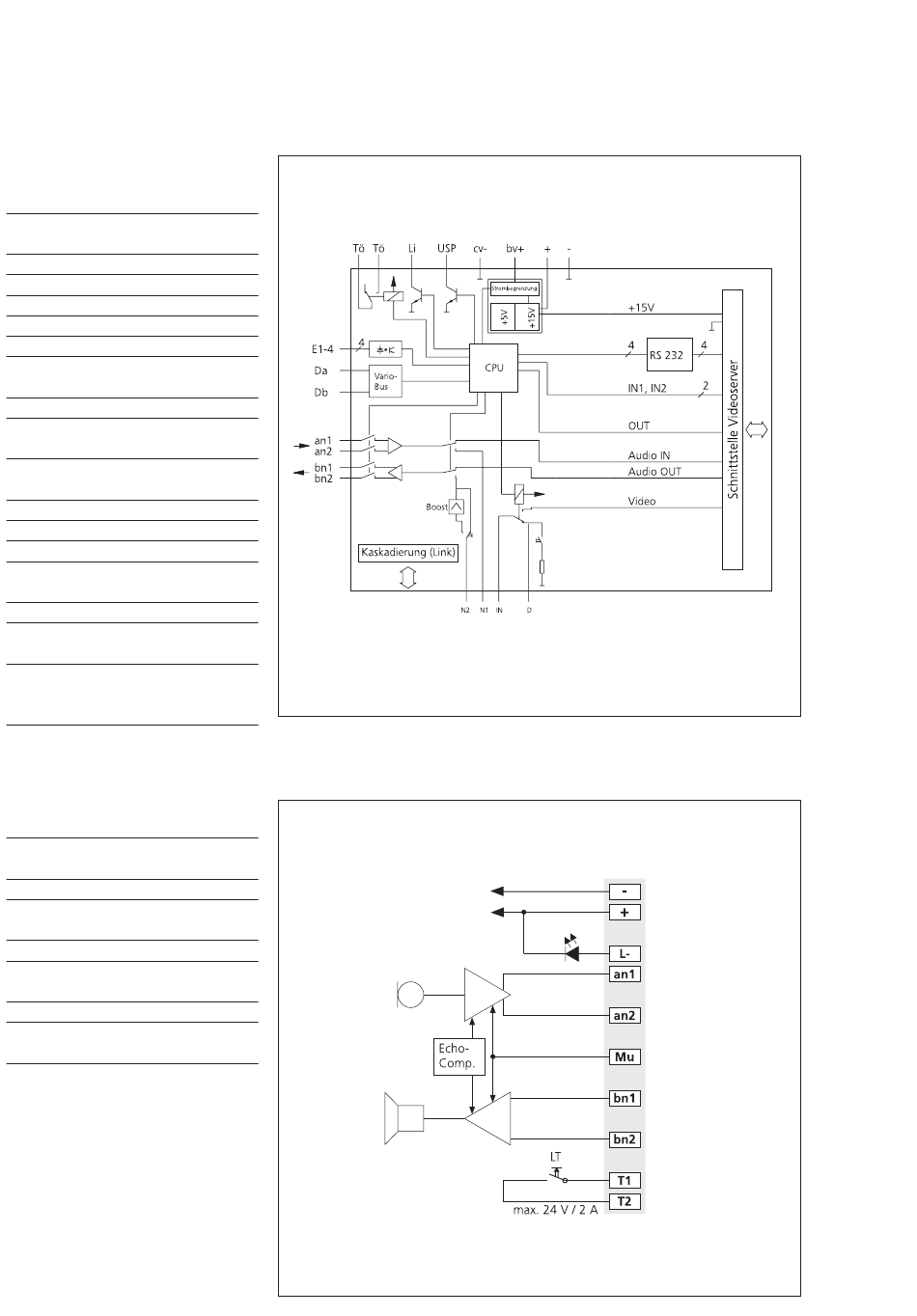

Block diagram
SIVS 600-0
G
Reference for inputs
E1–E4
E4
Input 4
E3
Input 3
E2
Input 2
E1
Input 1
cv-
Supply voltage for
bv+
Vario bus, 15 V DC,
max. 300 mA
Da/Db
Vario bus
+
Supply voltage
-
24 V DC
Door release contact
potential
Free max. 24 V, 1 A
Li
Light contact
USP
Universal Switch Port
bn1
Line signal to the door
station,
bn2
outgoing
an1
Line signal from
an2
door station, incoming
n1
NF signal for
n2
connected
DCA 740-01
Block diagram TLM/LL 611-01
+
Terminal for
-
supply voltage
L-
Lighting, light button
an1
Microphone signal
an2
Mu
Muting
bn1
Loudspeaker signal
bn2
T1
Potential-free contact
T2
Light button, max, 24 V,
2 A
