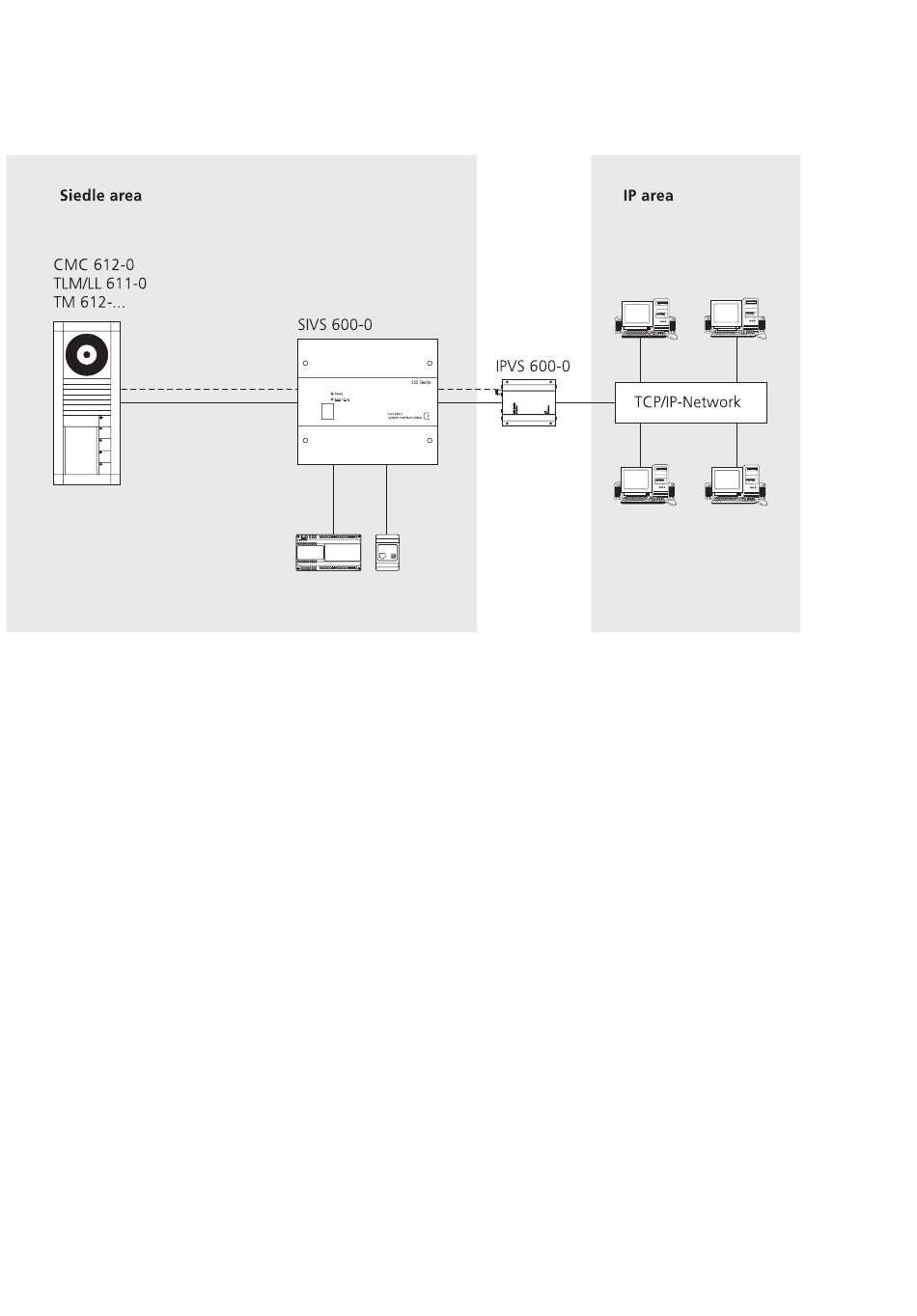

3 Structure DCIP 600-0
System-free
DCIP 600-...
System-free link
The DoorCom IP 600-... serves as
an interface between a system-
free Siedle door station and an
IP network. In conjunction with
the DoorCom IP Software Client,
which serves as a virtual in-house
telephone, the door call (incl. video)
can be held via the PC. The door call
can optionally also be held via the
telephone system with a telephone.
For this purpose, an additional
DCA 740-01 must be installed. Link-
up of the DCA 740-01 takes place
via a free a/b port of the telephone
system. The video camera image
continues to appear on the PC
monitor, control functions such as
the door release can still be operated
via the Software Client.
The DCIP 600-... comprises the
components:
• SIVS 600-.., system interface video
server. Processing and adjustment of
data, through connection of audio
and video signals.
• IPVS 600- .., IP video server.
Processing and adjustment of audio
and video, transmission of data,
4
PRI 602-... USB
NG 600-0
audio and video to the IP network.
One DCIP 600-... each is required
per door. A maximum of 49
different call destinations can be
dialled. Dialling is possible by means
of a call button module, code lock
module or display call module.
• Configuration software
DCIP CO 600-... for configuration of
the SIVS 600-...
• Software Client DCIP SC 600-... for
installation on PC users intended to
receive door calls.
Power supply
The DCIP 600-... SET works with
24–28 V supply voltage.
An optionally connected
DCA 740-01 is supplied from
the SIVS 600-... . The a/b public
network interface is supplied from
the TC system. It is not possible to
connect an individual public network
telephone directly to the a/b line of
the DCA 740-01. The DCIP 600-...
or the IPVS 600-... is linked using a
standard network cable with RJ45
plug to the IP network (10/100).
Functions of the Software Client
• Door calls and signalling on the PC
• Text display of which door is
calling.
• Door release actuation by means
of a mouse click
• Light actuation by means of a
mouse click
• Muting of the ring tone by means
of a mouse click
• Selective connection to a door
station
• Parallel door call to up to 25 PC
clients simultaneously
• Speech connection via PC
(e.g. headset) or optionally via the
telephone of a telephone system.
• Almost any optional number of
doors can be connected
Commissioning and
programming
After connection of the supply
voltage, the SIVS 600-... can be
programmed with the aid of a
PRI 602-... USB and configuration
software DCIP CO 600-... via the
PC. No additional programming is
required for the optional
DCA 740-01. For programming /
configuration of the TC system, see
the relevant product information
and programming instructions of the
TC manufacturer.
