CS2-SG
■Description

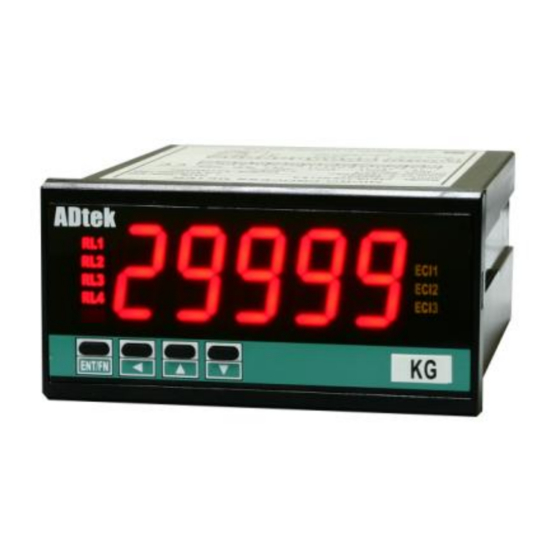

CS2-SG Strain Gauge Indicator has been designed with high accuracy
measurement, display and communication of DC signal 0~1.0/~4.0mV or
0~10.0/~40.0mV as like as Load Cell or Strain Gauge.
 The meter supports Field Calibration function. It can be calibrated with
sensor(Load Cell/Strain Gauge) to meet machinery structure.
They are also building in 4 Relay outputs, 3 External Control Inputs, 1
Analogue output and 1 RS-485(Modbus RTU Mode) interface with versatile
functions such as control, alarm, re-transmission and communication for a wide range of machinery and testing
equipments applications.
■Features
˙ Measuring load cell, strain gauge signal 0~1.0/~2.0/~3.33/~4.0/~10.0/~20.0/~40.0mV/V (Specified)
˙ Field calibration with load cell or strain gauge to meet the system requirement
˙ 4 relay can be programmed individual to be a Hi / Lo / Hi Hold / Lo Hold / Go, and can be energized with Start
Delay / Hysteresis / Energized & De-energized Delay functions, or to be a remote control.
˙ Analogue output and RS-485 communication port in option
˙ 3 external control inputs can be programmed individual to be Tare (Relative PV) / PV Hold / Maximum or Minimum
Hold / DI (remote monitoring) / Reset for Relay Energized Latch....
˙ CE Approved & RoHS
■Applications
˙ Testing Equipments for weight/force Measuring, Alarm, Control and Communication with PC/PLC
˙ Leakage testing equipment by tare and relay function.
˙ Weighting control for packing machine, filling machine.
■Ordering Information
Input
CS2 SG
— —
Signal
CODE I/P Range CODE I/P Range
S1 S8
1.0mV/V 10.0mV/V
S2 S9
2.0mV/V 20.0mV/V
S3 SA
4.0mV/V 40.0mV/V
S6
3.33mV/V
■Technical Specification
Input
Measuring Range
0~1.0/~2.0/~3.33/~4.0 mV/V
0~10.0/~20.0/~40.0 mV/V
Calibration: Digital calibration by front key
Field calibration: Calibration with sensor input high & low to
meet system structure. And field calibration
reset is not change the accuracy & linear of
factory calibration.
A/D converter: 16 bits resolution
≤ ± 0.04% of F.S. 1C
Accuracy:
Sampling rate: 15 cycles/sec
High speed mode: can be 60cycle/sec(scaling:0~6000)
Rev 1.1
2023-01-11
4 2/3 Strain Gage Meter
Relay Analog
— —
Output Output
CODE Relay O/P CODE
N N
None
R2
2 Relay
V
R4
4 Relay
I
Input Impedance Excitation Voltage
DC 5V, 40mA
≥ 1M ohm
or DC 10V, 40mA
RS-485 Excitation
— —
Port Supply
Analog CODE RS-485 Port
N
None None
8
0(1) ~ 5 V RS-485
0 ~ 10 V
0 ~ 10 mA
4(0)~20 mA
Response time:
Input range:
Display & Functions
LED:
Display range:
CS2-SG
Aux.
—
*Optional Function
Powered
CODE Excitation CODE
A
E05 DC 5V AC 115/230V
E10 DC 10V AC 85~264V
ADH
EO Specify
DC 100~300V
ADL AC/DC 20~56V
CODE Optional
High Speed
HSM
Mode
5 Digital
5DG
Display
≤ 100 mS (when the AvG = "1") in standard
Input High and Low programmable
aIhi: Settable range: 0.00~100.00%
aIlo: Settable range: 0.00~100.00%
Numeric: 5 digits, 0.8"(20.0mm)
H red high-brightness LED
Relay output indication: 4 square red LED
RS-485 communication: 1 square orange LED
E.C.I. function indication: 3 square green LED
Max/Mini Hold indication: 2 square orange LED
-19999~29999; 5 Digital Display ： -19999~99999
Aux. Power
