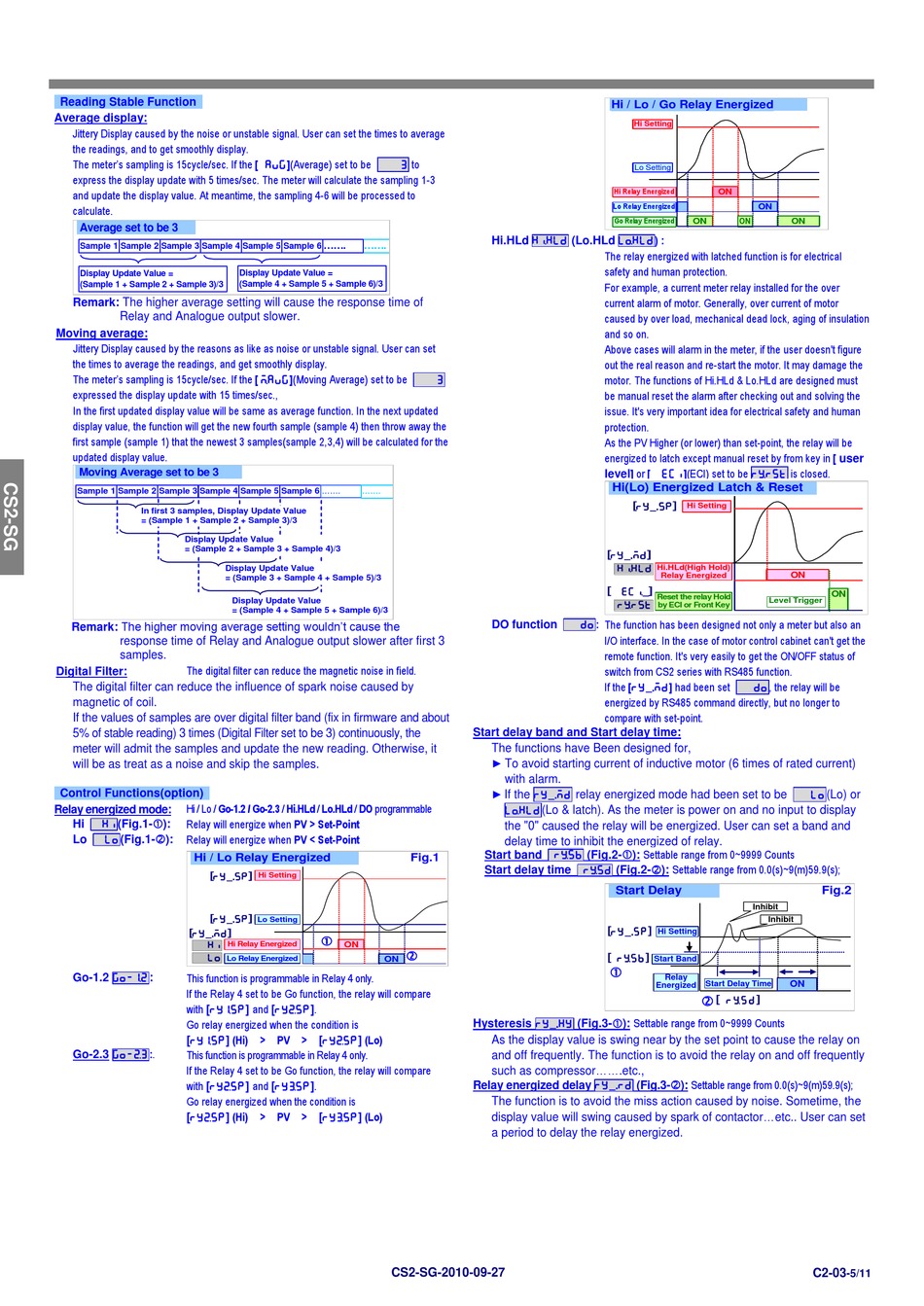

Reading Stable Function
Average display:
Jittery Display caused by the noise or unstable signal. User can set the times to average
the readings, and to get smoothly display.
The meter's sampling is 15cycle/sec. If the [ avg](Average) set to be
express the display update with 5 times/sec. The meter will calculate the sampling 1-3
and update the display value. At meantime, the sampling 4-6 will be processed to
calculate.
Average set to be 3
Sample 1 Sample 2 Sample 3 Sample 4 Sample 5 Sample 6
Display Update Value =
(Sample 1 + Sample 2 + Sample 3)/3
Remark: The higher average setting will cause the response time of
Relay and Analogue output slower.
Moving average:
Jittery Display caused by the reasons as like as noise or unstable signal. User can set
the times to average the readings, and get smoothly display.
The meter's sampling is 15cycle/sec. If the [ Mavg](Moving Average) set to be
expressed the display update with 15 times/sec.,
In the first updated display value will be same as average function. In the next updated
display value, the function will get the new fourth sample (sample 4) then throw away the
first sample (sample 1) that the newest 3 samples(sample 2,3,4) will be calculated for the
updated display value.
Moving Average set to be 3
Sample 1 Sample 2 Sample 3 Sample 4 Sample 5 Sample 6
In first 3 samples, Display Update Value
= (Sample 1 + Sample 2 + Sample 3)/3
Display Update Value
= (Sample 2 + Sample 3 + Sample 4)/3
Display Update Value
= (Sample 3 + Sample 4 + Sample 5)/3
Remark: The higher moving average setting wouldn't cause the
response time of Relay and Analogue output slower after first 3
samples.
The digital filter can reduce the magnetic noise in field.
Digital Filter:
The digital filter can reduce the influence of spark noise caused by
magnetic of coil.
If the values of samples are over digital filter band (fix in firmware and about
5% of stable reading) 3 times (Digital Filter set to be 3) continuously, the
meter will admit the samples and update the new reading. Otherwise, it
will be as treat as a noise and skip the samples.
Control Functions(option)
Hi / Lo / Go-1.2 / Go-2.3 / Hi.HLd / Lo.HLd / DO programmable
Relay energized mode:
hi(Fig.1-):
Relay will energize when PV > Set-Point
Hi
lo(Fig.1-): Relay will energize when PV < Set-Point
Lo
Hi / Lo Relay Energized
[ry_.sp]
[ry_.sp]
[ry_.md]
hi
Hi Relay Energized
lo
Lo Relay Energized
Go-1.2 go-!2:
This function is programmable in Relay 4 only.
If the Relay 4 set to be Go function, the relay will compare
with [ry!sp] and [ry@sp].
Go relay energized when the condition is
[ry!sp] (Hi) > PV > [ry@sp] (Lo)
Go-2.3 go-@3:.
This function is programmable in Relay 4 only.
If the Relay 4 set to be Go function, the relay will compare
with [ry@sp] and [ry#sp].
Go relay energized when the condition is
[ry@sp] (Hi) > PV > [ry#sp] (Lo)
3 to
....... .......
Display Update Value =
(Sample 4 + Sample 5 + Sample 6)/3
....... .......
Display Update Value
= (Sample 4 + Sample 5 + Sample 6)/3
Hi Setting
Lo Setting

ON

ON
CS2-SG-2010-09-27
Hi.HLd hIhld (Lo.HLd lOhld) :
3
do: The function has been designed not only a meter but also an
DO function
Start delay band and Start delay time:
The functions have Been designed for,
►
To avoid starting current of inductive motor (6 times of rated current)
with alarm.
If the ry_.md relay energized mode had been set to be
►
lOhld(Lo & latch). As the meter is power on and no input to display
the "0" caused the relay will be energized. User can set a band and
delay time to inhibit the energized of relay.
rYsb (Fig.2-): Settable range from 0~9999 Counts
Start band
Fig.1
rYsd (Fig.2-): Settable range from 0.0(s)~9(m)59.9(s);
Start delay time
Hysteresis ry_.hy (Fig.3-): Settable range from 0~9999 Counts
As the display value is swing near by the set point to cause the relay on
and off frequently. The function is to avoid the relay on and off frequently
such as compressor.......etc.,
Relay energized delay ry_.rd (Fig.3-): Settable range from 0.0(s)~9(m)59.9(s);
The function is to avoid the miss action caused by noise. Sometime, the
display value will swing caused by spark of contactor...etc.. User can set
a period to delay the relay energized.
Hi / Lo / Go Relay Energized
Hi Setting
Lo Setting
Hi Relay Energized
ON
Lo Relay Energized
ON
Go Relay Energized ON
ON
The relay energized with latched function is for electrical
safety and human protection.
For example, a current meter relay installed for the over
current alarm of motor. Generally, over current of motor
caused by over load, mechanical dead lock, aging of insulation
and so on.
Above cases will alarm in the meter, if the user doesn't figure
out the real reason and re-start the motor. It may damage the
motor. The functions of Hi.HLd & Lo.HLd are designed must
be manual reset the alarm after checking out and solving the
issue. It's very important idea for electrical safety and human
protection.
As the PV Higher (or lower) than set-point, the relay will be
energized to latch except manual reset by from key in [ user
level] or [ eci](ECI) set to be rYrst is closed.
Hi(Lo) Energized Latch & Reset
[ry_.sp]
Hi Setting
[ry_.md]
hIhld
Hi.HLd(High Hold)
Relay Energized
[ ecI_]
Reset the relay Hold
Level Trigger
rYrst
by ECI or Front Key
I/O interface. In the case of motor control cabinet can't get the
remote function. It's very easily to get the ON/OFF status of
switch from CS2 series with RS485 function.
If the [ry_.md] had been set do, the relay will be
energized by RS485 command directly, but no longer to
compare with set-point.
Start Delay
Inhibit
Inhibit
[ry_.sp]
Hi Setting
[ rYsb]
Start Band

Relay
Start Delay Time
Energized
 [ rYsd]
ON
ON
ON
lo(Lo) or
Fig.2
ON
