NAV E 501 / NAV E 101 • Setup Guide (Continued)
Step 3 — Front Panel Configuration Port Connection
HDMI
CONFIG
HDCP
B B B A A A
HDMI
CONFIG
HDCP

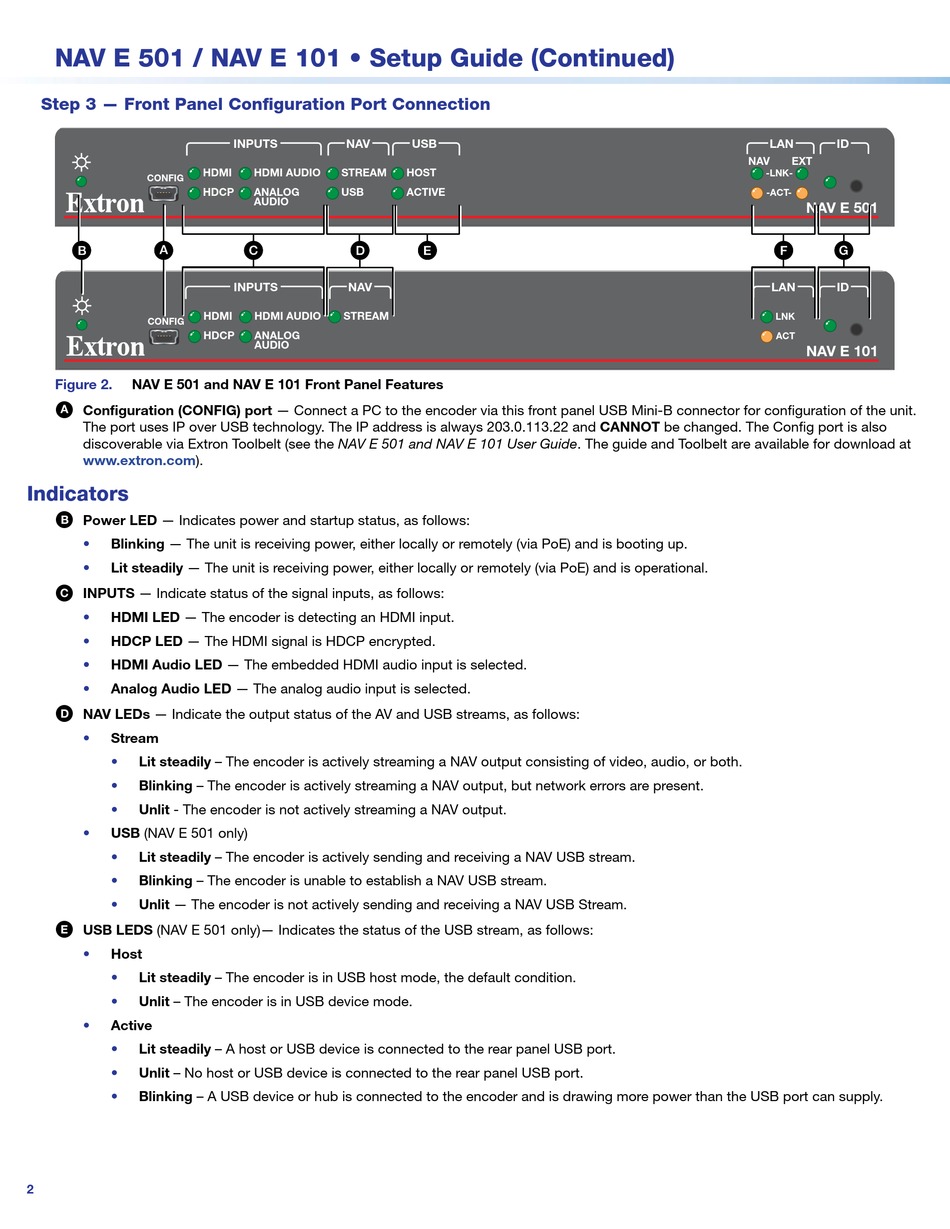

Figure 2. NAV E 501 and NAV E 101 Front Panel Features
A
Configuration (CONFIG) port — Connect a PC to the encoder via this front panel USB Mini-B connector for configuration of the unit.
The port uses IP over USB technology. The IP address is always 203.0.113.22 and CANNOT be changed. The Config port is also
discoverable via Extron Toolbelt (see the NAV E 501 and NAV E 101 User Guide. The guide and Toolbelt are available for download at
www.extron.com).
Indicators
B Power LED — Indicates power and startup status, as follows:
Blinking — The unit is receiving power, either locally or remotely (via PoE) and is booting up.
•
• Lit steadily — The unit is receiving power, either locally or remotely (via PoE) and is operational.
C
INPUTS — Indicate status of the signal inputs, as follows:
HDMI LED — The encoder is detecting an HDMI input.
•
• HDCP LED — The HDMI signal is HDCP encrypted.
• HDMI Audio LED — The embedded HDMI audio input is selected.
• Analog Audio LED — The analog audio input is selected.
D NAV LEDs — Indicate the output status of the AV and USB streams, as follows:
• Stream
• Lit steadily – The encoder is actively streaming a NAV output consisting of video, audio, or both.
Blinking – The encoder is actively streaming a NAV output, but network errors are present.
•
Unlit - The encoder is not actively streaming a NAV output.
•
• USB (NAV E 501 only)
• Lit steadily – The encoder is actively sending and receiving a NAV USB stream.
Blinking – The encoder is unable to establish a NAV USB stream.
•
Unlit — The encoder is not actively sending and receiving a NAV USB Stream.
•
E USB LEDS (NAV E 501 only)— Indicates the status of the USB stream, as follows:
• Host
Lit steadily – The encoder is in USB host mode, the default condition.
•
• Unlit – The encoder is in USB device mode.
• Active
• Lit steadily – A host or USB device is connected to the rear panel USB port.
Unlit – No host or USB device is connected to the rear panel USB port.
•
• Blinking – A USB device or hub is connected to the encoder and is drawing more power than the USB port can supply.
