Removing the Black Mat

The Medi-2200 Plus is come with a Black Mat put on the digitizer lid when
shipping. This Black Mat is designed to work with scanning of reflective materials
such as photographs, documents or prints as well. It is not designed to work
with scanning of X-ray films. During scanning X-ray films, the Black Mat should
be removed to reveal the light source in the digitizer for X-ray films.
To remove the Black Mat:

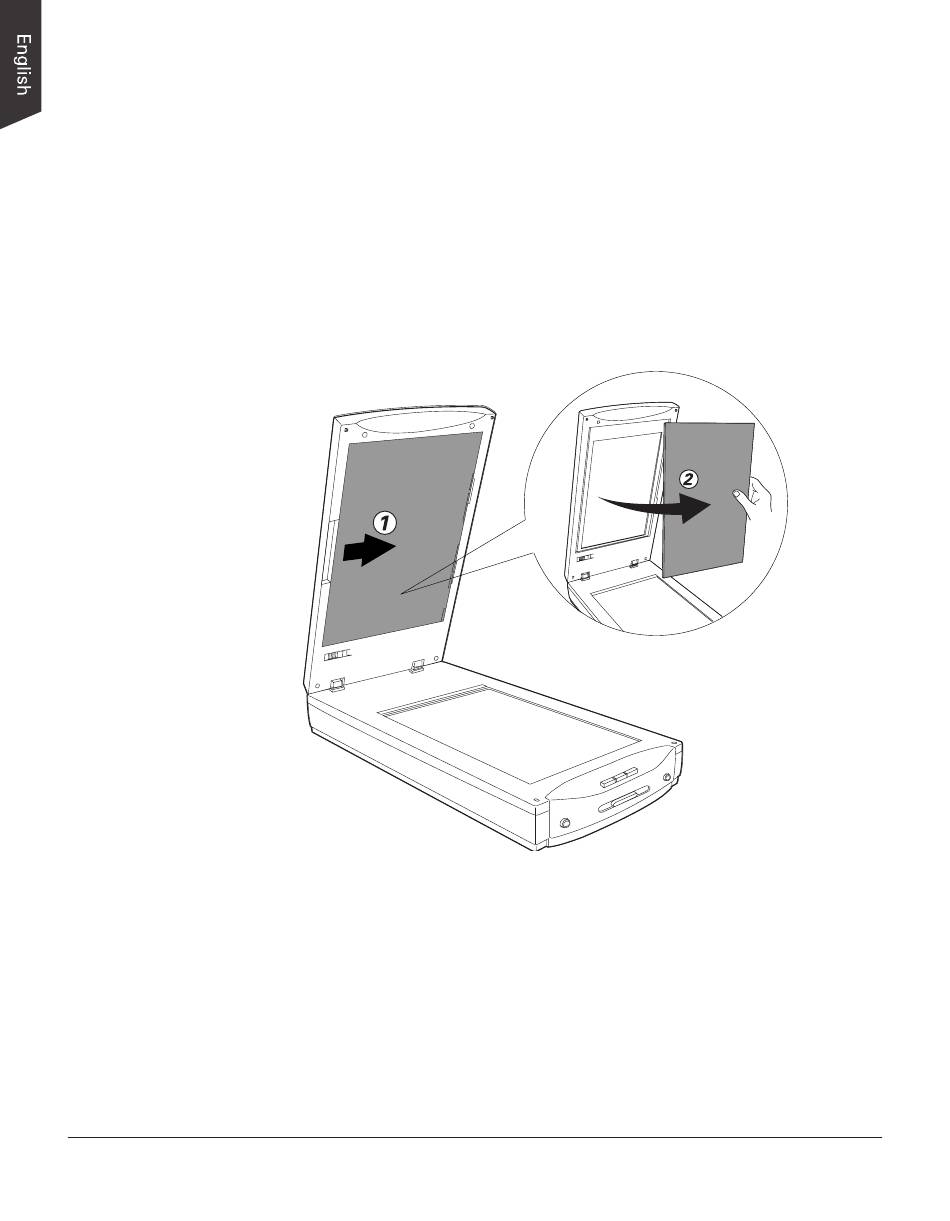

Raise the digitizer lid (TMA) and push the Black Mat to the side (shown in
diagram 1) to remove from the digitizer lid (shown in diagram 2).
