Digitizing Reflective Originals

To scan reflective originals, such as photographs, documents or prints, you can
still use the Medi-2200 Plus with built-in transparency adapter.

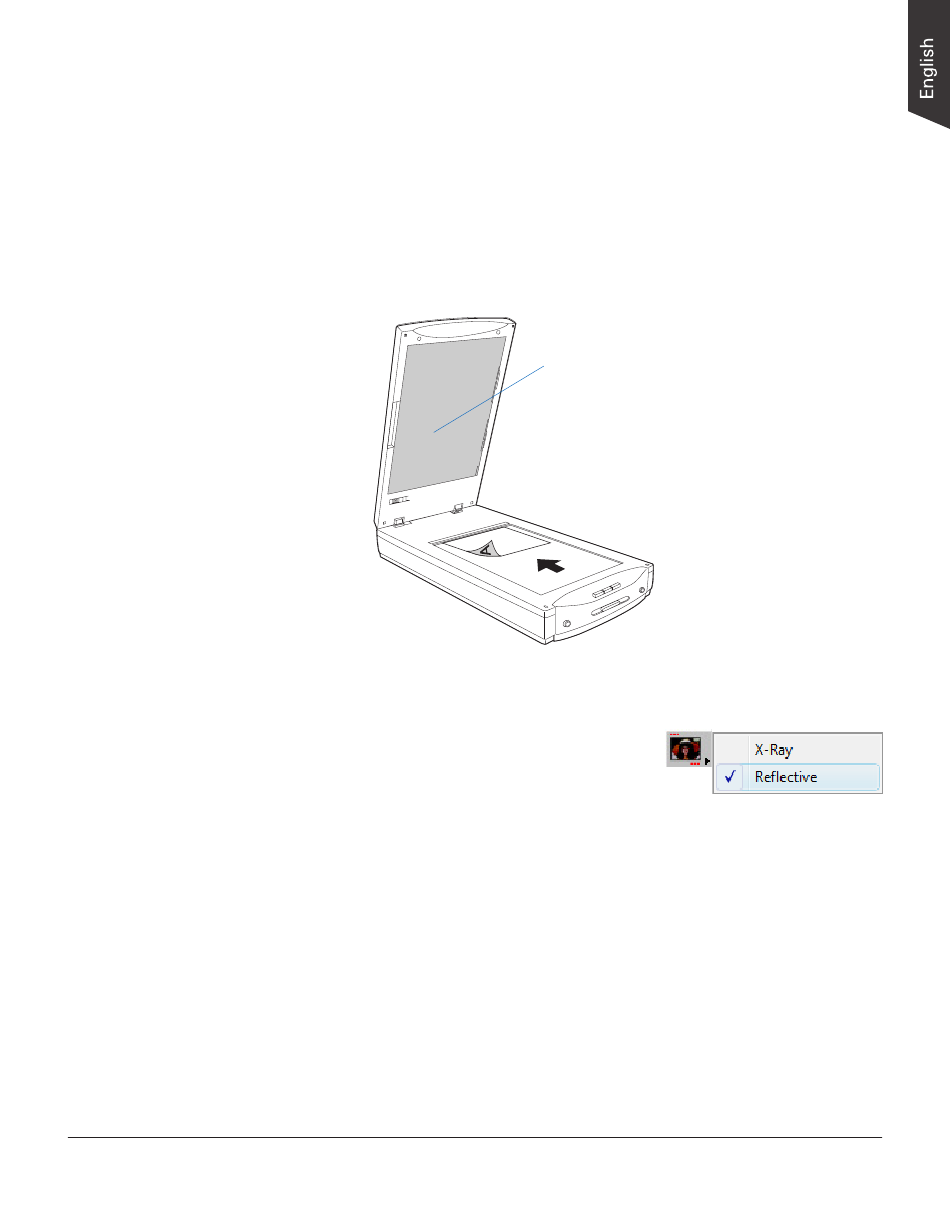

1. Raise the digitizer lid, and place the reflective original to be scanned facing
2. Place the top end of the document towards the back of the digitizer, then
3. Launch ScanWizard Medi (either as a stand-alone by clicking the program
4. Make sure you are in the "Reflective" scanning
5. Click the Overview button to perform a preliminary scan of the image, which
6. In the Preview window, you can select the Scan Frame tool from the Toolbar,
7. Specify your scanning requirements in the Settings window.
down on the digitizer glass surface.
lower the digitizer lid on the glass surface.
icon, or by using the "File-Import" or "Scan" command from an application
program).
mode. If not, click the "Scan Material" icon in
the Preview window; then, select "Reflective"
as your scanning mode.
will appear in the Preview window.
and resize the scan frame (floating dotted line) around the image by dragging
on the edge or corner of the scan frame to determine the final size of the
actual scan.
a) Select a desired image type.
b) Select a desired resolution.
c) Adjust the scan frame settings if necessary.
Make sure that the Black
Mat is installed on the
digitizer lid (TMA)
Medi-2200 Plus User's Manual 33
