B. Using the Cephalometric X-Ray Film Holder

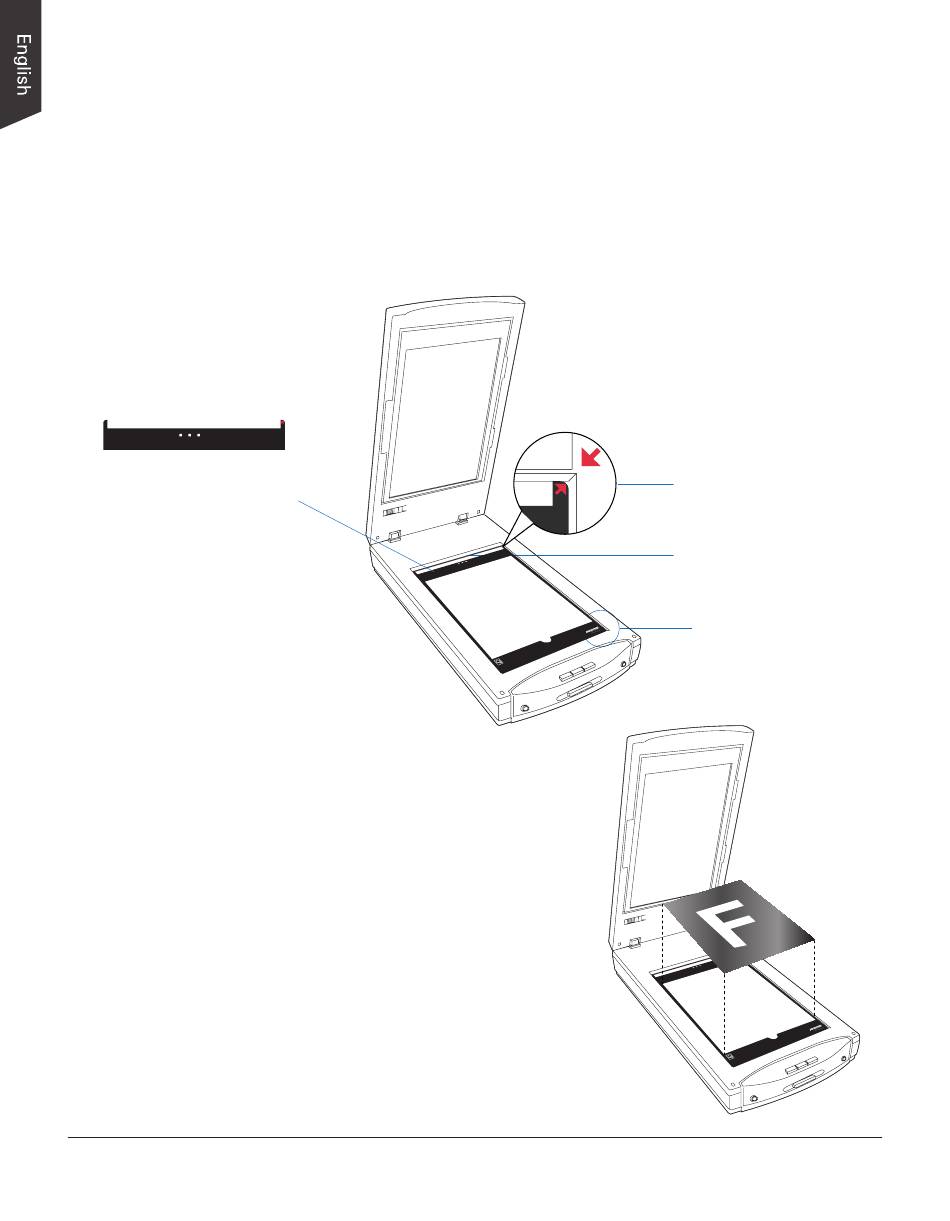

To scan a cephalometric film, use the Cephalometric X-Ray Film Holder, which
can hold a single piece of cephalometric film.
1. Make sure that the Black Mat is removed from the digitizer lid.
2. Place the Cephalometric X-Ray Film Holder on the digitizer glass surface.
U-shaped edge
Important: Align the holder's top
corners (left and right) of the
U-shaped edge firmly against the
top edge of the glass surface.
When placing the film holder,
make sure that the Calibration
window on the glass surface is
kept clear and free of obstruction
at all times.
3. Place the cephalometric film to be
26 Medi-2200 Plus User's Manual
Make sure to orient the film holder with the "Microtek" logo facing up.
Cephalometric Cephalometric
X-Ray Film Holder X-Ray Film Holder
scanned inside the frame of the film
holder, with the human head facing to
the right of the digitizer. Then, lower
down the digitizer lid.
Note that the red arrow
marks on both the film
holder and digitizer's top
ruler are pointing to each
other.
Calibration window
Microtek logo
