Digitizing Dental Films without Film Holder

If the supplied film holder is not going to be used, Medi-2200 Plus also allows
you to scan the dental films without any film holder on the scan bed. Follow the
steps below to perform your scan.

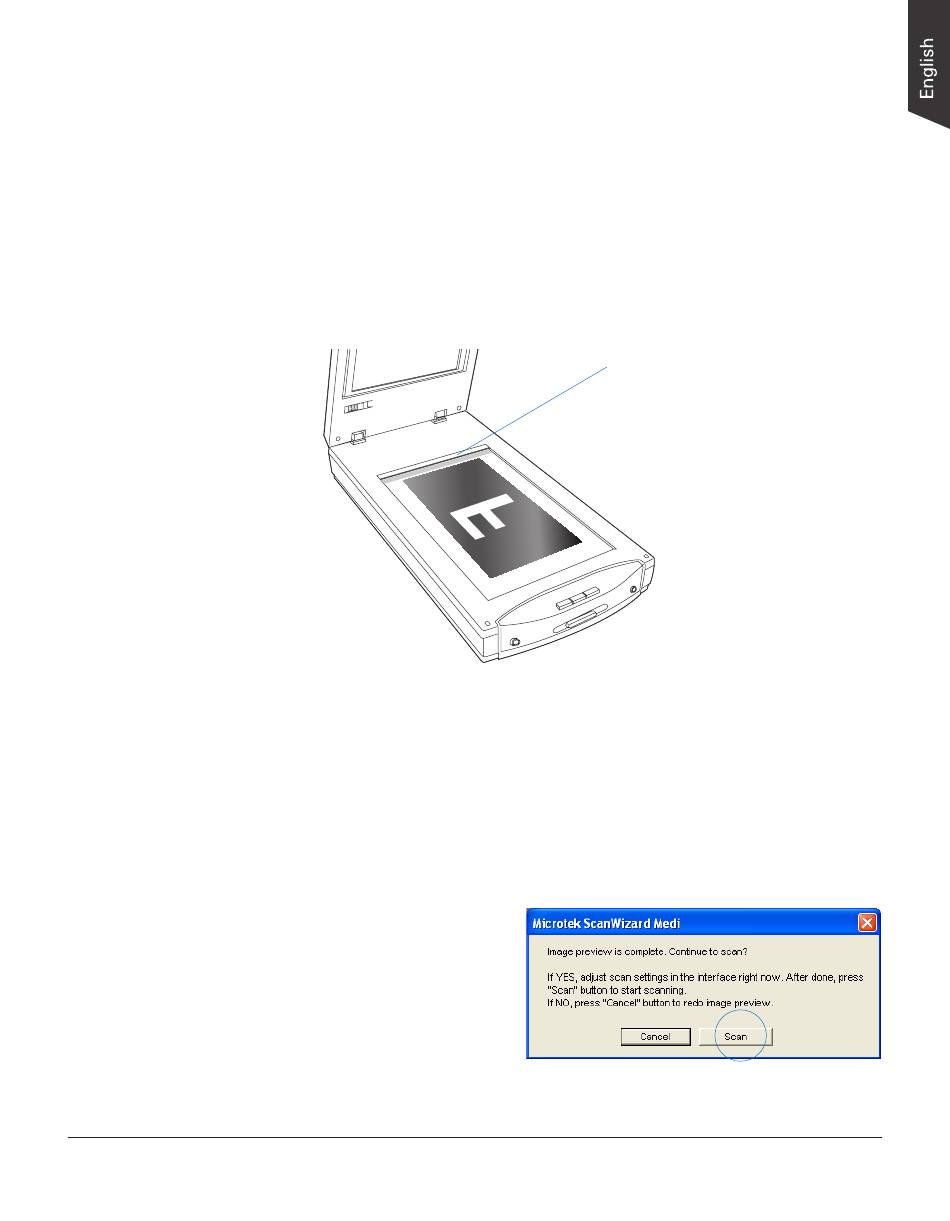

1. Place the dental films to be scanned facing down on the digitizer glass
2. Follow the procedures (steps 2 through 6) for "Scanning Dental Films"
3. Click the Smart-Scan button on the control panel or any buttons on the Medi-
surface, then lower down the digitizer lid.
Proper positioning of the film on the digitizer is important for getting a correct
image. Incorrect positioning of film will result in an incorrect image.
to launch the ScanWizard Medi software, and to specify your scanning
requirements.
2200 Plus unit to start scanning.
If you do not use a supplied holder, then start the scanning process, when
the overview is finished, ScanWizard Medi will prompt you a window to ask
if you want to continue the scanning.
You can select the Scan
Frame tool from the Toolbar
in the Preview window, and
directly resize the scan frame
(floating dotted line) around
the image by dragging on the
edge of corner of the scan
frame.
When done, click the Scan button to continue your scanning.
When placing the film, make sure
that the Calibration window (top
area of the glass surface) on the
scan bed is kept clear and free
from obstruction at all times.
Medi-2200 Plus User's Manual 31
