Connecting the Digitizer

Before connecting the Medi-2200
Plus with your computer, make sure
that the digitizer lid (TMA) has been
properly installed, with its connector
securely connected to the scanner's
15-pin accessory port. If not, plug the
connector of the TMA into the digitizer's
15-pin accessory port.

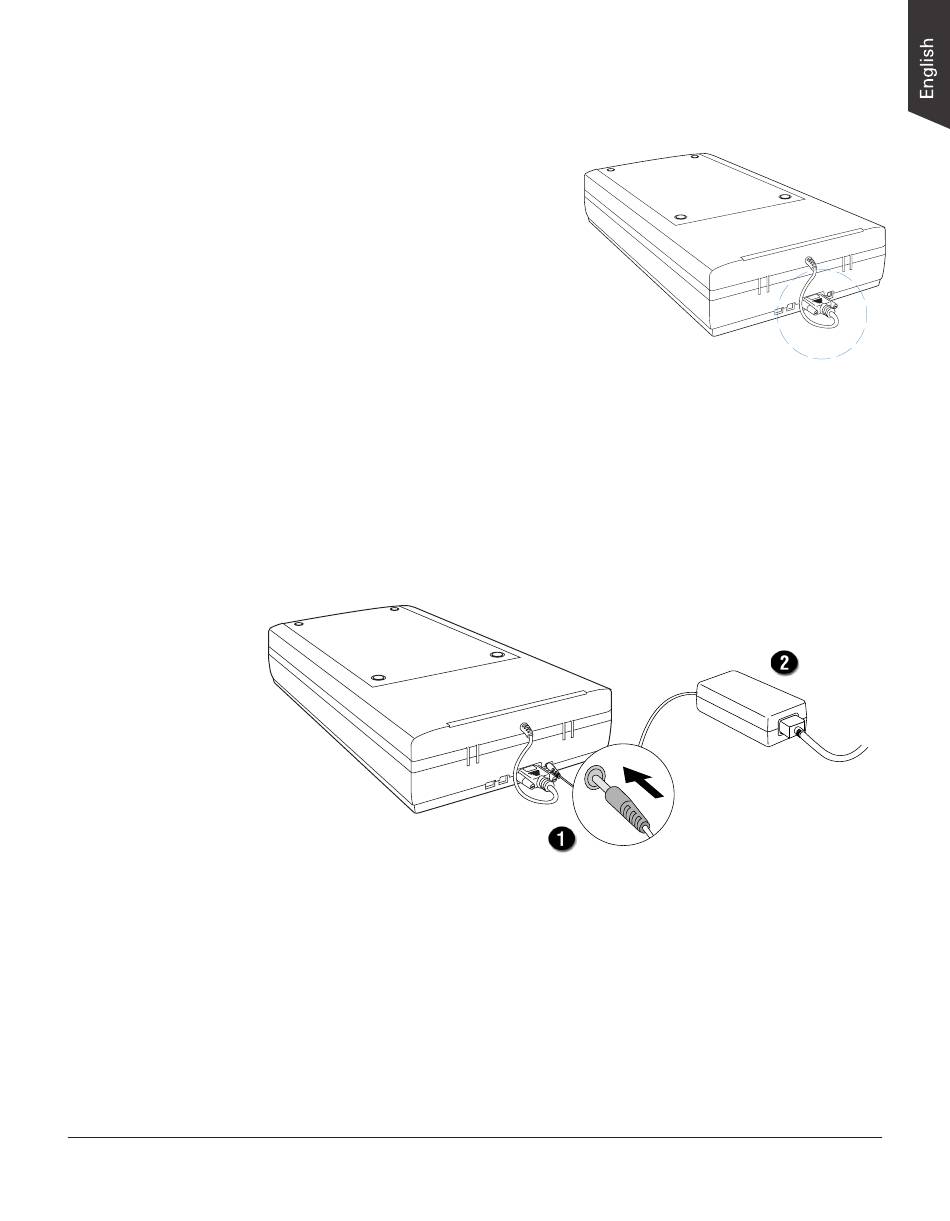

To the Power adapter

1. Connect the power adapter to the back of the digitizer.
2. Plug one end of the power cord into the power adapter, and plug the other
end of the power cord into a wall outlet or other power source.
Medi-2200 Plus User's Manual 21
