VLT ® HVAC Drive Design Guide

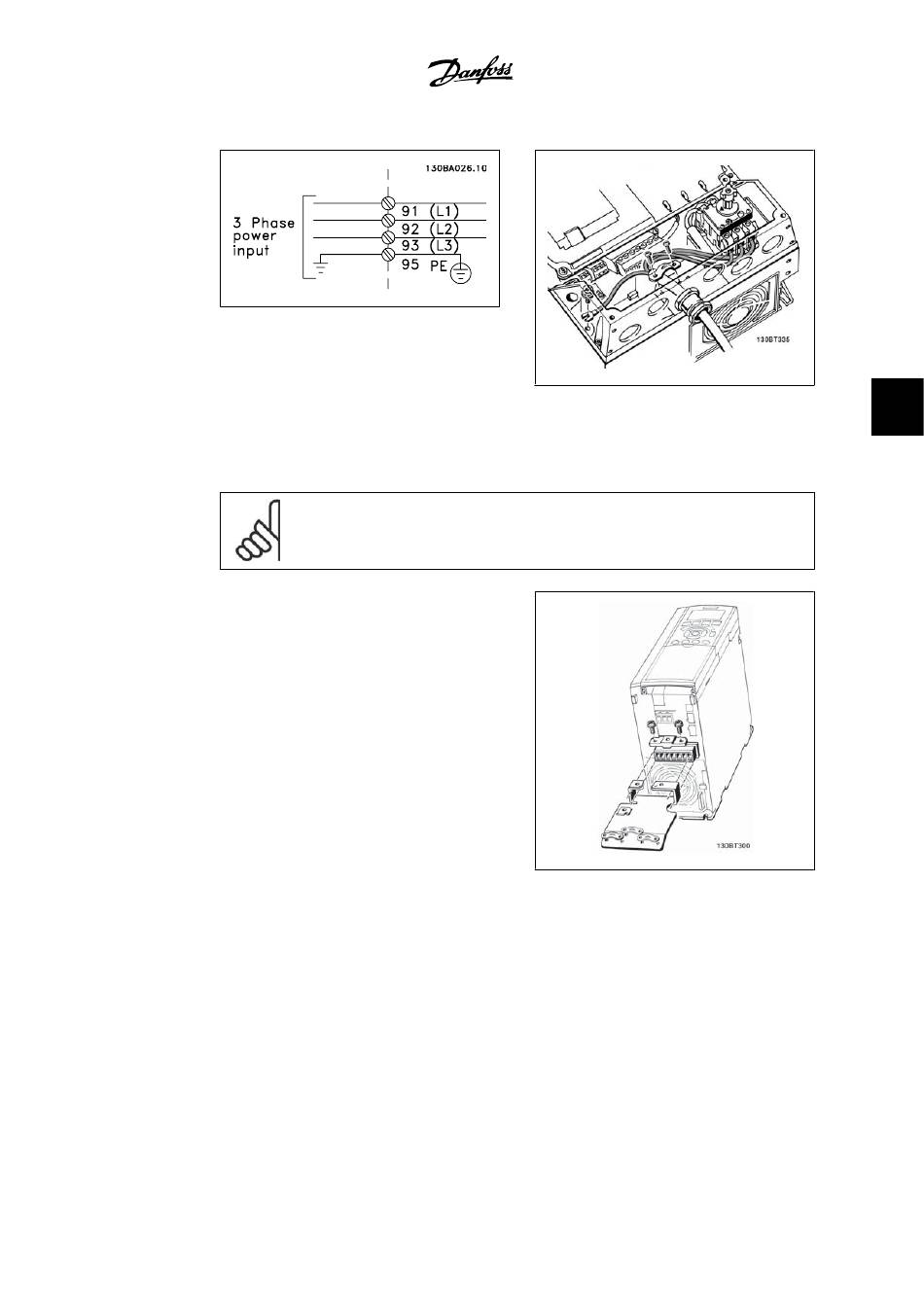

5.5: Terminals for line supply and grounding.
5.2.4. Motor Connection
1.
2.
3.
4.
5.
NOTE
Motor cable must be shielded/armored. The use of an unshielded/unarmored cable
is against EMC requirements. For more information, see
Fasten a decoupling plate to the bot-
tom of the adjustable frequency
drive with screws and washers from
the accessory bag.
Attach the motor cable to terminals 96 (U), 97 (V), 98 (W).
Connect to ground connection (terminal 99) on decoupling plate with screws from the
accessory bag.
Insert terminals 96 (U), 97 (V), 98 (W) and motor cable to terminals labeled MOTOR.
Fasten shielded cable to the decoupling plate with screws and washers from the acces-
sory bag.
MG.11.B4.22 - VLT ® is a registered Danfoss trademark.
5.6: How to connect to the line supply and
grounding with disconnector (A5 enclosure).
EMC specifications
5.7: Mounting of decoupling plate
5. How to Install
