3.6.2. General Purpose Input Output Module MCB 101
MCB 101 is used for extension of the number
of digital and analog inputs and outputs of the
VLT HVAC.
Contents: MCB 101 must be fitted into slot B
in the VLT HVAC Drive.
•
•
•
Galvanic Isolation in the MCB 101
Digital/analog outputs in the MCB 101 are galvanically isolated from other inputs/outputs on the
MCB 101, but not from the ones on the control card of the drive. Digital/analog outputs in the
MCB 101 are galvanically isolated from other inputs/outputs on the MCB 101, but not from the
ones on the control card of the drive.
If digital inputs 7, 8 or 9 are to be switched using the internal 24 V power supply (terminal 9), the
connection between terminal 1 and 5 illustrated in the drawing has to be established.

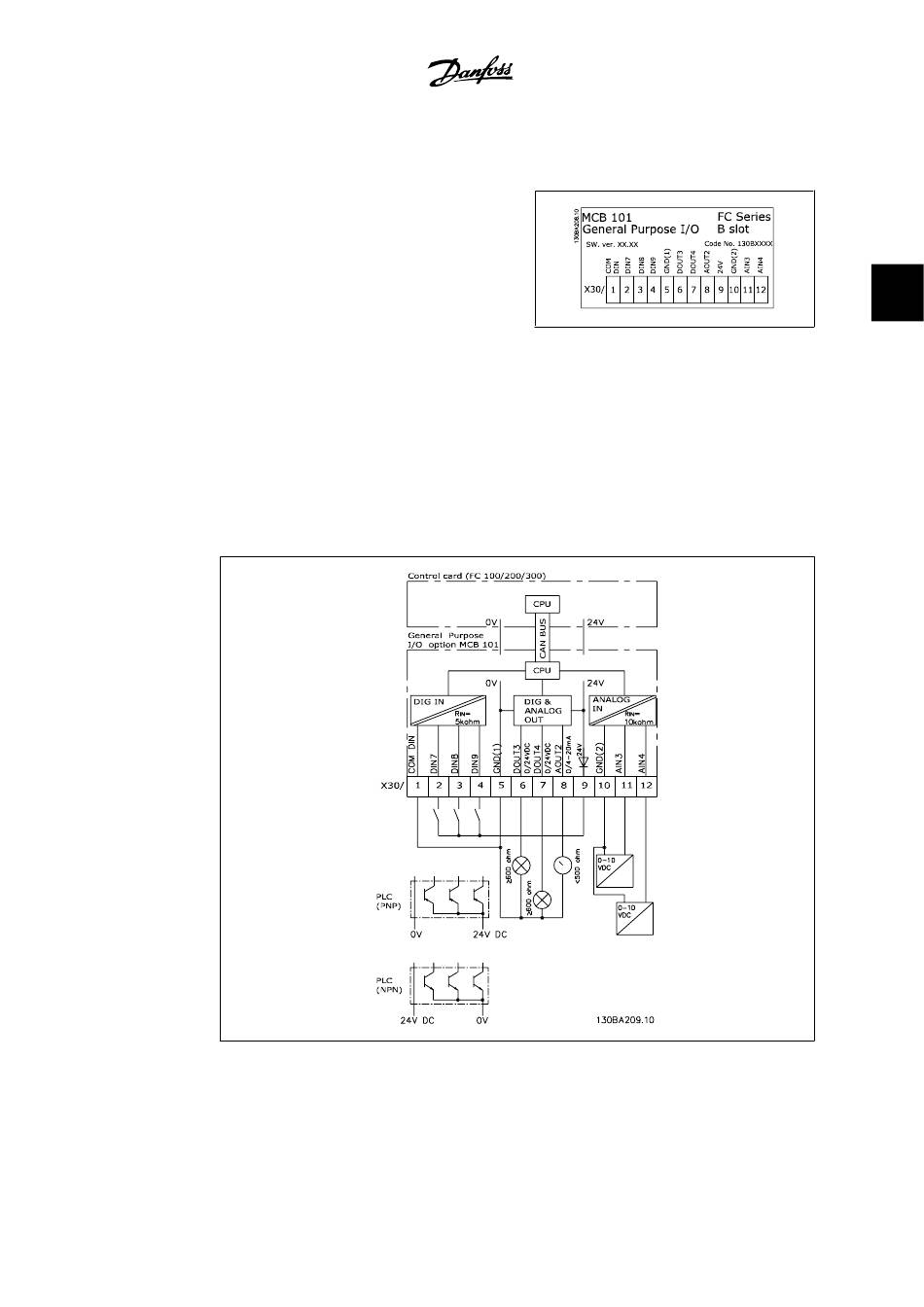

3.10: Principle Diagram
MCB 101 option module
Extended LCP frame
Terminal cover
