HVAC Drive Design Guide
2.6.9. Without an adjustable frequency drive

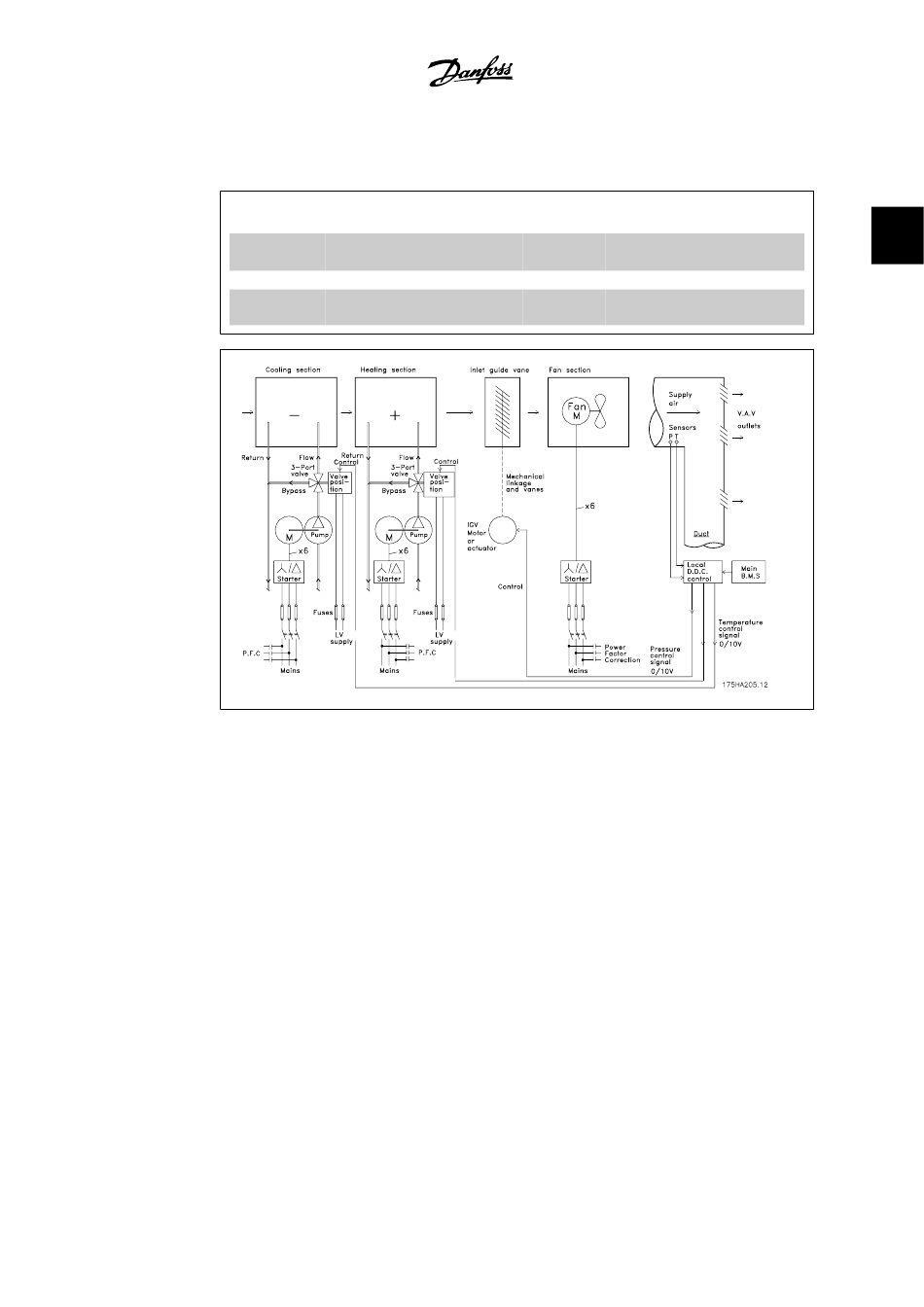

The figure shows a fan system made in the traditional way.
D.D.C.
V.A.V.
Sensor P
=
Direct Digital Control
=
Variable Air Volume
=
Pressure
MG.11.B4.22 - VLT
®
is a registered Danfoss trademark.
2. Introduction to the VLT HVAC Drive
Energy Management sys-
E.M.S.
=
tem
Sensor T
=
Temperature
2
