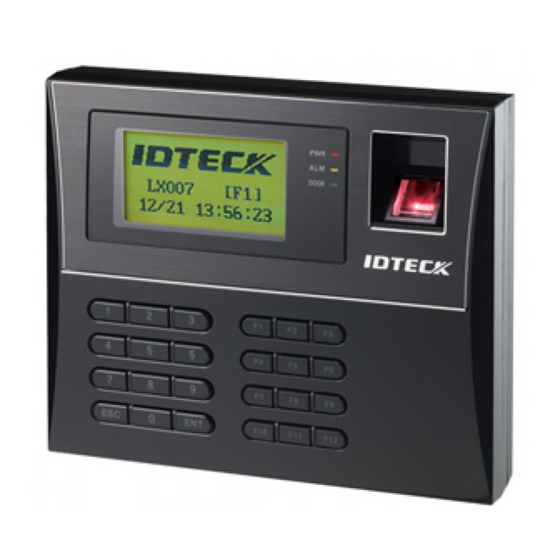

IDTECK LX007 Manual
  1. Manuals
  2. Brands
  3. IDTECK Manuals
  4. IP Access Controllers
  5. LX007
  6. Manual

IDTECK LX007 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX007 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDTECK LX007

Summary of Contents for IDTECK LX007

  • Page 2: Table Of Contents

    Table of Contents ........... . . Table of Contents .
  • Page 3 ............. LX007 .
  • Page 4 ........... 1 Initialization of LX007 .
  • Page 5 ........... . 1.8 Baud Rate Setting .
  • Page 6 ......... . . 5.11 Input Time Schedule Setting .
  • Page 7 ............8.6 Default Setting .
  • Page 8 ......5.1 Please check if the keypad is set to "NOT USE". .

  • Page 9: Safety Information

    Safety Information CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIE D SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is pres ent within this unit.
  • Page 10 3. Do not connect multiple controllers to a single adapter. Exceeding the capacity may cau se abnormal heat generation or fire. 4. Securely plug the power cord into the power receptacle. Insecure connection may caus e fire. 5. When installing the controller, fasten it securely and firmly. The fall of controller may ca use personal injury.

  • Page 11: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s ins tructions.

  • Page 12: General

    The LX007 / LX007SR has 2 relay outputs to control a door lock and an alarm relay that is u sed to warn errors. The graphic LCD supports multiple languages so that the unit can be ope rated anywhere in the world.

  • Page 13: Features

    Features 125KHz(default) Proximity/13.56MHz(optional) Contactless Smart Card, PIN and Finger ● print Recognition Dual function for Access Control and Time & Attendance ● 1:1 Verification and 1:N Identification ● 2 Fingerprint Templates per user ● Auto Touch Sensor for Fingerprint only Identification ●...

  • Page 14: Speicification

    IHC80: Up to 2 inches (5cm) ISC80: Up to 4 inches (10cm) Reading Time (Card) 30ms Verification Time Less than 1sec. Identification Time Less than 2sec. Power / Current DC 12V / Max.650mA LX007: 1 Port for Anti-Pass Back (26bit Wiegand, 8bit Burst for PIN) LX007SR: 1 Port for Anti-Pass Back...
  • Page 15 Model LX007 (34bit Wiegand, 8bit Burst for PIN) Communication RS232 / RS485 (Max.32ch) TCP/IP (Internal LAN Converter required / Optional) Baud Rate 57,600bps (Default) / 9,600bps / 19,200bps / 38,400bps (sel ectable) Input Port 4 Ports :Exit Button, Door Sensor, Aux# 1, Aux#2...
  • Page 16 ESD(Electro Static Discharge) 15KV Verification Time Less than 1 sec. Identification Time Less than 2 sec. Speicification...

  • Page 17: Identifying Supplied Parts

    Identifying Supplied Parts Please unpack and check the contents of the box. If any of these parts are missing, please co ntact a near-by distributor or as soon as possible.

  • Page 18: Product Overview

    PC. Keypad If the LX007 / LX007SR is not connected to the host PC, the built-in keypad and LCD modul e can be used for the entire operations and configuration process.

  • Page 19: Input / Output

    Input / Output The LX007 / LX007SR has 4 built-in input ports and 4 output ports (2 relay outputs and 2 T TL outputs) which can be used to manipulate a wide variety of controls. Time Schedule Setup You can program up to 10 time schedules and assign one time schedule to each user. Each t ime schedule has 8 different time zones from Monday-Sunday (7 time zones) and one holid ay.

  • Page 20: Anti-Pass Back

    1.12 Two Men Operation This feature is used to configure the LX007 / LX007SR to allow a certain user (e.g. a visitor) to pass the door only when that user is accompanied by another special user (e.g. a guide). Both of the visitor and the guide should be authorized together for access.

  • Page 21: Product Explanation

    Panel Description LCD module : The LCD screen displays the status of the LX007. 24-key Keypad : The keypad can be used to manually operate the LX007 with ease. Function Keys : The LX007 has 12 function keys ([F1] - [F12]).

  • Page 22: 6.2.2 Connection Layout

    6.2.2 Connection Layout 6.2.3 Color Coded & Wring Table I/O PORT NAME SIGNAL NAME WIRE COLOR CON-1(2PIN CONNECTOR) Main Power (+12V) DC 12V Power Ground GND (-) Black CON-2 (3PIN CONNECTOR : Serial Printer) RS232-RX Pink wire with white stripe RS232-TX Cyan wire with white stripe RS232-GND...
  • Page 23 I/O PORT NAME SIGNAL NAME WIRE COLOR Door RELAY(NO) NO(1) White wire with red stripe Alarm RELAY(NC) NC(2) Purple wire with white stripe Alarm RELAY(COM) COM(2) White Alarm RELAY(NO) NO(2) Purple Exit Button EXIT Orange Door Sensor CONTACT Yellow wire with red stripe CON-6 (4PIN CONNECTOR : Not Use) CON-7: TCP/IP RJ45 CONNECTOR Product Explanation...

  • Page 24: Installation Tips & Check Point

    Installation Tips & Check Point Check Points before Installation Selection of Cable The system installation cables should be connected as follows; p.16...

  • Page 25: Recommended Cable Type And Permissible Length

    Recommended Cable Type and Permissible Length Reference Description Cable Maximum Specification Distance LX007 Power (DC12V) Belden #9409, DC Power -> LX007 18 AWG 2 conductor, unshielded Reader Belden #9512, 150m (Power and Data) 22 AWG Exit Reader -> RF20 4 conductor, shielded...

  • Page 26: Check Point During Installation

    Check Point during Installation Termination Resistor Termination resistors are used to match impedance of the network to the impedance of the transmission line being used. When impedance is mismatched, the transmitted signal is not completely absorbed by the receiver and a portion of signal is reflected back into the transmi ssion line.

  • Page 27: Reverse Diode Connection

    If you do not find either earth ground or chassis ground, then co nnect one end of shield wire to power ground. (GND of LX007) Note that if the chassis grou nd is not properly connected to the earth and floated from the ground level, then groundin g to the chassis ground will give the worst communication.
  • Page 28 er. It is strongly recommended to add a reverse diode between the inductor coils to absorb t his surge voltage. p.20 Installation Tips & Check Point...

  • Page 29: Installation Of Product

    Installation of Product Wall Mount (Unit: mm) p.21...

  • Page 30: System Initialization

    (The initialization button can be found on the back of the LX007.) Then, the LCD will first display “Initialize OK? 1:Yes 0:No”. Press <1> key if you w ant to initialize the system. After all the initialization process is completed, the system will be operating in the normal mode and the LCD will display “, LX007 [F1], Date Time”.

  • Page 31: Wiring

    Mount and screw it. Wiring Power Connection 1. Connect (+) wire of DC 12V Power Supply to Red wire. 2. Connect GND (-) wire of DC 12V Power Supply to Black wire. Input Connection Exit Button Connection 1. Connect one wire from an Exit Button to wire. 2.

  • Page 32: 2.2K Resistor Connection For Cut Off Check

    2.2K Resistor Connection for Cut Off Check You have to connect a 2.2K resistor between the input wire (e.g. Orange wire) and the GND to apply the Cut Off Check feature. First, select whether or not to check the cutoff status of each device from [F5 SETUP MENU] ->...

  • Page 33: External Reader Connection

    2. Connect (-) wire of the Proximity Reader to GND. 3. Connect Data-0 wire of the Proximity Reader to the Pink wire. 4. Connect Data-1 wire of the Proximity Reader to the Cyan wire. Compatible Readers (External Reader): LX007 Wiring p.25...

  • Page 34: Lx007Sr

    Standard 26bit Wiegand + 8bit Burst Format Proximity and keypad Reader ● LX007SR Standard 34bit Wiegand Format Proximity Reader ● Standard 34bit Wiegand + 8bit Burst Format Proximity and keypad Reader ● Recommended Readers LX007 RF TINY ● RF10/20/30 ● RFK101 ● FGR006 ●...

  • Page 35: Communication

    2. Connect RS232-RX (Red wire with White stripe) to the pin #3 (TX) of the 9-pin connect 3. Connect GND (Black wire) to the pin #5 of the 9-pin connector. 4. Plug in the 9-pin female connector to of the host PC. 5. Install and run the LX007 Application Software. p.27...

  • Page 36: Rs485 Communication Port Connection

    I. Connect RS485-RTX (+) (Yellow wire) of one LX007 to RS485-RTX (+) (Yellow wir e) of another LX007. II. Connect RS485-RTX (-) (Gray wire) of one LX007 to RS485-RTX (-) (Gray wire) of another LX007. III. Set a unique Communication Address for each LX007.

  • Page 37: Connection (Optional)

    1. Connect the LAN cable of the network system to the RJ45 jack of the LX007. 2. If you install multiple LX007 units and only one TCP/IP port is available, you may connec t one LX007 to TCP/IP network and then connect all the LX007 units using the RS485 multiple communication as shown in the diagram below.

  • Page 38: Serial Printer Connection

    Serial Printer Connection A 9-pin connector (Serial communication connector, female) is needed to connect the LX00 7 with a serial printer via RS232 communication. Please follow the steps below. 1. Connect RS232-TX (Cyan wire with White stripe) to the pin #2 (RXD) of the 9-pin conn ector.
  • Page 39 4. Plug in the 9-pin female connector to of the serial printer. 5. Set the Print Output setting to ‘Auto Print’ or ‘Manual Print’ from [F3 SETUP MENU]. RS485 Communication Port Connection p.31...

  • Page 40: Basic Setting

    (The initialization button can be found on the back of the LX007.) Then, the LCD will first display ”Initialize OK? 1:Yes 0:No”. Press <1> key if you w ant to initialize the system. After all the initialization process is completed, the system will be operating in the normal mode and the LCD will display “, LX007 [F1], Date, Time”.

  • Page 41: How To Enter The Setup Menu

    How to Enter the SETUP MENU To set up the LX007 or to change the settings, you have to enter the SETUP MENU first. To do so, press <0> key eight (or ten) times and <ENT> key on the keypad. (The Default Master I D is ‘00000000’.

  • Page 42: Date / Time Setting

    Time after the time setting is completed, but the year and day will not be displayed. The LX007 has a 24-hour system. Day codes are 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday.

  • Page 43: Registration Using Keypad (Pin)

    Registration Using Keypad (PIN) In case you make a typing mistake during the registration process, you can press th e F1 button to erase the errors. Terminology Scanning ● Means the reader is waiting for an ID number to be entered. The number of the card wil l appear with a beep sound when you present a card.
  • Page 44 ‘1’ only assigns Reader*1 (Built-in Reader) and code ‘2’ assi gns Reader*2 (Exit Reader). If you enter ‘1’ in the RD field(Only Reader*1 assigned) and try to exit through Reader*2 (Exit Reader) then the LX007 generates an error message (“Access Door Error”) on the LCD display.

  • Page 45: How To Place Your Finger Onto The Scanner

    ‘4’ – Level *4 ○ ● FP is the Fingerprint Usage Flag (1 digit). You can decide whether or not the user will us e a fingerprint. ‘0’ – Not using a fingerprint ○ ‘1’ – Using a fingerprint ○ How to Place Your Finger onto the Scanner When you register or verify your fingerprint, please place your finger onto the scanner corre ctly as shown in the illustration below.

  • Page 46: Operations

    Operations Normal Operation Power on When power is applied to the LX007, the Red LED is lit. Reading of registered card When a registered card (or a PIN) is read and his/her fingerprint is verified, the Door (Relay# 1) will open for 3 seconds (Default) with the Green LED on.

  • Page 47: Default Setting

    Default Setting When you operate the system for the first time or after the system has been initialized, the f actory setting values ( i.e. the default settings) will be restored in the memory. You can chan ge the settings for the desired application. Default Setting p.39...

  • Page 48: Setting Changes

    Setting Changes p.40...

  • Page 49: F1 Setup Menu

    F1 SETUP MENU F1 SETUP MENU p.41...

  • Page 50: Language

    Supported languages are English, Spanish and Portuguese. ● One optional language of choice(Korean, Chinese, Japanese or Arabic) can be added. ● For addition of an optional language, please contact IDTECK. ● Date and Time Setting e.g. 200802101330152 = Feb. 10, 2008, 13:30:15, Monday Reader #1 Mode READER#1 refers to the built-in proximity reader in the unit.

  • Page 51: Reader #2 Mode

    The READER#2 MODE setting can be configured in the same way as READER#1 MODE setti ng in the previous section. NOTE: READER#2 refers to the Exit Reader connected to the LX007. ID ONLY Select this mode if the Exit Reader is operating without using a password ID+P/W Select this mode if the Exit Reader is using password verification.

  • Page 52: Reader #2 Key Input

    If you have a communication problem, please check the followings; ● Check the Communication Address for both the LX007 and the host PC in the Soft ○ ware.- Check the Baud Rate setting of both the LX007 and the host PC software.
  • Page 53 F2 SETUP MENU F2 SETUP MENU p.45...
  • Page 54 USE, the LX007 keeps all event transactions stored in the memory in case the event memory is full. On the other hand, if you select NOT USE, new events will be overwritten into the eve nt buffer. If you use the LX007 in a stand-alone configuration (just for door access), select N OT USE.
  • Page 55 Time Unit Setting This setting allows you to define the unit of time. 1sec Output Time is calculated in the time unit of 1 second for the IN/OUT definition. 0.1sec Output Time is calculated in the time unit of 1/10 second (or 100ms) for the IN/OUT definition e.g.
  • Page 56 This setting is related to the Output Time Schedule setting of [F5 SETUP MENU]. The Output Time Schedule setting can be used to generate outputs for a certain assigned period of time, for example to keep the door open during that time. By setting this Output T/S + ID setting t o USE, you can delay the output (e.g.
  • Page 57 Duress Mode You can set Duress Mode for Reader#1. The default setting is NOT USE. If you select USE, th e LCD will display the default Duress Password ‘00’. If you want to change the Duress Passw ord, press <ENT> key and enter a 2-digit Duress Password. If you do not want to change it, p ress the <ESC>...
  • Page 58 Wiegand Output This feature allows you to use the LX007 as a reader (as opposed to as a controller). If this se tting is set to USE, the LX007 sends 26bit Wiegand Output through two TTL output ports. (T he LX007SR sends out 34bit Wiegand output.) NOT USE Normal TTL outputs will be activated.
  • Page 59 No alarm. A Door Contact Sensor must be installed on the door for this application. F3 SETUP MENU F3 SETUP MENU p.51...
  • Page 60 By pressing ‘0’ (no printing) or ‘1’ (printing) key, you can manually select whether or n ot to print a new event. NOT USE No printing output. Voice Volume The LX007 tells you its status out loud. You can adjust the volume of the voice from 0 (mute ) to 4 (maximum). p.52 Setting Changes...
  • Page 61 This setting allows you to set the Arm Code and the Disarm Code. After setting the Arm Cod e or Disarm Code, you can set the LX007 to the ARM mode by entering the ARM code and presenting an ARM/DISARM card (i.e. a card that was registered with Code 3). Once the LX 007 toggles into ARM mode, all readers freeze and stop reading cards.
  • Page 62 One Time Read If this option is set to USE, the same card can’t be read twice in a row within 30 seconds. Max. User Setup You can select the maximum number of user registrations; 10,000 or 20,000. If the maximu m number of registrants is set to 20,000, the maximum number of event transactions beco mes 10,000.
  • Page 63 The Name Display option is used to determine whether the unit will display the name of the user who receives access. This setting also determines whether to print name when printing events using serial printer. User names can only be downloaded from the software. If you register a new user via the device SETUP MENU, the name of the user can’t be entered and, therefore, won’t be displayed when the user receives access.
  • Page 64 Time Schedule There are 10 Time Schedule Codes available for users. Time Schedule Code “00” is the defaul t setting that allows access to all users at any time. The user can program the Time Schedule Codes 01 to 10. Each Time Schedule Code has 8 programmable days (i.e. Sun, Mon, Tue, W ed, Thu, Fri, Sat and Holiday) and each day has 5 Time Intervals (i.e.
  • Page 65 There are 10 Holiday Schedule Codes (H/S CODE) available for users. Holiday Schedule Code “00” is the default code, which includes no Holidays in it. The user can program the Holiday Schedule Codes 01 to 10. Each Holiday Schedule Code can have up to 100 programmable h olidays.
  • Page 66 For example, suppose you want to access the door by only presenting a card from 09:00 to 17:00 and use the Fingerprint Verification method for the rest of the time. Then, you can do so by setting [R1 MODE SETTING] to ID+F/P Mode, which is for the system operating mode, and then program T/S Code 01 so that it can include a Time Interval between 09:00 and 17: 00.
  • Page 67 F5 SETUP MENU Table 12-1 Default Output Settings for Input Source OUTPUT Door Relay Alarm Relay TTL#1 TTL#2 Buzzer (DR) (AR) (T1) (T2) (BZ) [1] EXIT BUTTON [2] DOOR CONTACT [3] AUX Input #1 [4] AUX Input #2 [5] TAMPER ALARM F5 SETUP MENU p.59...
  • Page 68 [6] CUT OFF ALARM [7] DURESS ALARM [8] ARM/DISARM OU [9] DOOR TIME OUT [10] OUTPUT TIME S CHEDULE INPUT Exit Button Door Contact Sen Aux Input # Aux Input # Tamper Switc (EX) sor (DC) 1 (I1) 2 (I2) h (TP) [11] INPUT TIME SCH EDULE...
  • Page 69 TTL#2 Output Buzzer Output Door Contact Output Setting Aux Input#1 Output Setting Aux Input#2 Output Setting Tamper Alarm Output Setting Cut Off Alarm Output Setting Duress Alarm Output Setting Arm/Disarm Output Setting Door Time Output Setting The rest of output activation time settings above can be configured in the same way as the E xit Button Output Setting in the section 12.5.1, which means you can refer to that section t o get some idea as to how to do the configuration.
  • Page 70 le Code for each output. Door Relay Output Alarm Relay Output TTL#1 Output TTL#2 Output Buzzer Output 5.11 Input Time Schedule Setting You can assign a Time Schedule Code to each input to activate the input only during that pe riod.
  • Page 71 Aux Input#2 T/S Code Tamper Switch Input T/S Code 5.12 Cut Off Check Setting You can choose whether or not to check the connection cutoff of each input port. ‘00’ mea ns not using this feature and ‘01’ means using it. Before applying this feature, a 2.2K resistor should be connected between the inp ut wire and the GND.
  • Page 72 F6 SETUP MENU Table 12-2 Default Output Setting for Different Inputs OUTPUT Door Relay Alarm Relay TTL#1 TTL#2 Buzzer (DR) (AR) (T1) (T2) (BZ) [1] Reader#1 ID OK LV1 [2] Reader#1 ID OK LV2 [3] Reader#1 ID OK LV3 [4] Reader#1 ID OK LV4 [5] Reader#1 ID Error p.64 Setting Changes...
  • Page 73 [6] Reader#1 T/S Error [7] Reader#1 APB Error [8] Reader#2 ID OK LV1 [9] Reader#2 ID OK LV2 [10] Reader#2 ID OK LV3 [11] Reader#2 ID OK LV4 [12] Reader#2 ID Error [13] Reader#2 T/S Error [14] Reader#2 APB Error Output Setting for Reader#1 ID OK Level 1 You can program the Output Activation Time, the length of time during which the output is activated after the EXIT button is pressed.
  • Page 74 Output Time setting from 12.6.2 to 12.6.14 can be configured in the same way as 12.6.1 R D1 ID OK Level 1 Output setting. Output Setting for Reader#1 ID OK Level 2 This output time is applied for the users registered with Level#2 output. Output Setting for Reader#1 ID OK Level 3 This output time is applied for the users registered with Level#3 output.
  • Page 75 6.10 Output Setting for Reader#2 ID OK Level 3 This Output Time is applied for the users registered with Level#3 output. 6.11 Output Setting for Reader#2 ID OK Level 4 This Output Time is applied for the users registered with Level#4 output. 6.12 Output Setting for Reader#2 ID Error This output time is applied when a user that is not registered in Reader #2 attempts access.
  • Page 76 ID Registration Registration by Card Registration Using Keypad NOTE: In case you make a typing mistake during the registration process, you can press the F 1 button to erase the errors. Terminology Scanning ● Means the reader is waiting for an ID number to be entered. The number of the card wil p.68 Setting Changes...
  • Page 77 ‘1’ only assigns Reader*1 (Built-in Reader) and code ‘2’ assi gns Reader*2 (Exit Reader). If you enter ‘1’ in the RD field(Only Reader*1 assigned) and try to exit through Reader*2 (Exit Reader) then the LX007 generates an error message (“Access Door Error”) on the LCD display.
  • Page 78 ○ ID Delete Registered IDs can be deleted from the LX007 by presenting the card or entering the ID num ber. After entering the ID DELETE mode, present the card you want to delete. Alternatively, you may enter an 8 digit ID number and press <ENT> key from the keypad. The ID number w ill appear on the LCD and that ID will be removed from the device and the “ID DELETED”...
  • Page 79 sage will be shown on the LCD. If the ID number is not found, the “UNREGISTERED ID” mess age will appear. You can delete multiple IDs by repeating this process. ID List The LCD will display the 5-digit ID Index, 8-digit ID number, 4-digit Password, Timeschedule for Reader#1(TA) and Reader#2(TB), ID code(C), accessible Readers(RD), operating mode fo r Reader#1(MA) and Reader#2(MB), the output level(LV) and usage of Fingerprint(FP) for e ach user.
  • Page 80 The default Master ID is “00000000” (or “0000000000” for LX007SR) without a fingerprint. Up to 10 Master IDs (from “01” to “10”) can be stored in LX007. To delete a Master ID, enter “00000000” (or “0000000000” for LX007SR) in the M aster ID Registration process.
  • Page 81 Event Count The LCD displays the total number of events stored in the memory. The count automatically i ncreases as a new event is recorded in the memory. The LCD in the left figure shows that a t otal of 12345 Events are stored in the memory. Up to 20,000 event buffers are available.
  • Page 82 System Initialization This operation is used to initialize the LX007 system. Press <ENT> key for initialization (when installing LX007 first or when resetting the system in the event of malfunction). Press the <1> key to initialize or <0> key to cancel the operation.
  • Page 83 All ID Clear When you want to delete all the stored User IDs, you can do so in this menu item. Press <EN T> key first, then press <1> key to clear all the registered User IDs or <0> key to cancel the op eration.
  • Page 84 Default Setting Here, you can restore the default settings of the LX007, if necessary. Press <ENT> key and pr ess <1> key to restore the default setting values for all menus and or <0> key to cancel the o peration.
  • Page 85 F9 SETUP MENU Firmware Version Check The Firmware Version of the unit is displayed on the LCD. Press <4> or <6> key to see other i tems of the menu on [F9 SETUP MENU]. F9 SETUP MENU p.77...
  • Page 86 Input Test The 5-digit number shows the input status, where “0” indicates that the input port is open ci rcuit, and “1” indicates that the input port is short circuit to the ground level, and, finally, “2” indicates that the input port is disconnected. Output Test The first two tests verify the output relays (Door Relay and Alarm Relay) are working properl y.
  • Page 87 “*” on the LCD. Reader Test The LCD will display “Scanning…”, which means the LX007 is waiting for a card to be presen ted. Present a card to one of the readers. When the reader successfully reads the card, the L CD displays the Reader number and the 8-digit (or 10-digit for LX007SR) card number.
  • Page 88 You can test whether the communication works properly or not. Before executing this test, r emember to connect the RS232 TX wire (Black wire with White stripe) and the RS232 RX wi re (Red wire with White stripe) together. If the communication is malfunctioning, the LCD will show the “TEST FAILED” message. If thi s is the case, check the communication settings and try again.
  • Page 89 If you set Dual finger mode to ‘USE ’, you can register 2 different fingers for your ID so that if one finger is injured, you may verify your ID with the other registered finger. DUAL FING Number of Templatesand Fingers Authentication Succe Recommended Authentica ss Ratio...
  • Page 90 When the LX007 is configured in IDENTIFICATION MODE, it can perform the 1:N identificati on, which means users only need to have their fingerprint identified and the LX007 will mat ch their fingerprint image against all the stored fingerprints. Users will not need to carry thei r cards or enter their ID for each access attempt.
  • Page 91 10.5 Module Version The version of the fingerprint module is displayed. F10 SETUP MENU p.83...
  • Page 92 Appendix A. THE RELATION BETWEEN INPUT AND OUTPUT (DE FAULT) Table 13-1 Default Output Settings for Input Sources OUTPUT Door Relay Alarm Relay TTL#1 TTL#2 Buzzer (DR) (AR) (T1) (T2) (BZ) [1] EXIT BUTT [2] DOOR CON TACT [3] AUX Input [4] AUX Input [5] TAMPER A LARM...
  • Page 93 E OUT [10] OUTPUT T IME SCHEDUL INPUT Exit Button (EX Door Contact Aux Input #1 (I Aux Input #2 (I Tamper Switch Sensor (DC) (TP) [11] INPUT TI ME SCHEDULE [12] CUT OFF CHECK [13] INPUT TY * Index No. [1] - [9] The values indicate the operating time of each output for the input signal.99 denotes “forever”.
  • Page 94 D OK LV4 [5] Reader#1 I D Error [6] Reader#1 T /S Error [7] Reader#1 APB Error [8] Reader#2 I D OK LV1 [9] Reader#2 I D OK LV2 [10] Reader#2 ID OK LV3 [11] Reader#2 ID OK LV4 [12] Reader#2 ID Error [13] Reader#2 T/S Error...
  • Page 95 Troubleshooting Before requesting RMA, please check the cases below if your problem is one of them. 1 The device dose not communicate with PC. 2 Cards which were being used are not authenticated after executing batch transmissio n of IDs from software to the device. 3 When configuring the device using MASTER ID, suddenly the device goes back to the normal mode.
  • Page 96 In the case of RS232 communication See [Communication] > [1 RS232 Communication Port Connection] of the manual and chec k if the wiring is good. In the case of RS485 communication See [Communication] > [2 RS485 Communication Port Connection] of the manual and chec k if the wiring is good.

  • Page 97: Cards Which Were Being Used Are Not Authenticated After Executing Batch Transmission O F Ids From Software To The Device

    Please check if the communication address is good. Check communication address setting of software and the device. 1. Check if communication ID set in the device is same with communication ID set in a soft ware. [12 Setting Changes] > [1 F1 SETUP MENU] >...

  • Page 98: When Configuring The Device Using Master Id, Suddenly The Device Goes Back To The No Rmal Mode

    If the problem persists, please contact service center. When configuring the device using MASTER ID, sudde nly the device goes back to the normal mode. If you do not input anything for 60 seconds in setting mode, the device goes back to the normal mode.

  • Page 99: The Device Works With Rf Cards While It Does Not Work With Keypad

    The device works with RF Cards while it does not wor k with keypad. Please check if the keypad is set to "NOT USE". The default for the keypad input is "NOT USE". 1. See [12 Setting Changes] > [1 F1 SETUP MENU] >...

  • Page 100: "Schedule Error" Appears On The Lcd When A Card Is Read

    The tamper switch let you know when someone has taken the device off the wall while ● attempting trespass or the device has fallen from the wall due to wrong installation. If the problem persists, please contact service center. "SCHEDULE ERROR" appears on the LCD when a card is read.

  • Page 101: Please Check Reader Assignment Code Set For The Id

    If the problem persists, please contact service center. "ACCESS DOOR ERR" appears on the LCD when a car d is read. Please check reader assignment code set for the ID. Check the Reader assignment code set for the ID of the card from a software and chang ●...

  • Page 102: Please Check Reader Mode Set For The Id

    10.1 Please check reader mode set for the ID. By changing reader mode, you can select how to authenticate when accessing. [12 Setting Changes] >[1 F1 SETUP MENU] > [1.3 Reader #1 Mode] of the manual and select how to authenticate when accessing. READER#1 refers to the built-in proximity reader in the unit.

  • Page 103: Fingerprint Is Not Recognized

    If the problem persists, please contact service center. A fingerprint is not recognized. 12.1 Please check the status of the fingerprint. If something is attached to fingerprint, fingerprint recognition may not work properly. ● → Remove it. If a fingerprint has a scar, fingerprint recognition may not work properly. ●...
  • Page 104 If the problem persists, please contact service center. p.96 Troubleshooting...

  • Page 105: Fcc Registration Information

    FCC REGISTRATION INFORMATION FCC Requirements Part 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the e quipment. NOTE: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions;...
