Summary of Contents for IDTECK iPASS IP-RFL200
-
Page 2: Table Of Contents
Table of Contents ............Table of Contents . - Page 3 ......15 7 When a product is initialized by using a master card .
-
Page 4: Safety Information
Safety Information CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIE D SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is pres ent within this unit. - Page 5 3. Do not connect multiple controllers to a single adapter. Exceeding the capacity may cau se abnormal heat generation or fire. 4. Securely plug the power cord into the power receptacle. Insecure connection may caus e fire. 5. When installing the controller, fasten it securely and firmly. The fall of controller may ca use personal injury.
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s ins tructions. -
Page 7: General

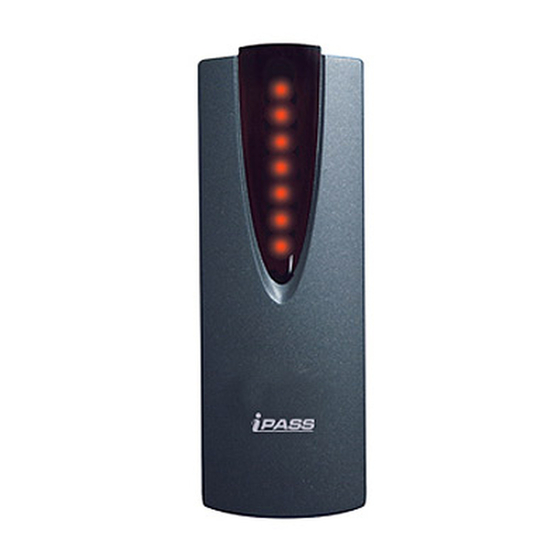

General The Star RFL200 / iPASS IP-RFL200 is an elegant looking and an attractive 4" read range pro ximity reader built-in Proximity Single Door Access Controller which can be mounted to a m etal door frame (mullion) or to any flat wall surface. The Star RFL200 / iPASS IP-RFL200 is epoxy potted that ensure you a successful operation even i n harsh environments. -
Page 8: Features
Features 125KHz Standalone Proximity Access Controller ● Star RFL200: PSK Modulation ● iPASS IP-RFL200: ASK[EM] Format 512 Users including One Master Card ● Standalone (No need application software) ● Direct Control of Door Lock ● Power Fail Safe or Power Fail Secure Locks selectable ●... -
Page 9: Identifying Supplied Parts
Identifying Supplied Parts Please unpack and check the contents of the box. -
Page 10: Specification
Specification Model RFL200 IP-RFL200 Dual 8bit Microprocessor 64KByte Flash ROM Memory Program Memory 4KByte EEPROM Data Memory 512 Users (Including 1 Master Card) User IDC80 / IDC170: Up to 4 inches IPC80 / IPC170: Up to 4 inches Range (10cm) (10cm) 30ms Reading Time (Card) - Page 11 Life Time Warranty FCC, CE, KC Certification Reading of key fob-type tags may not work properly at temperatures below 0°C or 32°F...
-
Page 12: Installation
Installation 1. Drill one 0.5”(12.7mm) hole at the central of the RFL200 / IP-RFL200 on mullion or wall mount. Route the cable of reader module through the central hole. 2. Drill one 0.39"(10mm) in right horizontal and 1.74"(44.4mm) in upper vertical through the central hole. -
Page 13: Color Coded & Wiring Table
Color Coded & Wiring Table p.10... -
Page 14: Wire Connection To Controller
Wire Connection to Controller Select lock type as shown below. Power Fail Safe Mode (Always open at power off) : Connect lock type of Yellow with Black wire. Power Fail Secure Mode (Always close at power off) : Disconnect lock type of Yellow wire. Connecting a power supply p.11... -
Page 15: Connecting A Door Lock
Connect +12V of power supply to Red wire. ● Connect GND of power supply to Black wire. ● Connecting a door lock Connect (+) wire of door lock to +12V wire of power supply. ● Connect (-) wire of door lock to white wire of reader module. ●... -
Page 16: Operation
Operation When power is supplied 1. All LEDs display red or green. Then they repeat on/off twice and become off. 2. As LED off, red LED turns on from the under to the top in order. And all LEDs turn red. 3. -
Page 17: If Key Tag Is Approached By Rfl200 / Ip-Rfl200 When The Door Is Opened
1. All LEDs turn red. Then they repeat on/off twice and become on. 2. RFL200 / IP-RFL200’s buzzer sounds twice. If key tag is approached by RFL200 / IP-RFL200 when t he door is opened. 1. The upper of two LEDs still display green color. It means that open the door. With the rest of LEDs, they indicate whether authentication or not (refer to 9.2 and 9.3). -
Page 18: When A Product Is Initialized By Using A Master Card
the lost or the change of a master card. 1. As power off, they make purple and blue wire close. 2. As power on, all LEDs turn red color with beeping twice. Then they repeat twice and become on. At this time, a master card is deleted. 3. -
Page 19: When A Product Is Initialized By Wiring The Cable
When a product is initialized by wiring the cable 1. As power off, make white, green and yellow wire are close. 2. As power on, all LEDs turn red or green color. After repeating on/off twice, they becom e off. 3. -
Page 20: Fcc Registration Information
FCC REGISTRATION INFORMATION FCC Requirements Part 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the e quipment. NOTE: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions;... -
Page 21: Rma Request
RMA Request If you have any questions or problems regarding the RMA services, please contact us using t he contact information below. Friendly representatives at IDTECK are always standing by to provide the best after sales services. IDTECK Headquarter 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong,...
