Installation Guide
1.1 Ultrastar Data60 Description

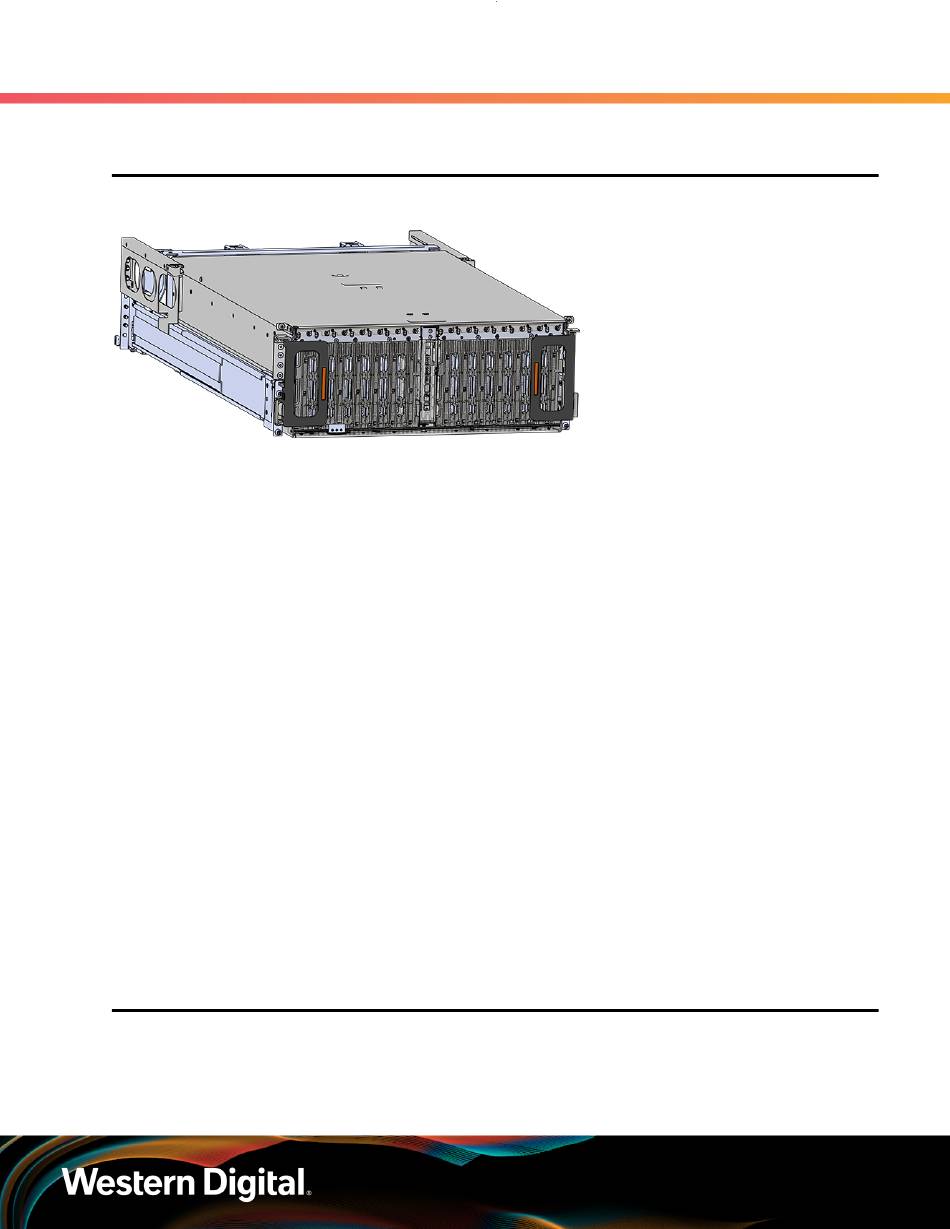

Figure 2: Ultrastar Data60
The Ultrastar Data60 is a 4U form factor, high availability, high density, rack-mounted storage enclosure
that is capable of hosting up to 60 SAS or SATA drives. The maximum data storage capacity of the Ultrastar
Data60 is 840 TB using 14TB HGST Ultrastar® HC530 drives . (For a full list of compatible drives and total
storage capacities, see the
of 200 - 240 VAC and consumes ~1000W of power under typical conditions. It requires a maximum of
~1250W at full load.
It is designed to fit within a 4U rack space and requires 900mm (35.43in.) usable rack space, frame to frame.
A fully loaded system will add 79.4 kg. / 175 lbs. of static load when fully loaded with drives.
• 4U Storage Enclosure
• Supports up to 60 Drives
• Can support 3.5" drives and 2.5" SSD drives (2.5" requires an adapter) in the 60 available drive bays.
• Up to 12W per drive slot for the 60 data storage drives (Cannot exceed 85A on the 5V rail)
• House and control four (4) N+1 redundant 80mm rear fans
• House and control a dual rotor 40mm internal IOM Fan
• Controlled by two (2) redundant I/O Modules
• Powered by two (2) redundant 1600W PSUs
• Supports High Line (220-240 VAC) Input Power
• Full high availability with independent dual paths to all HDDs
• Toolless replacement of all Customer Replaceable Units (CRUs)
• Fits within a standard EIA-310 rack including all necessary cable management (see
Hardware Configuration (page
• Supports up to 3m passive SAS cables (limited to 3m or less) or active cables (any length) (see
Cabling (page
1.2 Ultrastar Data60 Layout
1. SATA based models will only include 1 IOM
List of Compatible Drives (page
7))
60))

1.1 Ultrastar Data60 Description

9).) The enclosure runs on an input voltage
1
1. Overview
Compatible Rack
SAS
2
