SaMASZ SAMBA 160 Operator's Manual

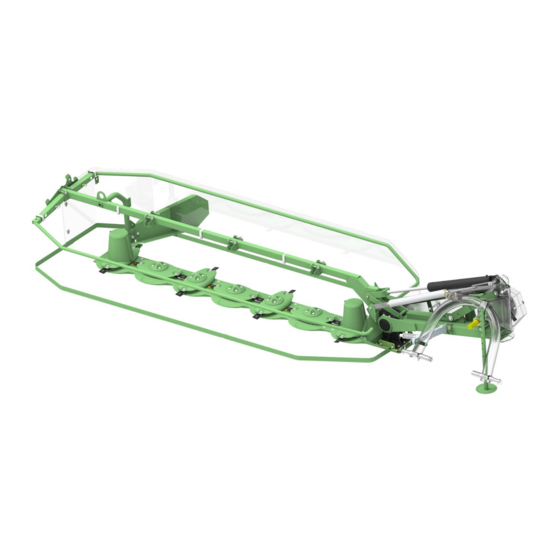

Lightweight, rear disc mower
Hide thumbs Also See for SAMBA 160:
Table of Contents

Advertisement

Quick Links

SaMASZ Sp. z o.o.
Poland, 16-060 Zabłudów, ul. Trawiasta 1
Established – 1984
NIP PL-966-159-29-76
tel. (+48) (85) 664 70 31
fax (+48) (85) 664 70 41
e-mail: samasz@samasz.pl
www.samasz.pl
OPERATOR'S MANUAL
LIGHTWEIGHT, REAR DISC
MOWER
SAMBA 160 – 1.6 m / 5' 3"
SAMBA 200 – 2.0 m / 6' 7"
SAMBA 240 – 2.4 m / 7' 10"
SAMBA 280 – 2.8 m / 9' 2"
SAMBA 320 – 3.2 m / 10' 6"
IN0670EN003
Nr. Serial no.
2020.01.09
EDITION NO. 3
The original instruction
– ENGLISH –
