OPERATOR'S MANUAL

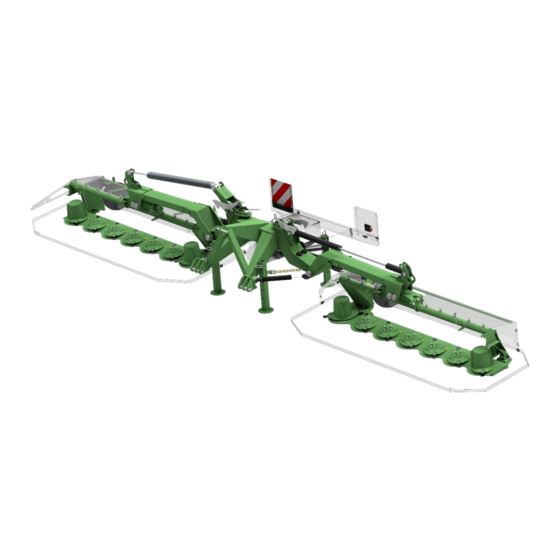

DOUBLE-SIDED MOWER
WITH CENTRAL SUSPENSION
KDD 861 (H)
KDD 911 (H)
KDD 912 (H)
KDD 941 (H)
The original operator's manual
KDD 861 S/SL/W (H)
KDD 941 S/SL/W (H)
KDD 861 S/SL/W T (H)
KDD 941 S/SL/W T (H)
ENGLISH
SaMASZ Sp. z o.o.
tel. (+48) (85) 664 70 31
ul. Trawiasta 1
fax (+48) (85) 664 70 41
16-060 Zabłudów
e-mail: samasz@samasz.pl
Polska
www.samasz.pl
Serial number
IN272EN010
2020.06.05
EDITION No. 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDD 861 and is the answer not in the manual?

Questions and answers

Ghislain montpetit
May 12, 2025

Hi m’y remote on my kdd941h perfect cut Only show 4 red straith bar. Do you know what is thé problem
