NOTE:
Most of the listed hardware has been packaged separately, but some of them have
been preinstalled in the identified assembly parts. In these instances, simply remove
and reinstall the hardware as assembly is required.
Please refer the individual steps for the installation and pay attention to the
preinstalled hardware.

ASSEMBLY INSTRUCTION

It is well suggested that two or more people to assemble this machine to
NOTE:
avoid any possible injury.
Remove all the security tape and wrapping before the installation.

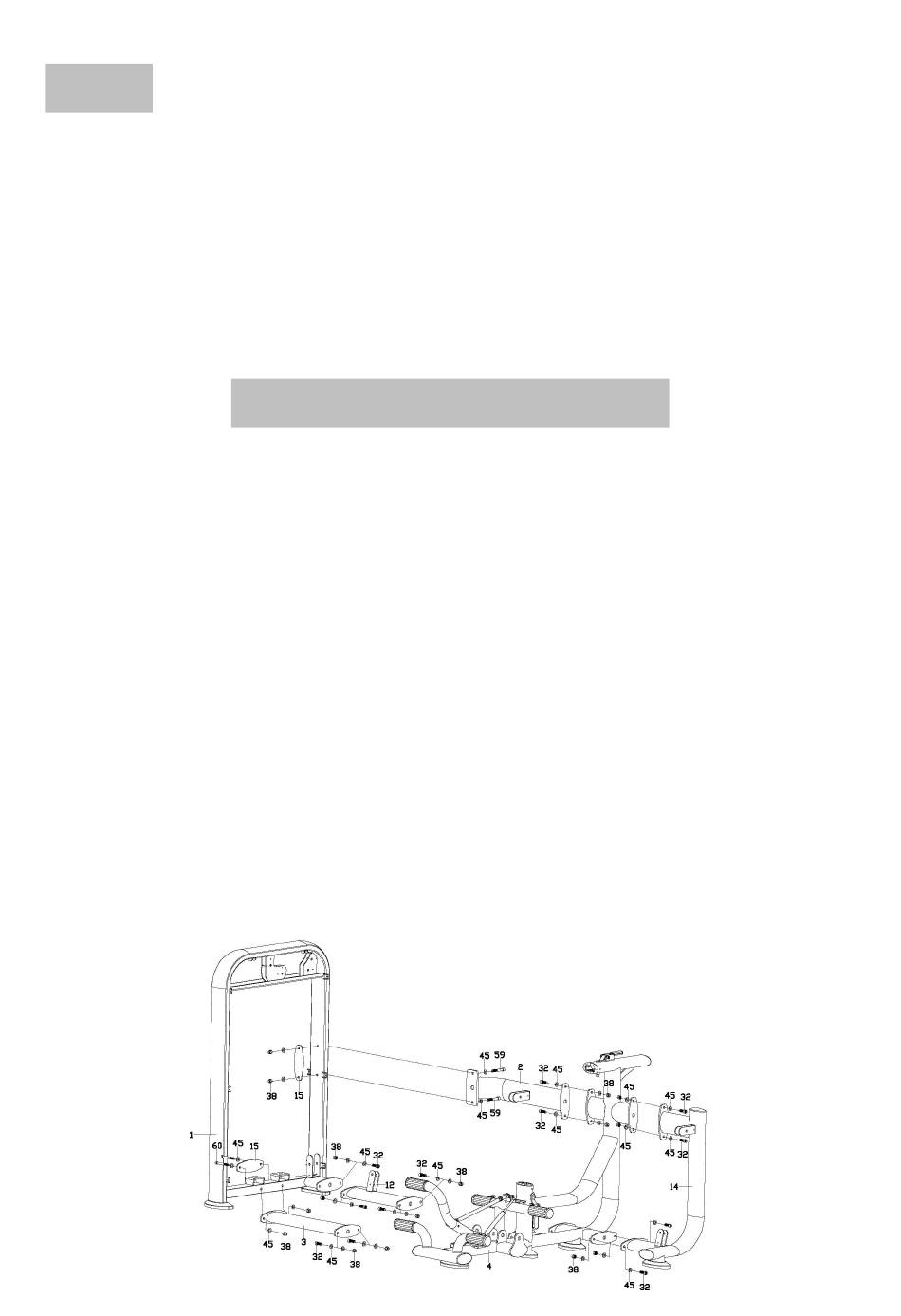

Step 1
1. Attach Fixed frame (14) to Main seat support (4) with Inner hexagon head screw (32), Flat
washer (45) and Nylon nut (38)
2. Attach Middle connecting frame (3), Downside horizontal frame (12) and Upper horizontal frame
(2) to Main seat support (4) with Inner hexagon head screw (32), Flat washer (45) and Nylon nut
(38)
3. Attach Middle connecting frame (3), Downside horizontal frame (12) and Upper horizontal frame
(2) to (1) with Inner hexagon head screw (60&32&59), Flat washer (45), Nylon nut (38)
Weight frame
and Junction plate (15)
4. Lock all the screws tightly.
