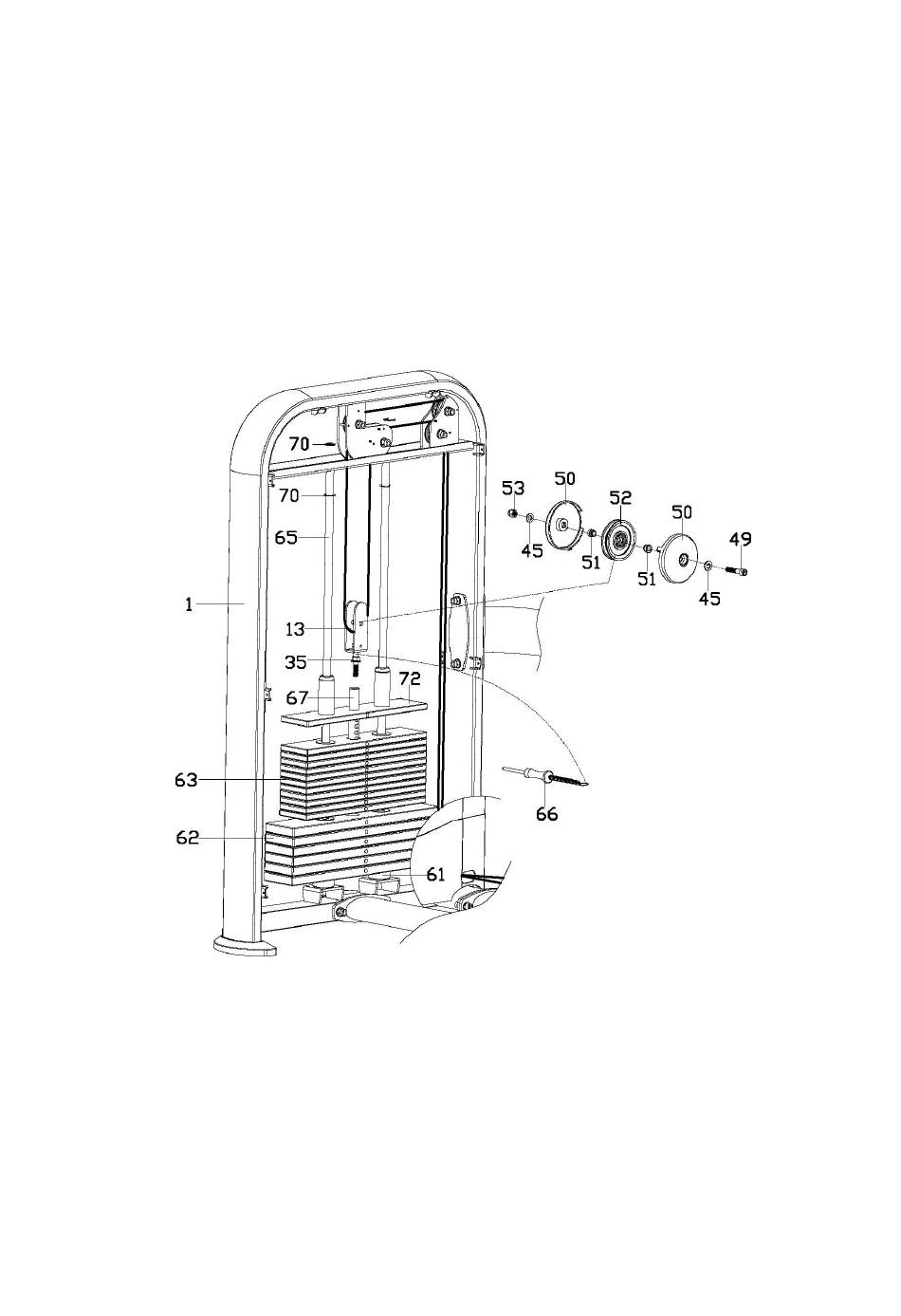

Step 5
1. Install Cushion (61), Guide rod (65), Weight plate (10kg) (62), Weight plate (5kg) (63) and Top
plate (5kg) (72) to Weight frame (1)
2. Fix Guide rod (65) to Weight frame (1) with E Circlip (70)
3. Paste sticker on Weight plate (10kg) (62) and Weight plate (5kg) (63), as order of small to big
and top to bottom
4. Insert end ring of Selector pin with wire (66) to the screw of U bracket (13), screw on Flange
nut (35) , and screw U bracket (13) to Selector rod (67) finally.
5. Lock Pulley cover (50), Alloy sleeve (51)and Pulley (52) to U bracket (13) with Inner hexagon
head screw (49), Flat washer (45) and High cap nut (53)
6. Pre-insert Selector pin with wire (66) to weight plate and Selector rod (67)
