Step 2

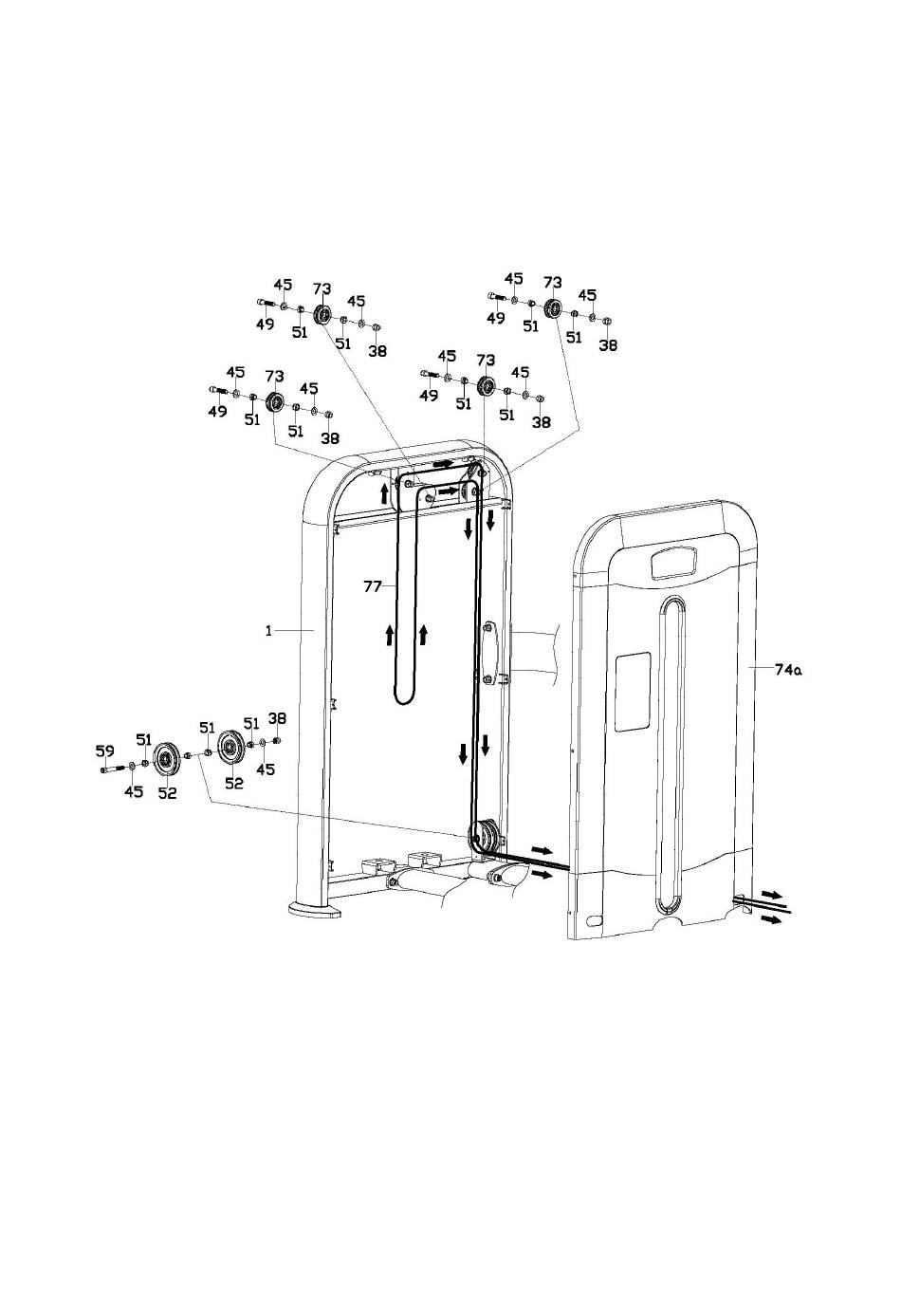

1. Install the Cable (77) in the direction of arrow as shown in below drawing. After winding
Weight
(1), Cable(77) ends must through small hole on bottom right corner of
(74a)
frame
Front shroud
2. Lock Alloy sleeve (51) and Aluminum pulley (73) to the top end of Weight frame (1) with Inner
hexagon head screw (49), Flat washer (45) and Nylon nut (38)
3. Lock Alloy sleeve (51) and Pulley (52) to Weight frame (1) with Inner hexagon head screw (59),
Flat washer (45) and Nylon nut (38)
- 7 -
