Assembly Instruction - Cortex Omega SDT-10 Owner's Manual

NOTE:
Most of the listed hardware has been packaged separately, but some of them have
been preinstalled in the identified assembly parts. In these instances, simply remove
and reinstall the hardware as assembly is required.
Please refer the individual steps for the installation and pay attention to the
preinstalled hardware.

ASSEMBLY INSTRUCTION

It is well suggested that two or more people to assemble this machine to
NOTE:
avoid any possible injury.
Remove all the security tape and wrapping before the installation.

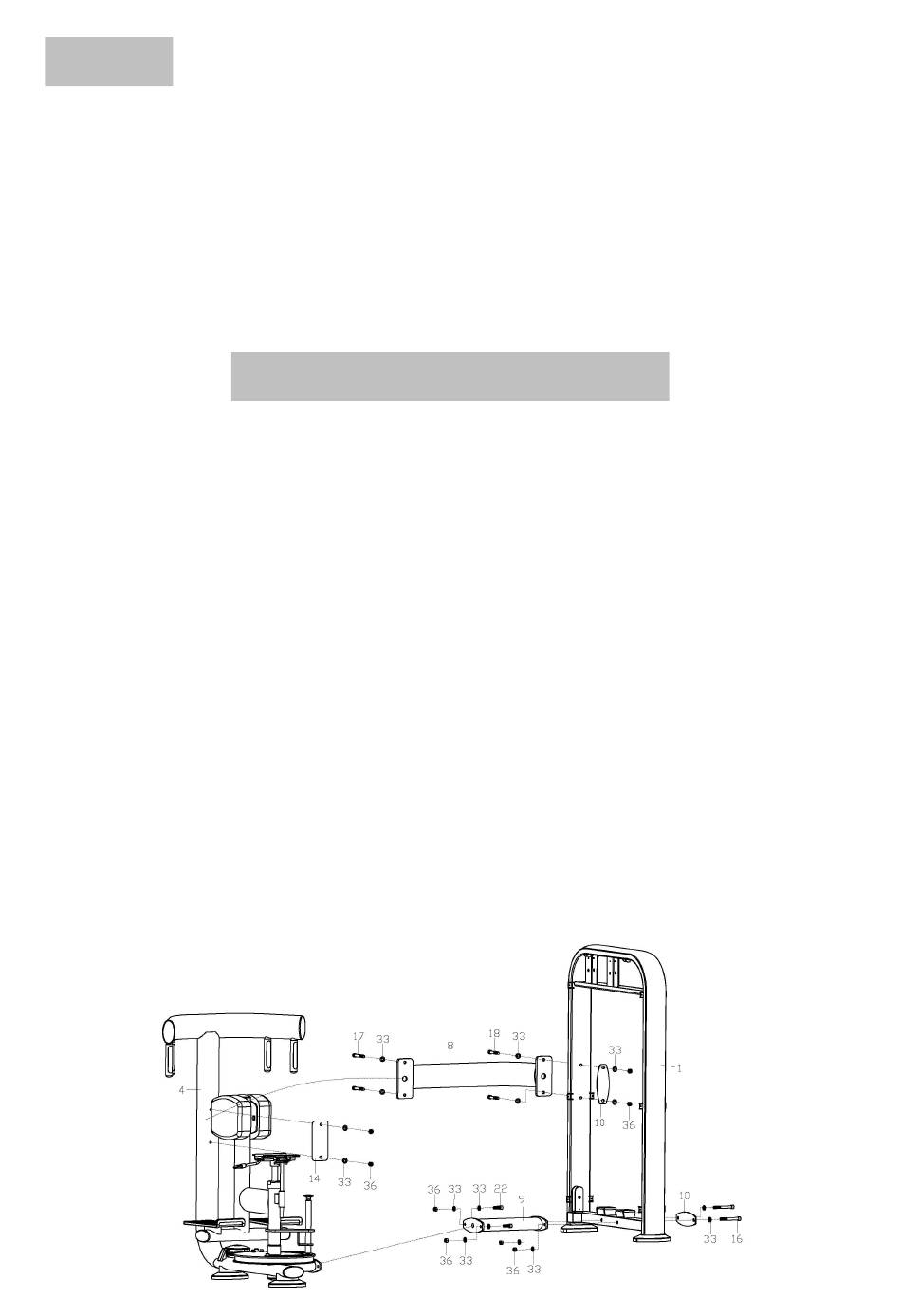

Step 1
1. Pre lock the Lower horizontal frame (9) on the weight frame (1) with Hexagon socket head screw
(16), Flat washer (33), Junction plate 1 (10) and Nylon nut (36).
2. Pre lock the Lower horizontal frame (9) on the main frame (4) with Hexagon socket head screw
(22), Flat washer (33) and Nylon nut (36).
3. Pre lock the Upper horizontal frame (8) on the main frame (4) with Hexagon socket head screw
(17), Flat washer (33), Junction plate 2 (14) and Nylon nut (36).
4. Pre lock the Upper horizontal frame (8) on the weight frame (1) with Hexagon socket head screw
(18), Flat washer (33), Junction plate 1 (10) and Nylon nut (36).
5. Lock all the screws tightly.
