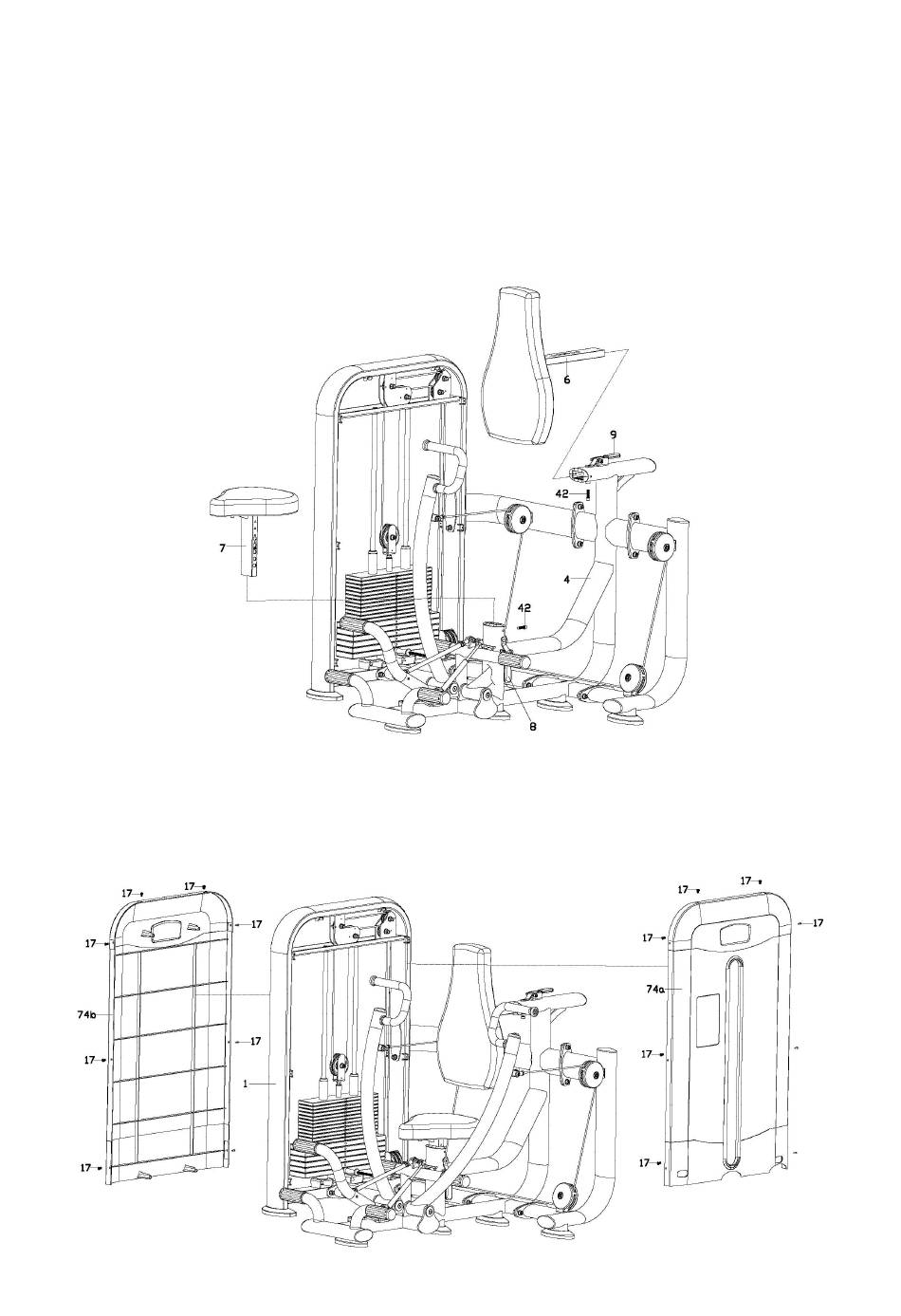

Step 6
1. Unscrew Inner hexagon head screw (42), press down Handle 1 (9) and then insert Back pad
frame (6) to Main seat support (4). Screw on Inner hexagon head screw (42) back to Main
seat support (4) finally.
2. Unscrew Inner hexagon head screw (42), press down Handle 2 (8) and then insert Seat frame
(7) to Main seat support (4). Screw on Inner hexagon head screw (42) back to Main seat
support (4) finally.
Step 7
Fix front and back shroud (74a/b) to Weight frame (1) tightly with Phillips head screw (17)
- 11 -
